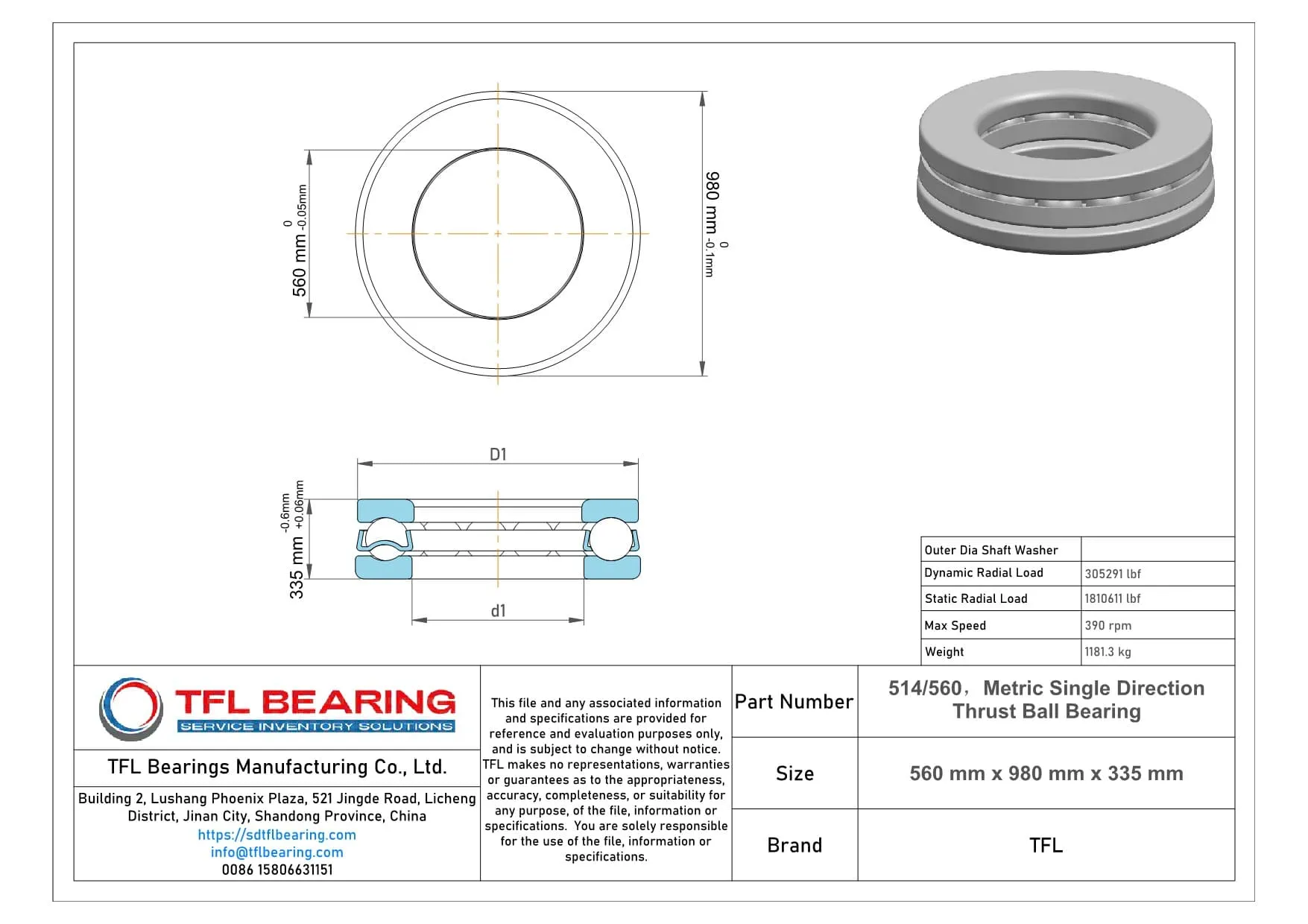

The 514/560 is a large single-direction thrust ball bearing with a 560mm bore and 980mm outer diameter, crafted from tough 52100 chrome steel. It manages heavy thrust loads up to 305291 lbf and operates at speeds up to 390 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable option for replacements. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.
Weighing 1181.3kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 514/560 Bearing
514/560 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 305291 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, reducing friction and enhancing longevity.
With a maximum speed of 390 rpm, it delivers steady performance under substantial pressure.
514/560 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring smooth operation over extended periods.
The precise bore and outer diameter tolerances contribute to reliable installation and performance.
Weighing 1181.3 kg, it is designed for stability and durability in large-scale machinery.
Industrial Uses of 514/560 Bearing
514/560 Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its high thrust load capacity is essential. The open design simplifies lubrication, which is crucial for maintaining performance in demanding industrial settings.
Where Is 514/560 Bearing Used?
You’ll often find 514/560 Bearing in wind turbine systems, where its ability to handle substantial axial loads ensures reliable operation. The chrome steel construction also makes it suitable for environments with high wear and tear.
Built for Heavy-Duty Use: 514/560 Bearing
514/560 Bearing excels in applications like mining equipment, where durability and load-bearing capacity are top priorities. Its metric sizing ensures compatibility with a variety of large-scale machinery across different industries.
Automotive vs Aerospace: Applications of 514/560 Bearing
While 514/560 Bearing isn’t typically used in aerospace due to its size, it’s a staple in heavy automotive systems like truck transmissions. The bearing’s robust design handles the intense thrust loads found in these applications.
Practical Applications of 514/560 Bearing
In marine equipment, 514/560 Bearing supports propeller shafts and other critical components, thanks to its resistance to corrosion and high static thrust load capacity. The need for regular lubrication is easily managed in these settings.
