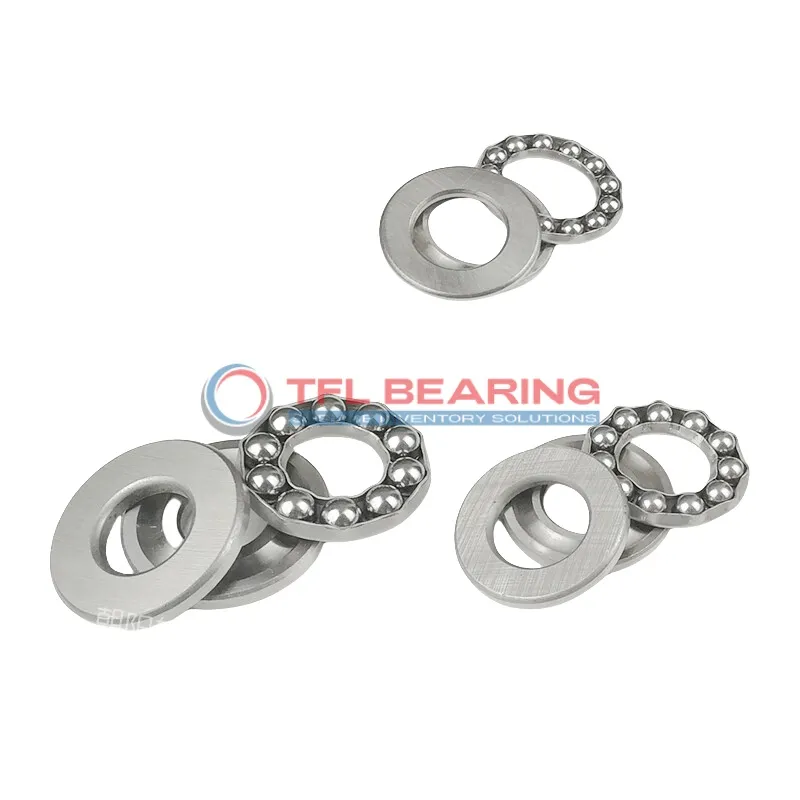

The 51316 is a single-direction thrust ball bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 35775 lbf and operates smoothly at speeds up to 2400 RPM.
Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large gearboxes where high thrust loads are expected.
Weighing 2.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Why Choose 51316 Bearing for Precision Tasks?
51316 Bearing is crafted from 52100 chrome steel, ensuring durability and resistance to wear in thrust applications.
Its dynamic thrust load capacity of 35775 lbf makes it suitable for demanding industrial environments.
The stainless steel cage maintains ball alignment, contributing to smooth and efficient operation.
With a maximum speed of 2,400 rpm, it balances performance and reliability.
How Is 51316 Bearing Engineered for Reliability?
51316 Bearing features precise dimensions with a bore diameter of 80 mm and an outer diameter of 140 mm, ensuring accurate fitment.
The chrome steel construction enhances its ability to handle static thrust loads up to 87750 lbf.
Its open seal design allows for easy lubrication, reducing maintenance requirements.
Operating within a temperature range of -30° to 110°C, it performs reliably in various conditions.
Built for Durability: 51316 Bearing
51316 Bearing’s robust design includes a stainless steel cage for improved longevity and reduced friction.
The 52100 chrome steel rings and balls provide excellent resistance to wear and tear.
With a width of 44 mm, it offers stability and support in heavy-load applications.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.
Industrial Uses of 51316 Bearing
51316 Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles axial forces effectively. The open seal design simplifies lubrication checks, ideal for industrial maintenance routines.
Where Is 51316 Bearing Used?
In automotive applications, 51316 Bearing fits well in heavy-duty gearboxes and clutch mechanisms, thanks to its robust chrome steel construction. The metric sizing ensures compatibility with European commercial vehicle designs.
Built for Heavy-Duty Use: 51316 Bearing
For wind turbine yaw systems, 51316 Bearing’s static load rating of 87750 lbf provides stability in variable wind conditions. Its stainless steel cage resists corrosion in outdoor environments.
Medical vs Industrial: Where 51316 Bearing Excels
While not typical for medical devices, 51316 Bearing shines in industrial settings like steel rolling mills, where its 44mm width accommodates high-stress axial loads. The temperature range suits most factory conditions.
Automation & Robotics: 51316 Bearing in Action
In automated assembly lines, 51316 Bearing supports heavy rotary tables that require precise axial positioning. The 140mm outer diameter offers a stable footprint for repetitive motion tasks.
