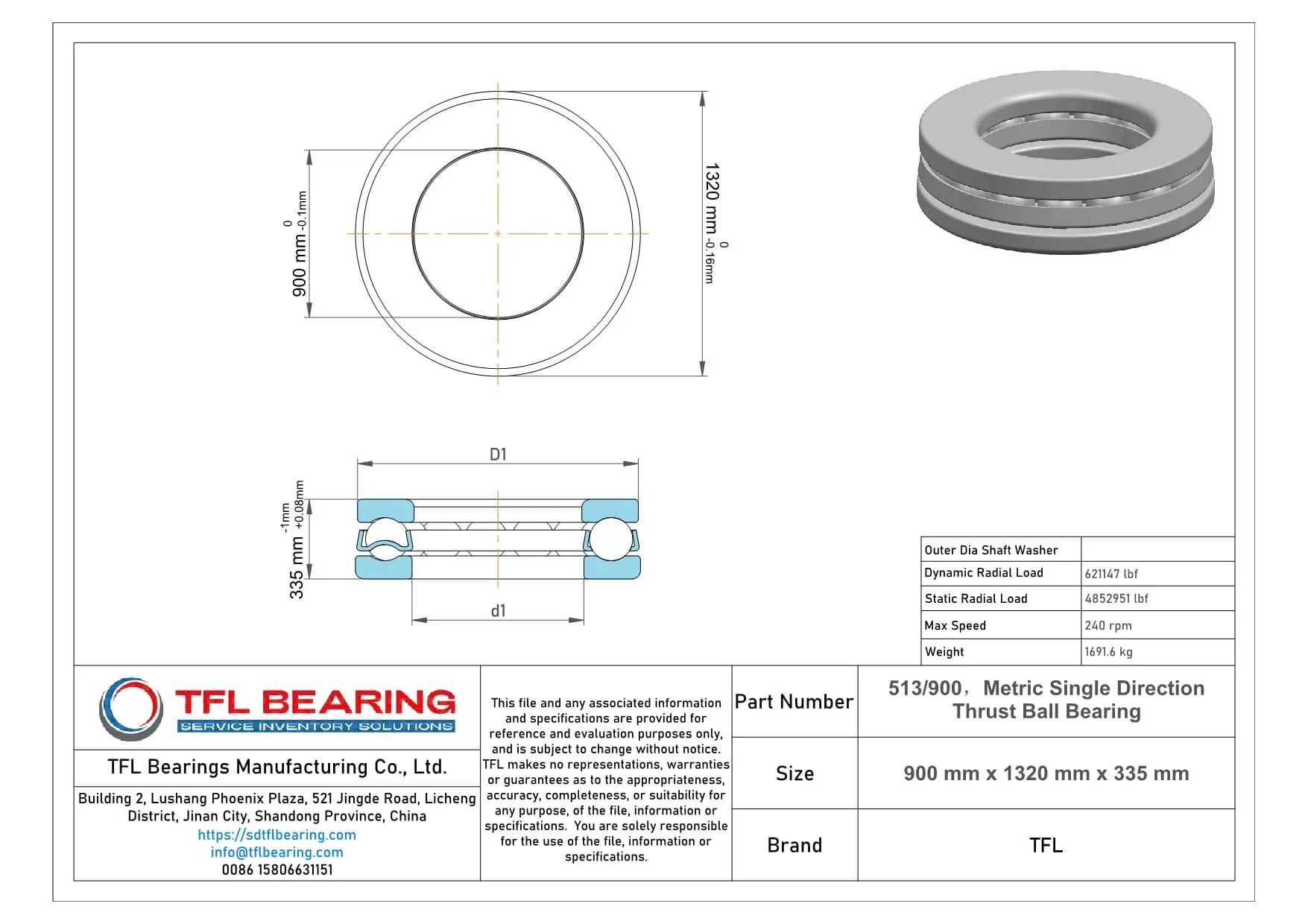

The 513/900 is a large single-direction thrust ball bearing with a 900mm bore and 1320mm outer diameter, crafted from sturdy 52100 chrome steel. It manages hefty thrust loads up to 621147 lbf and operates at speeds up to 240 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable option for replacements. Suited for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.
Weighing 1691.6kg, it’s built for robustness in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 513/900 Bearing
513/900 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 621,147 lbf, making it suitable for heavy-duty applications.
The chrome steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 240 rpm, it delivers steady performance in demanding conditions.
513/900 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over extended periods.
Industrial Uses of 513/900 Bearing
The 513/900 Bearing is commonly used in heavy machinery, such as large-scale hydraulic presses and industrial turbines, where its high load capacity handles significant axial forces. Its open design simplifies lubrication, ensuring long service life in demanding conditions.
In wind turbine applications, 513/900 Bearing supports the main shaft, providing stability under varying wind loads. The chrome steel construction ensures durability, even in harsh outdoor environments.
For mining equipment, 513/900 Bearing excels in conveyor systems and crushers, where its robust design withstands constant heavy loads. The metric dimensions make it a reliable choice for global machinery standards.
Automotive vs Aerospace: Applications of 513/900 Bearing
In automotive testing rigs, 513/900 Bearing handles extreme thrust loads during engine and transmission evaluations. Its precision tolerances ensure accurate performance measurements.
Aerospace applications, such as landing gear systems, benefit from 513/900 Bearing’s ability to manage high static loads. The temperature resistance makes it suitable for diverse operational conditions.
Built for Heavy-Duty Use: 513/900 Bearing
The 513/900 Bearing is ideal for steel mills, where it supports rolling mill stands under intense pressure. Its chrome steel components resist wear, reducing maintenance downtime.
In shipbuilding, 513/900 Bearing is used in propeller shaft systems, offering reliable performance in corrosive marine environments. The large bore diameter accommodates heavy shafts with ease.
