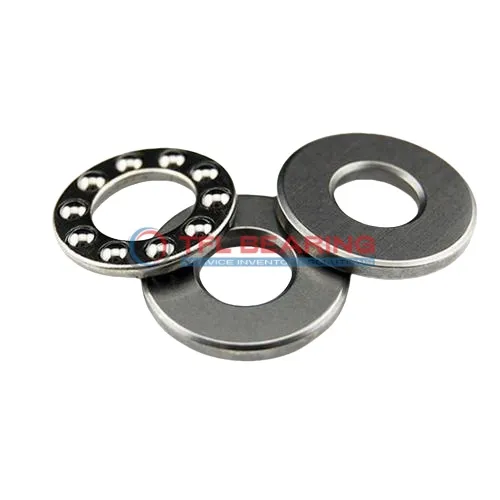

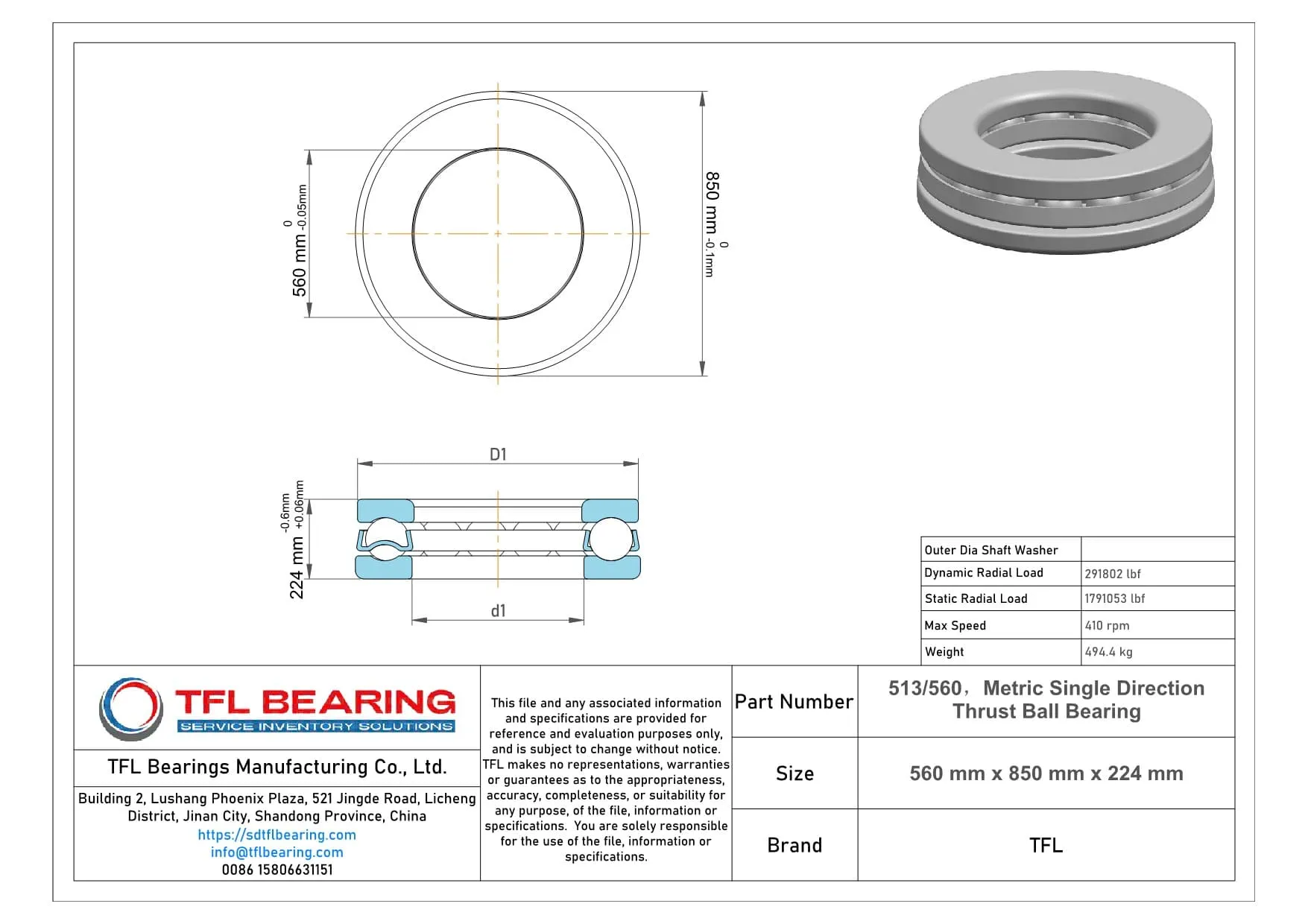

The 513/560 is a large single-direction thrust ball bearing with a 560mm bore and 850mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 291802 lbf, though its max speed is limited to 410 RPM due to its size.
Its open design requires regular lubrication, but the chrome steel cage ensures durability under stress. The bearing operates reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Perfect for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.
Weighing 494.4kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s safe for various industrial environments.
"*" indicates required fields
How Does 513/560 Bearing Handle Heavy Loads?
513/560 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to extreme thrust loads.
Its dynamic thrust load capacity reaches 291802 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, enhancing durability and reducing friction.
With a maximum speed of 410 rpm, it delivers reliable performance under high-stress conditions.
Key Fields for 513/560 Bearing
The 513/560 Bearing is commonly used in heavy industrial equipment like large presses and rolling mills, where its high thrust load capacity handles significant axial forces. Its open design simplifies lubrication, ensuring long service life in demanding conditions.
In wind turbine systems, 513/560 Bearing supports the main shaft, providing stability under varying wind loads. The chrome steel construction offers excellent wear resistance, crucial for continuous operation in harsh environments.
For marine applications, 513/560 Bearing is found in propeller shafts, where its durability and corrosion resistance are essential. The large bore diameter makes it suitable for heavy-duty marine machinery requiring reliable thrust support.
Automotive vs Aerospace: Applications of 513/560 Bearing
In automotive testing rigs, 513/560 Bearing handles extreme axial loads during durability tests. Its precise tolerances ensure accurate performance measurements under controlled conditions.
Aerospace ground support equipment also benefits from 513/560 Bearing’s robust design. The bearing’s ability to withstand high static loads makes it ideal for aircraft maintenance platforms and loading systems.
