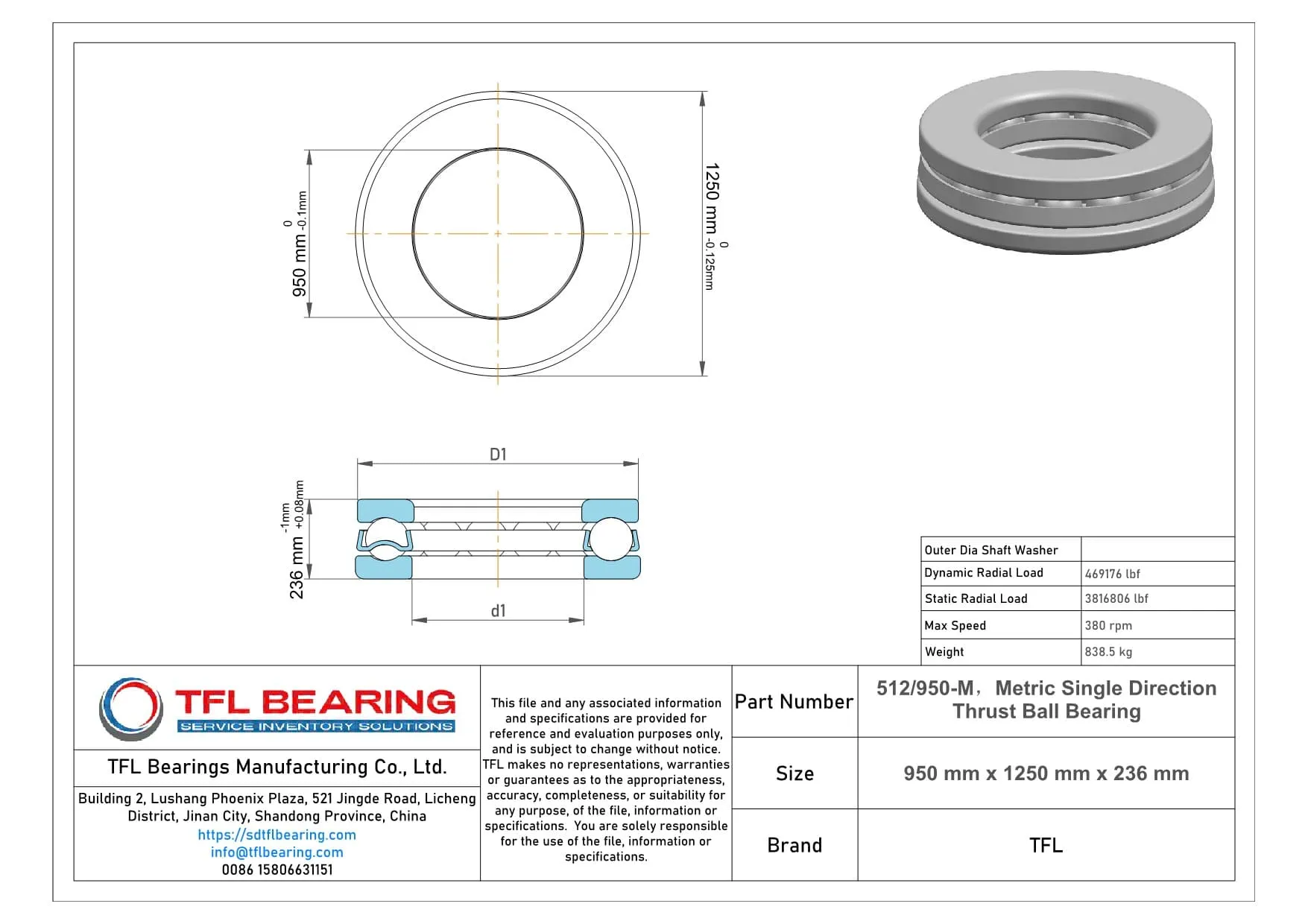

The 512/950-M is a large single-direction thrust ball bearing, measuring 950mm in bore diameter and 1250mm in outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 469176 lbf and operates at speeds up to 380 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical solution for replacements. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.
Weighing 838.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.
"*" indicates required fields
Performance Features of 512/950-M Bearing

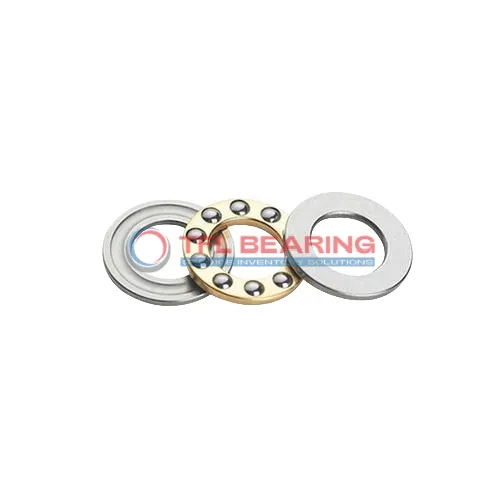

512/950-M Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to heavy thrust loads.
Its dynamic thrust load capacity reaches 469176 lbf, making it suitable for demanding industrial applications.
The chrome steel cage ensures proper ball alignment, reducing friction and wear during operation.
With a maximum speed of 380 rpm, it provides reliable performance in low-speed, high-load scenarios.
512/950-M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its robust construction and precise tolerances ensure long service life with minimal maintenance.
Industrial Uses of 512/950-M Bearing
512/950-M Bearing is commonly used in heavy machinery, such as large presses and industrial turbines, where its high load capacity handles significant axial forces. The open design simplifies lubrication, ensuring smooth operation in demanding environments.
Where Is 512/950-M Bearing Used?
You’ll often find 512/950-M Bearing in wind turbine systems, supporting the main shaft where reliability under heavy thrust loads is essential. Its chrome steel construction offers durability in outdoor and high-stress conditions.
Built for Heavy-Duty Use: 512/950-M Bearing
512/950-M Bearing excels in mining equipment, like crushers and conveyors, where its robust design withstands constant heavy loads. The metric sizing ensures compatibility with large-scale industrial machinery.
Automotive vs Aerospace: Applications of 512/950-M Bearing
In automotive testing rigs, 512/950-M Bearing manages extreme axial loads during durability tests. While not typical in aerospace, it’s occasionally used in ground support equipment for its reliability.
Practical Applications of 512/950-M Bearing
512/950-M Bearing is ideal for hydropower systems, where its static thrust load capacity supports turbine operations. The wide temperature range makes it suitable for varying environmental conditions.
