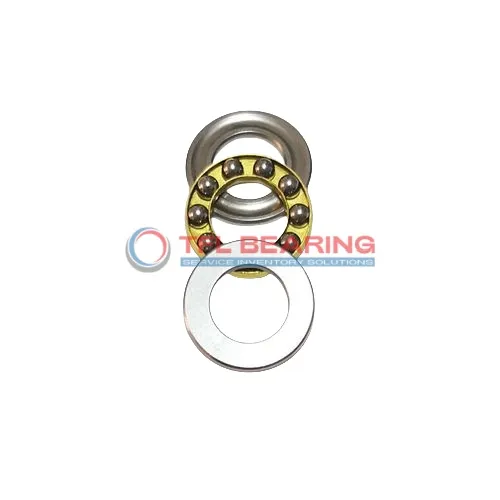

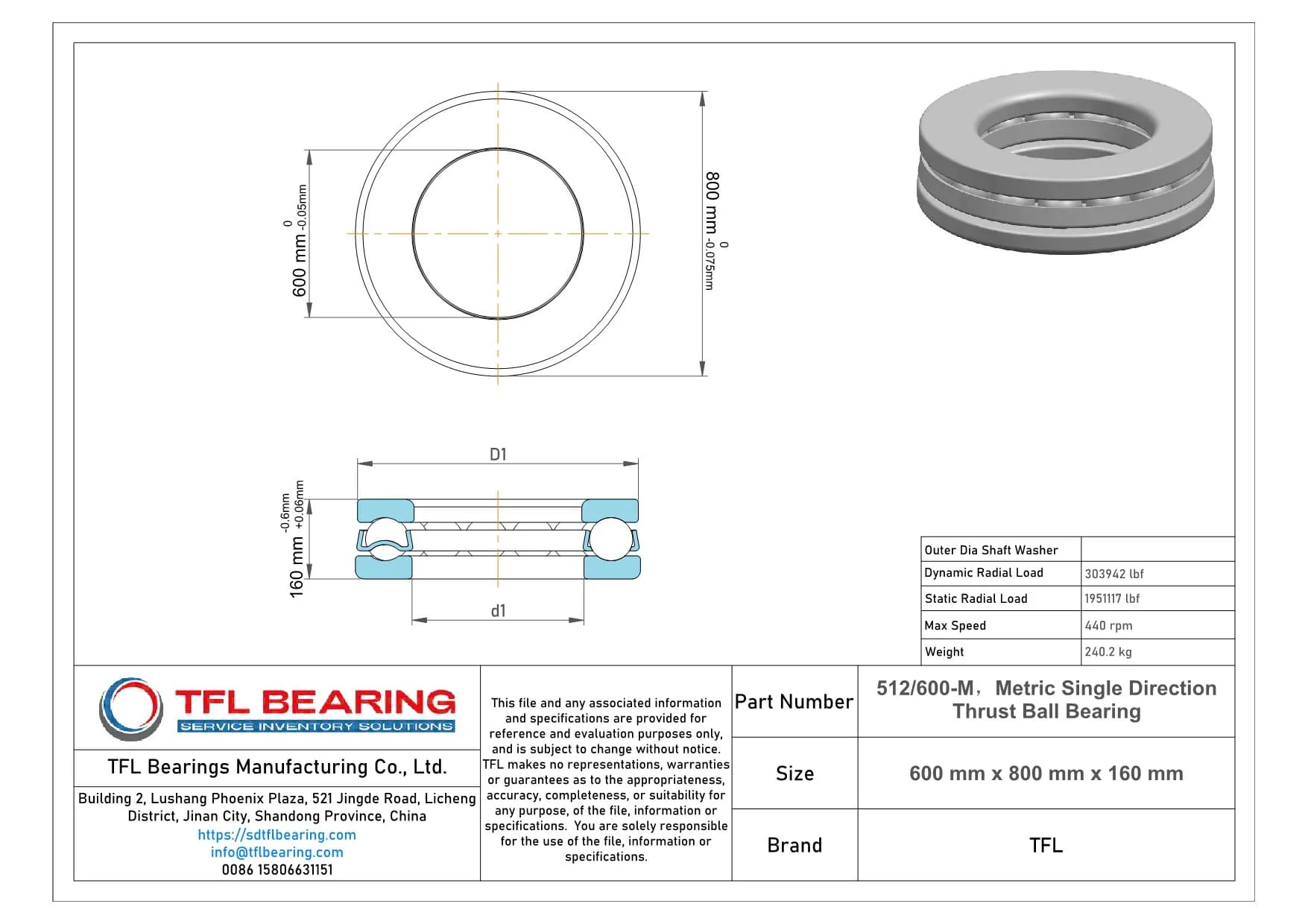

The 512/600-M is a large single-direction thrust ball bearing with a 600mm bore and 800mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 303942 lbf and operates at speeds up to 440 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. Suitable for temperatures ranging from -30°C to 110°C, it’s built for tough conditions.
This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.
Weighing 240.2kg, it’s a robust component designed for long-term performance. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.
"*" indicates required fields
Performance Features of 512/600-M Bearing
512/600-M Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 303942 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, reducing friction and extending operational life.
With a maximum speed of 440 rpm, it provides reliable performance in low-speed, high-load scenarios.
512/600-M Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its open design simplifies lubrication, ensuring smooth operation even under demanding conditions.
Key Fields for 512/600-M Bearing
512/600-M Bearing is commonly used in heavy industrial applications like large presses and hydraulic systems, where its high thrust load capacity handles significant axial forces. The open design simplifies lubrication, ensuring long service life in demanding conditions.
In wind turbine systems, 512/600-M Bearing supports the main shaft, providing stability under varying wind loads. Its chrome steel construction offers durability in outdoor environments with temperature fluctuations.
For mining equipment, 512/600-M Bearing’s robust design makes it suitable for conveyors and crushers, where reliability is key. The metric sizing ensures compatibility with international machinery standards.
Automotive vs Aerospace: Applications of 512/600-M Bearing
In automotive testing rigs, 512/600-M Bearing handles extreme axial loads during component endurance tests. Its precision tolerances ensure accurate data collection under controlled conditions.
Aerospace ground support equipment relies on 512/600-M Bearing for heavy lifting platforms. The bearing’s static load capacity makes it ideal for stationary load-bearing applications.
Built for Heavy-Duty Use: 512/600-M Bearing
512/600-M Bearing excels in steel mill roller tables, where its width tolerance accommodates thermal expansion. The chrome steel cage maintains structural integrity under continuous high loads.
In shipbuilding turntables, 512/600-M Bearing facilitates smooth rotation of heavy components. Its corrosion-resistant materials perform well in marine environments with proper maintenance.
