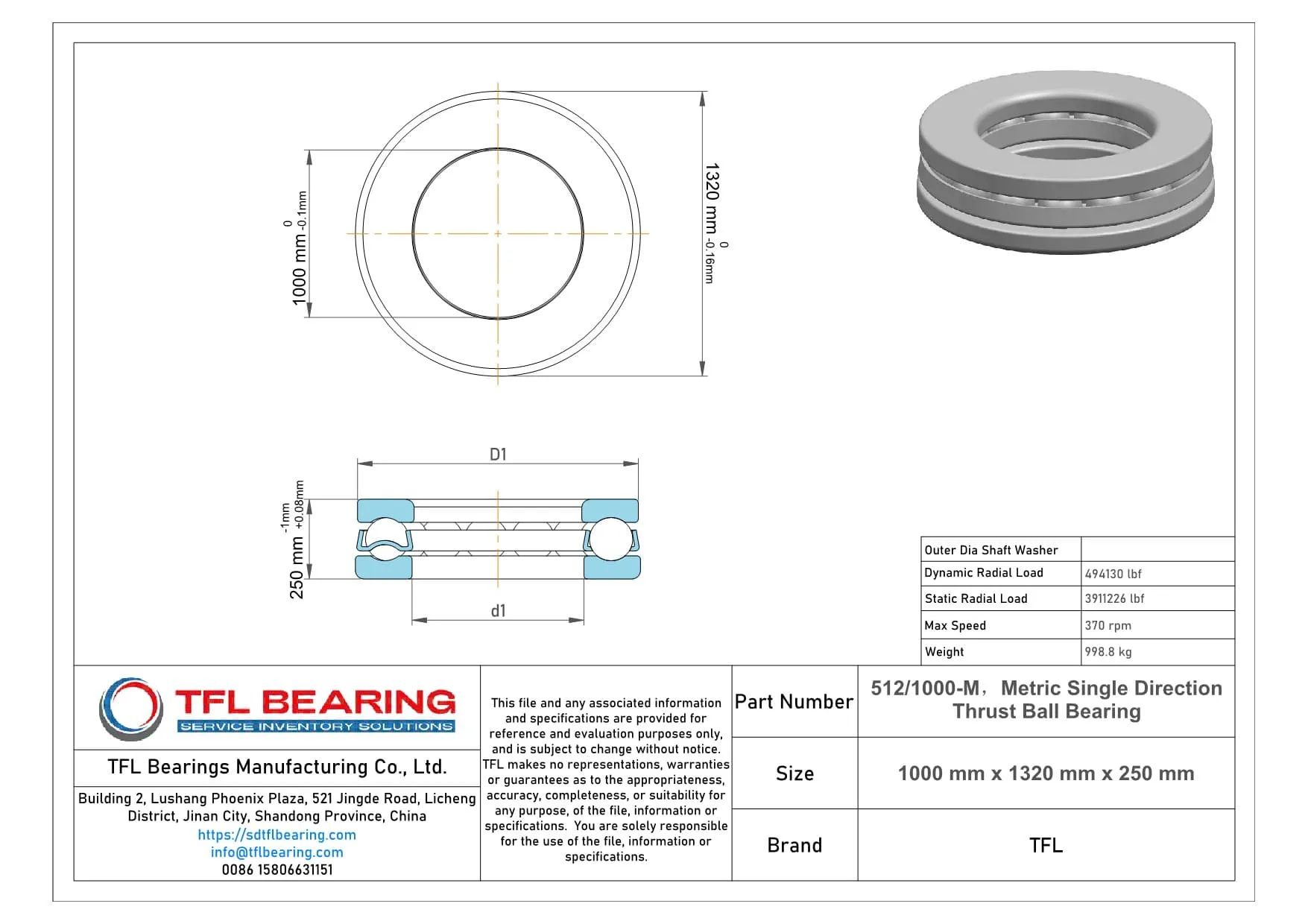

The 512/1000-M is a large single-direction thrust ball bearing with a 1000mm bore and 1320mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 494130 lbf and operates at speeds up to 370 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.
Weighing 998.8kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 512/1000-M Bearing
512/1000-M Bearing is built with 52100 chrome steel rings and balls, offering robust performance under heavy thrust loads.
Its dynamic thrust load capacity reaches 494130 lbf, making it suitable for demanding industrial applications.
The chrome steel cage ensures smooth ball alignment, reducing friction and wear over time.
With a maximum speed of 370 rpm, it balances durability and operational efficiency.
512/1000-M Bearing operates reliably within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring consistent performance in various conditions.
Key Fields for 512/1000-M Bearing
512/1000-M Bearing is commonly used in heavy industrial equipment like large presses and rolling mills, where its high load capacity handles significant axial forces. The open design simplifies lubrication, ensuring long service life in demanding conditions.
In wind turbine systems, 512/1000-M Bearing supports the main shaft, providing stability under varying wind loads. Its chrome steel construction offers durability in outdoor environments, reducing maintenance needs.
For hydropower plants, 512/1000-M Bearing is ideal for turbine applications, where its metric sizing ensures compatibility with European engineering standards. The robust design withstands continuous operation in wet conditions.
Automotive vs Aerospace: Applications of 512/1000-M Bearing
In automotive testing rigs, 512/1000-M Bearing handles extreme thrust loads during durability trials. Its precision tolerances ensure accurate performance measurements under stress.
Aerospace ground equipment also benefits from 512/1000-M Bearing’s reliability in supporting heavy components during assembly. The temperature range suits both indoor and outdoor use in various climates.
