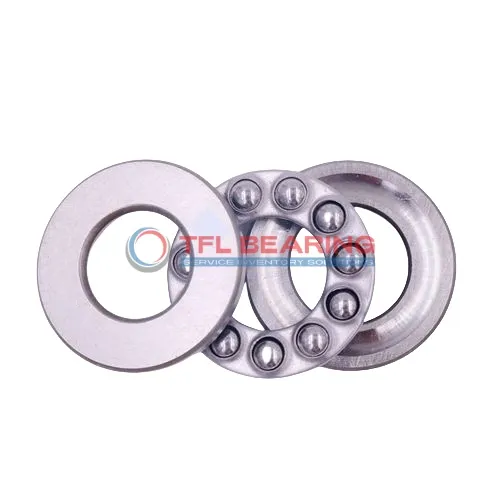

The 1009 is a single-direction thrust ball bearing with a 45mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 1525 lbf and operates smoothly at speeds reaching 5020 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery like pumps or compressors where single-direction thrust loads are present.
Weighing 0.19kg, it’s a compact yet robust component. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of 1009 Bearing
1009 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high thrust loads.
Its dynamic thrust load capacity of 1525 lbf ensures stable performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and prolonging service life.
With a maximum speed of 5,020 rpm, it balances efficiency and durability.
How Is 1009 Bearing Engineered for Reliability?

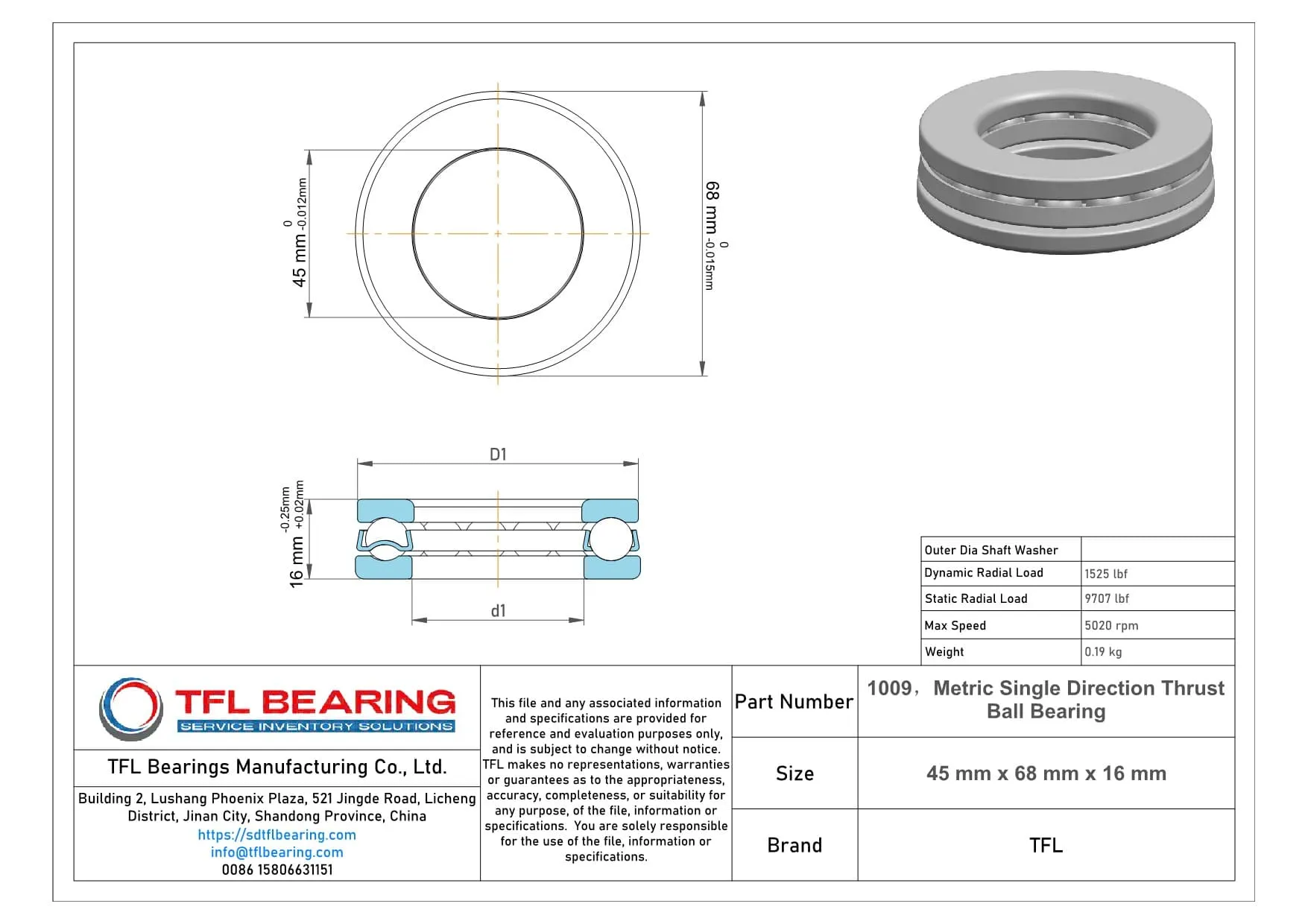

1009 Bearing features precise dimensions, with a bore diameter of 45 mm and outer diameter of 68 mm.
The chrome steel construction ensures durability, even under static thrust loads up to 9707 lbf.
Its open seal design allows for easy lubrication, enhancing performance in different conditions.
The bearing operates smoothly within a temperature range of -30° to 110°C.
Designed for Durability: 1009 Bearing
1009 Bearing’s robust chrome steel rings and balls provide long-lasting performance.
The width tolerance of +0.02mm to -0.25mm ensures a precise fit for various applications.
Its chamfer dimension of 0.5 mm facilitates easier installation and alignment.
The bearing’s weight of 0.19 kg makes it a practical choice for many industrial uses.
Steel vs Ceramic Bearings: Strengths of 1009 Bearing
1009 Bearing uses 52100 chrome steel for both rings and balls, ensuring high load capacity.
This material choice provides excellent resistance to wear compared to ceramic alternatives.
The bearing’s design supports a maximum speed of 5,020 rpm, suitable for many industrial needs.
Its compliance with RoHS and REACH standards ensures environmental safety.
Industrial Uses of 1009 Bearing
1009 Bearing is commonly used in machine tools, where its ability to handle axial loads makes it suitable for spindle assemblies. The open design allows for easy lubrication, ensuring long service life in demanding conditions.
In automotive applications, 1009 Bearing fits well in gearboxes and clutch mechanisms, providing reliable performance under thrust loads. Its metric dimensions make it a versatile choice for various vehicle models.
For automation systems, 1009 Bearing works efficiently in robotic arms and conveyor belts, thanks to its durable chrome steel construction. The precise tolerances ensure smooth operation in high-speed scenarios.
Medical devices like imaging equipment benefit from 1009 Bearing’s consistent performance and resistance to wear. The chrome steel cage adds an extra layer of durability for critical applications.
Around the house, 1009 Bearing can be found in appliances like washing machines, where its thrust load capacity ensures quiet and efficient operation. The simple design makes maintenance straightforward for everyday use.
