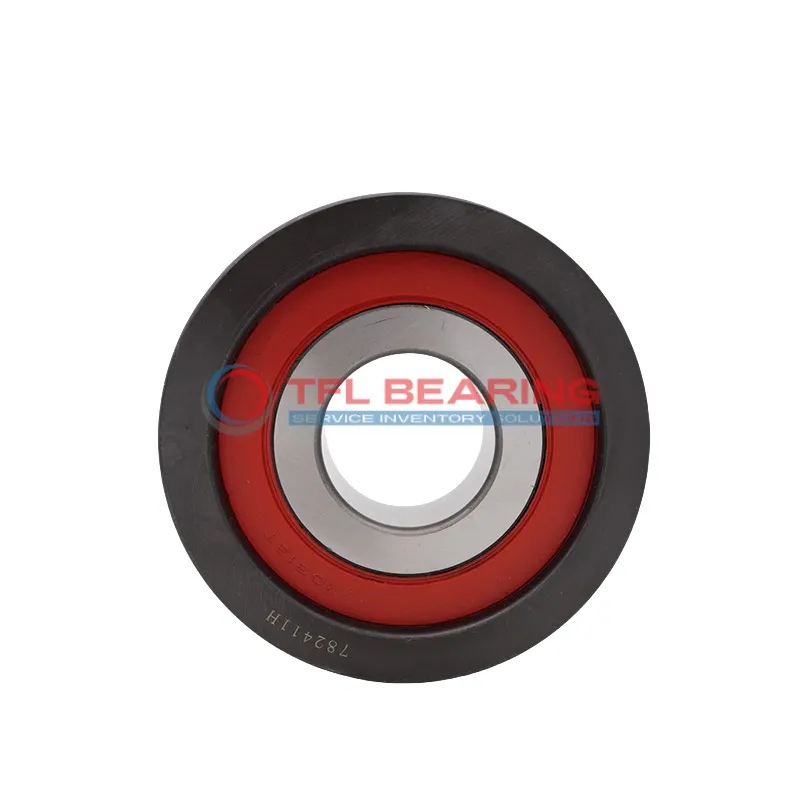

The MG 309 TC‑3 is a mast guide bearing measuring 45mm in inner diameter and 119mm in outer diameter, with a width of 29mm. Its sturdy construction ensures reliable performance in demanding conditions.
This bearing can handle dynamic loads up to 52,990 N and static loads up to 32,050 N, making it suitable for heavy-duty applications. The design includes a 7.5mm radius for smoother operation.
Weighing 1.6103 kg, it’s robust yet manageable for installation. Ideal for use in mast guidance systems or other industrial machinery where precision and durability are key.
Its dimensions and load capacity make it a practical choice for engineers and maintenance teams looking for a dependable solution.
"*" indicates required fields
Performance Features of MG 309 TC‑3 Bearing
MG 309 TC‑3 Bearing is built with precise dimensions of 45.000 mm x 119.00 mm x 29.000 mm, ensuring a perfect fit for guide applications.
Its dynamic capacity of 52,990 N allows it to handle significant loads with ease.
The bearing’s static capacity of 32,050 N provides reliable performance even under heavy stress.
With a weight of 1.6103 Kg, it offers a balance between strength and manageability.
The 7.5 mm radius design enhances durability and reduces stress concentrations.
MG 309 TC‑3 Bearing is ideal for applications requiring high load capacity and precise guidance.
Common Applications of MG 309 TC‑3 Bearing
MG 309 TC‑3 Bearing is widely used in industrial equipment like heavy-duty conveyors and lifting systems, where its high dynamic capacity ensures reliable performance. The robust design handles substantial radial loads, making it suitable for demanding environments.
In automotive applications, MG 309 TC‑3 Bearing supports components such as steering columns and transmission systems. Its precise dimensions and durability contribute to smoother operation and longer service life in vehicles.
For automation and robotics, MG 309 TC‑3 Bearing is a solid choice for mechanical arms and automated guided vehicles. The bearing’s stability and load capacity help maintain precision in repetitive movements.
Medical devices like diagnostic equipment also benefit from MG 309 TC‑3 Bearing’s consistent performance. The corrosion-resistant materials ensure reliability in sterile environments where accuracy is critical.
In consumer electronics, MG 309 TC‑3 Bearing can be found in high-performance printers and industrial-grade fans. Its balanced design reduces vibration, ensuring quieter operation and extended usability.
