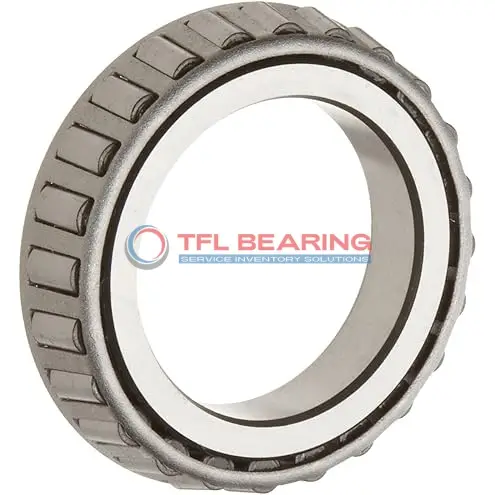

The M235149 is a single-row tapered roller bearing cone with a 6.6929-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 115,000 lbf and static loads up to 166,000 lbf.
Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone has a width of 1.8125 inches and operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.
Compliant with RoHS and REACH standards, it offers a balance of strength and durability. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific needs.
"*" indicates required fields
How Does M235149 Bearing Handle Combined Loads?
M235149 Bearing is built with chrome steel rings and a steel cage, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 115,000 lbf, ensuring reliability in demanding conditions.
The tapered roller design enhances load distribution, reducing stress and extending service life.
With an effective center location of -0.18″, it provides precise alignment for smooth operation.
What Makes M235149 Bearing Suitable for High-Temperature Applications?
M235149 Bearing operates efficiently in temperatures ranging from -30° to 110°C, maintaining performance in varied environments.
The chrome steel construction resists heat-induced wear, ensuring durability under thermal stress.
Its open seal design allows for better heat dissipation, preventing overheating during prolonged use.
The standard radial clearance options (C3/C4/C5) accommodate thermal expansion, enhancing reliability.
Engineered for Precision: M235149 Bearing
M235149 Bearing features a tapered roller design, optimised for precise load handling and alignment.
The cone width tolerance of +0.003″ to -0.01″ ensures consistent fit and performance.
Its dynamic radial rating (C90) of 29,900 lbf guarantees long-term reliability in heavy-duty applications.
The steel cage maintains roller positioning, reducing friction and wear over time.
Steel vs Ceramic Bearings: Strengths of M235149 Bearing
M235149 Bearing uses chrome steel rings and a steel cage, offering superior strength and cost-effectiveness.
The material choice ensures high resistance to wear, even under heavy combined loads.
Its static radial load capacity of 166,000 lbf highlights its durability in demanding settings.
The ABEC-1 rating confirms its precision, making it suitable for industrial applications.
Industrial Uses of M235149 Bearing
M235149 Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its tapered roller design handles combined loads effectively. The inch sizing makes it a good fit for American-made industrial gear.
Where Is M235149 Bearing Used?
You’ll often spot M235149 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its chrome steel construction ensures durability even in dusty or high-load conditions.
Built for Heavy-Duty Use: M235149 Bearing
M235149 Bearing excels in railway applications, particularly in wheel sets and bogies, thanks to its robust dynamic load capacity. The open design allows for easy lubrication, extending service life.
Automotive vs Aerospace: Applications of M235149 Bearing
In trucks and buses, M235149 Bearing supports drivetrain components, while its precision makes it suitable for certain aerospace landing gear systems. The steel cage adds stability under varying temperatures.
Essential Roles of M235149 Bearing
M235149 Bearing is a reliable choice for wind turbine yaw systems, where its tapered rollers manage both radial and thrust loads. The standard radial clearance offers flexibility for different operational needs.
