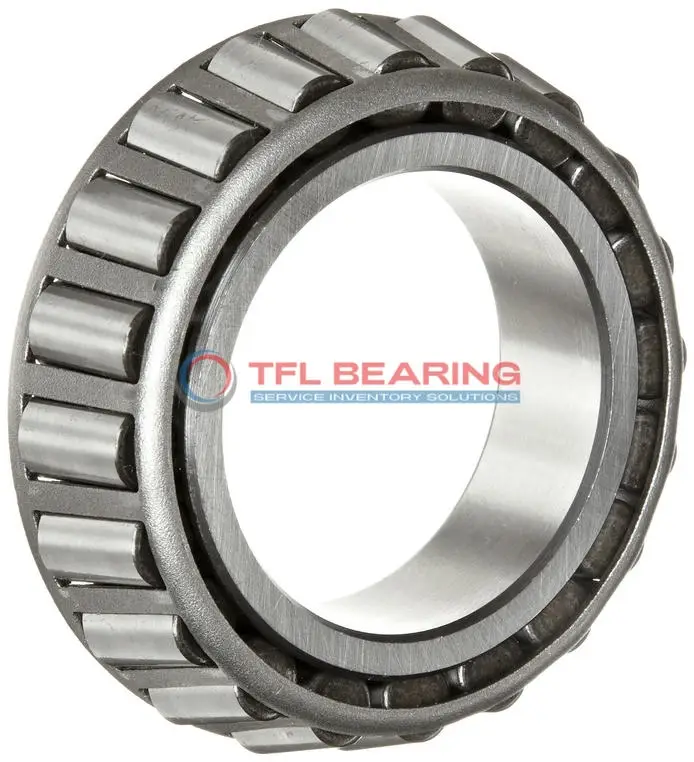

The LM104947A is a single-row tapered roller bearing cone with a 1.968″ bore, made from sturdy chrome steel. It handles combined loads up to 21700 lbf radially and 2930 lbf thrust, suitable for tough conditions.
Its open design allows easy lubrication, while the steel cage ensures durability. The cone width is 0.875″, with precise tolerances for reliable fit.
This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes.
Operating in temperatures from -30°C to 110°C, it meets RoHS and REACH standards. The standard radial clearance can be adjusted to C3, C4, or C5 as needed.
"*" indicates required fields
How Does LM104947A Bearing Handle Combined Loads?
LM104947A Bearing is crafted from chrome steel, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 21,700 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs consistently in various environments.
Why Choose LM104947A Bearing for Precision Tasks?
LM104947A Bearing features a tapered roller design, optimised for combined load applications.
The precise bore diameter tolerance of +0.005″ to 0 ensures accurate fit and smooth operation.
Its dynamic thrust rating of 2,930 lbf at 90 million revolutions highlights its durability.
The open seal type allows for easy inspection and maintenance, reducing downtime.
Engineered for Reliability: LM104947A Bearing
LM104947A Bearing’s single-row construction provides stability under heavy loads.
The chrome steel rings and steel cage enhance wear resistance and longevity.
With a static radial load capacity of 23,400 lbf, it handles demanding industrial applications.
Its standard radial clearance ensures smooth operation, with options for C3/C4/C5 available.
Steel vs Ceramic Bearings: Strengths of LM104947A Bearing
LM104947A Bearing uses high-quality chrome steel for superior strength and durability.
The steel cage design ensures reliable roller positioning, even under stress.
Its dynamic radial rating of 37,700 lbf for two-row configurations demonstrates robust performance.
The bearing operates efficiently within a wide temperature range, suitable for diverse conditions.
Performance Features of LM104947A Bearing
LM104947A Bearing’s tapered rollers are designed for combined load handling.
The cone width tolerance of +0.003″ to -0.01″ ensures precise installation and alignment.
With an ABEC-1 rating, it balances cost and performance for general applications.
The open seal design simplifies maintenance, keeping operational costs low.
Industrial Uses of LM104947A Bearing
LM104947A Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.
Where Is LM104947A Bearing Used?
You’ll often find LM104947A Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a fit for many North American vehicle models.
Built for Heavy-Duty Use: LM104947A Bearing
LM104947A Bearing excels in industrial gearboxes, where its open design allows for easy lubrication and maintenance. The steel cage adds strength, making it reliable for high-load applications.
Automotive vs Industrial: Applications of LM104947A Bearing
In automotive settings, LM104947A Bearing supports wheel assemblies, while in industrial plants, it’s ideal for conveyor systems. Its versatility stems from the tapered roller design and robust materials.
Perfect Fit for Automation: LM104947A Bearing
LM104947A Bearing works well in automated machinery, where precision and load capacity are key. The standard radial clearance ensures smooth operation in repetitive tasks.
