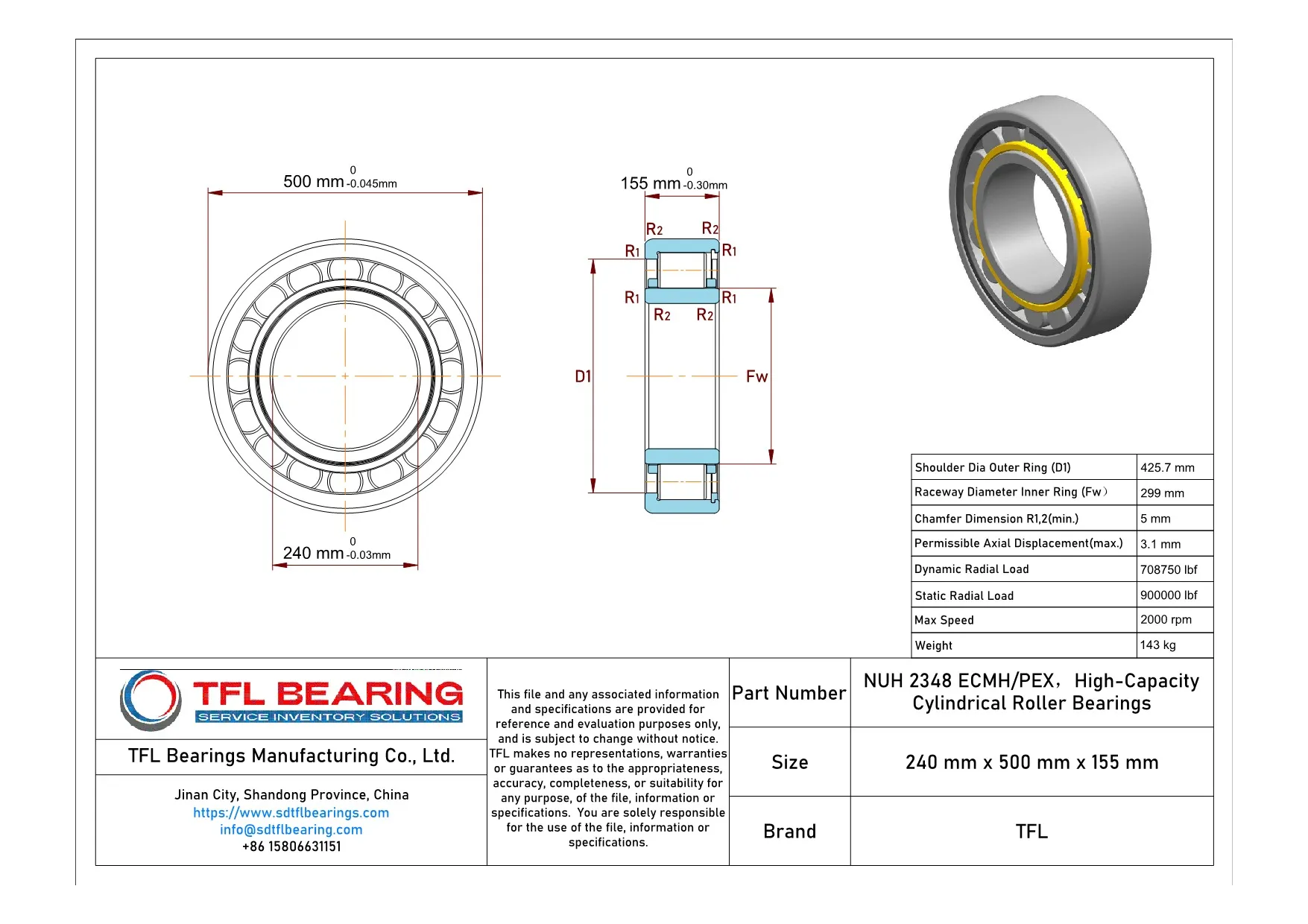

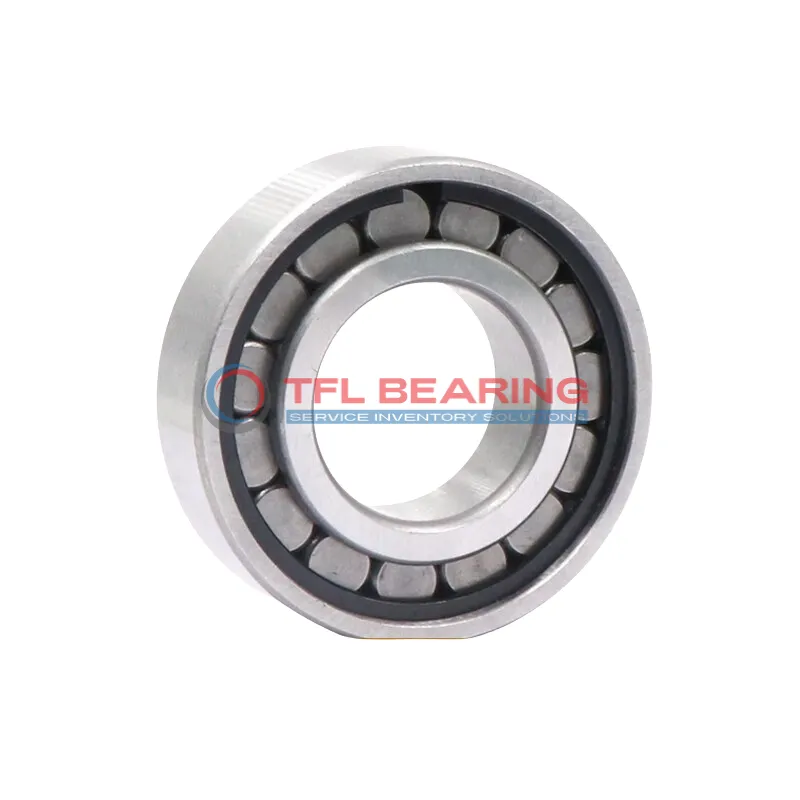

The NUH 2348 ECMH/PEX is a high-capacity cylindrical roller bearing with a 240mm bore and 500mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 708750 lbf and operates smoothly at speeds up to 2000 RPM.
Its single-row design with a machined brass cage ensures durability and precise performance. The open seal type allows for easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, making it a reliable choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial loads are common.
Weighing 143kg, it’s built for strength and longevity, complying with RoHS and REACH standards for safe and sustainable use.
"*" indicates required fields
How Does NUH 2348 ECMH/PEX Bearing Handle Heavy Loads?
NUH 2348 ECMH/PEX Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 708750 lbf, ensuring dependable performance in heavy-duty applications.
The machined brass cage keeps the rollers aligned, reducing friction and enhancing longevity.
With a maximum speed of 2000 rpm, it delivers a balance of strength and efficiency.
Engineered for Reliability: NUH 2348 ECMH/PEX Bearing
NUH 2348 ECMH/PEX Bearing features a single-row cylindrical design, optimised for combined load handling.
The inner ring raceway is centred, ensuring smooth operation under high radial loads.
Its chrome steel construction provides durability, even in demanding industrial environments.
The open seal type allows for easy lubrication with grease or oil.
Performance Features of NUH 2348 ECMH/PEX Bearing
NUH 2348 ECMH/PEX Bearing’s precision-engineered rollers reduce friction, enabling efficient operation.
The machined brass cage minimises wear, extending the bearing’s service life.
With a static radial load capacity of 900000 lbf, it excels in high-load scenarios.
Its temperature range of -30° to 110 °C ensures reliability in varied conditions.
Why Choose NUH 2348 ECMH/PEX Bearing for Precision Tasks?
NUH 2348 ECMH/PEX Bearing’s centred inner ring raceway enhances precision under heavy loads.
The chrome steel rollers and rings provide consistent performance in industrial applications.
Its open design simplifies lubrication, reducing maintenance requirements.
With a permissible axial displacement of 3.1 mm, it accommodates slight misalignments.
Structural Advantages of NUH 2348 ECMH/PEX Bearing
NUH 2348 ECMH/PEX Bearing’s single-row construction ensures stability under combined loads.
The machined brass cage improves roller alignment, reducing operational noise.
Its wide temperature range makes it suitable for diverse working environments.
The bearing’s robust design minimises the need for frequent replacements.
Industrial Uses of NUH 2348 ECMH/PEX Bearing
NUH 2348 ECMH/PEX Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its high radial load capacity ensures reliable performance. The machined brass cage helps reduce friction, making it suitable for continuous operation.
In wind turbine applications, NUH 2348 ECMH/PEX Bearing handles combined loads efficiently, supporting the main shaft with its robust chrome steel construction. Its open design allows for easy lubrication, extending service life in harsh environments.
For mining equipment, NUH 2348 ECMH/PEX Bearing’s large bore and width provide stability under extreme conditions. The precise tolerances ensure smooth rotation, even when dealing with uneven loads.
What Makes NUH 2348 ECMH/PEX Bearing a Preferred Choice?
NUH 2348 ECMH/PEX Bearing is often selected for paper manufacturing machinery due to its ability to withstand high speeds and heavy loads. The centred inner ring raceway improves alignment, reducing wear over time.
In steel production plants, NUH 2348 ECMH/PEX Bearing’s grease or oil lubrication options make it adaptable to different operational needs. Its temperature range also ensures consistent performance in hot or cold conditions.
