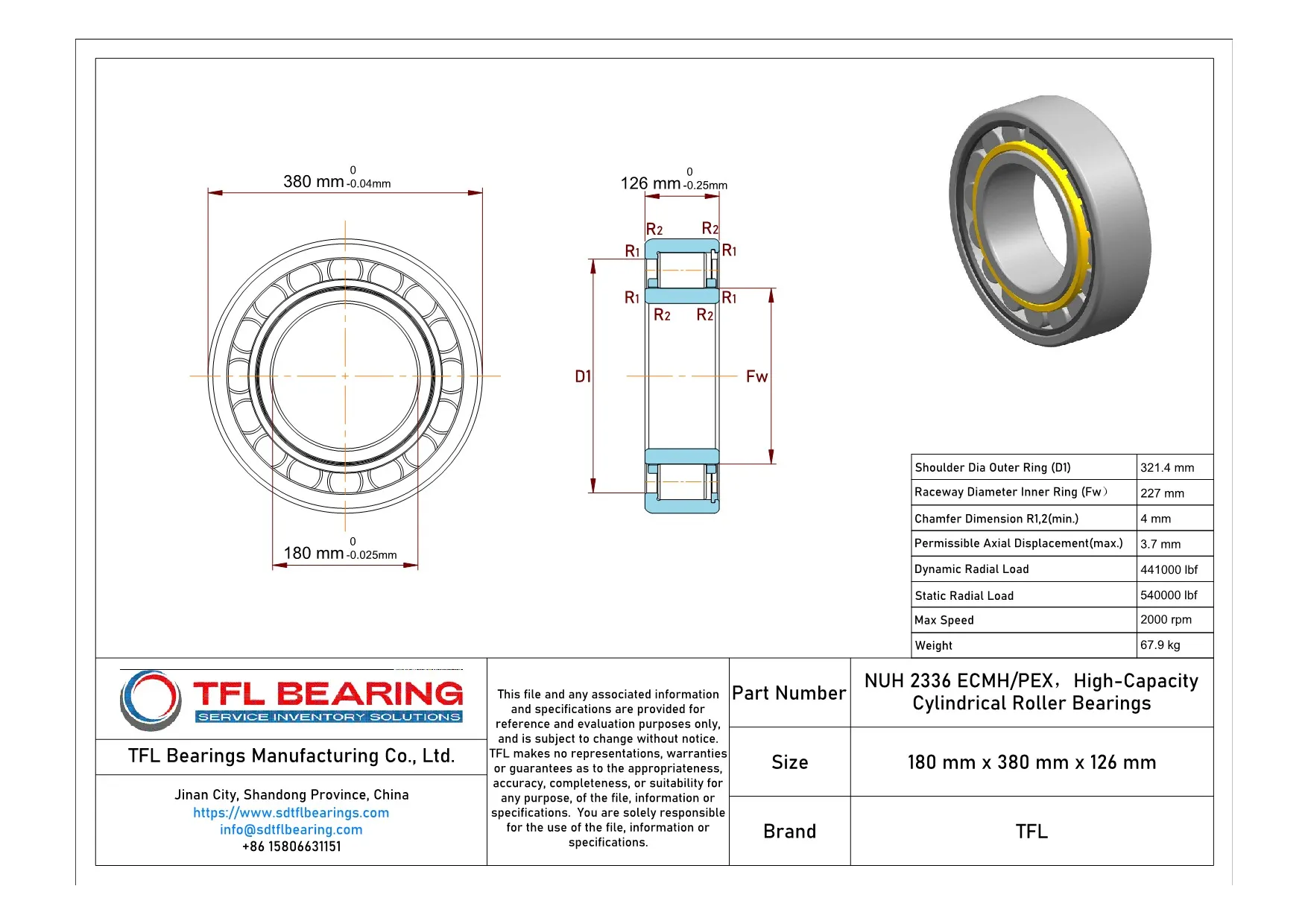

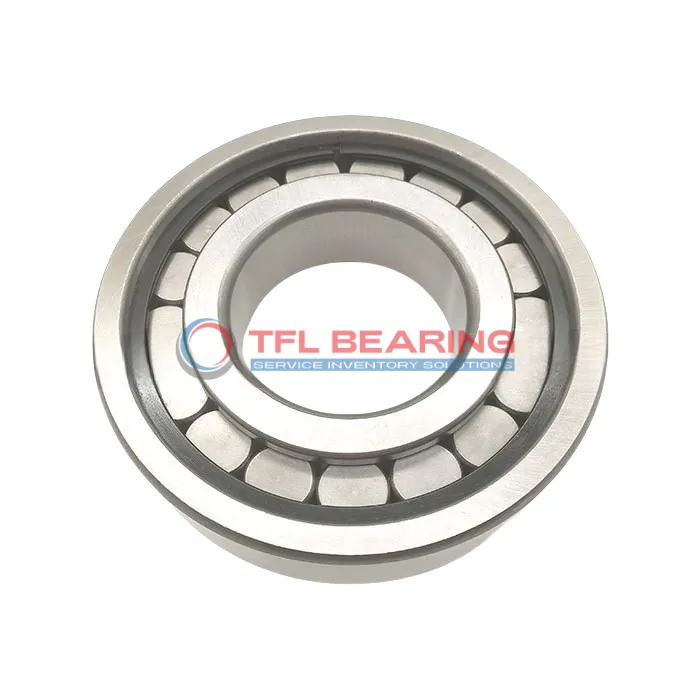

The NUH 2336 ECMH/PEX is a high-capacity cylindrical roller bearing with a 180mm bore and 380mm outer diameter, built from tough chrome steel. It handles combined loads up to 441000 lbf and runs smoothly at speeds up to 2000 RPM.
Its single-row design with a machined brass cage ensures durability and precise performance. The open seal type allows for easy lubrication with grease or oil.
This bearing can operate in temperatures from -30°C to 110°C, making it suitable for demanding environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.
Weighing 67.9kg, it’s robust and ideal for heavy machinery, industrial gearboxes, or large equipment where high radial loads are common. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NUH 2336 ECMH/PEX Bearing
NUH 2336 ECMH/PEX Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 441,000 lbf, ensuring reliable performance in heavy-duty applications.
The machined brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2,000 rpm, it balances durability and efficiency in demanding conditions.
NUH 2336 ECMH/PEX Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
Industrial Uses of NUH 2336 ECMH/PEX Bearing
NUH 2336 ECMH/PEX Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its high radial load capacity ensures reliable performance. The machined brass cage design helps reduce friction, making it suitable for continuous operation.
What Makes NUH 2336 ECMH/PEX Bearing a Preferred Choice?
In wind turbine applications, NUH 2336 ECMH/PEX Bearing handles combined loads efficiently, thanks to its robust chrome steel construction. Its open seal type allows for easy lubrication, extending service life in harsh environments.
Built for Heavy-Duty Use: NUH 2336 ECMH/PEX Bearing
NUH 2336 ECMH/PEX Bearing excels in steel mill equipment, where its high dynamic radial load rating withstands intense operational demands. The precise metric tolerances ensure seamless integration with European and Asian machinery standards.
Automotive vs Aerospace: Applications of NUH 2336 ECMH/PEX Bearing
In automotive manufacturing, NUH 2336 ECMH/PEX Bearing supports large presses and robotic assembly lines with consistent precision. For aerospace, its temperature stability makes it useful in ground support equipment testing.
Where Is NUH 2336 ECMH/PEX Bearing Used?
NUH 2336 ECMH/PEX Bearing often appears in mining equipment like crushers, where its static radial load capacity handles extreme shock loads. The grease or oil lubrication options provide flexibility for different maintenance schedules.
