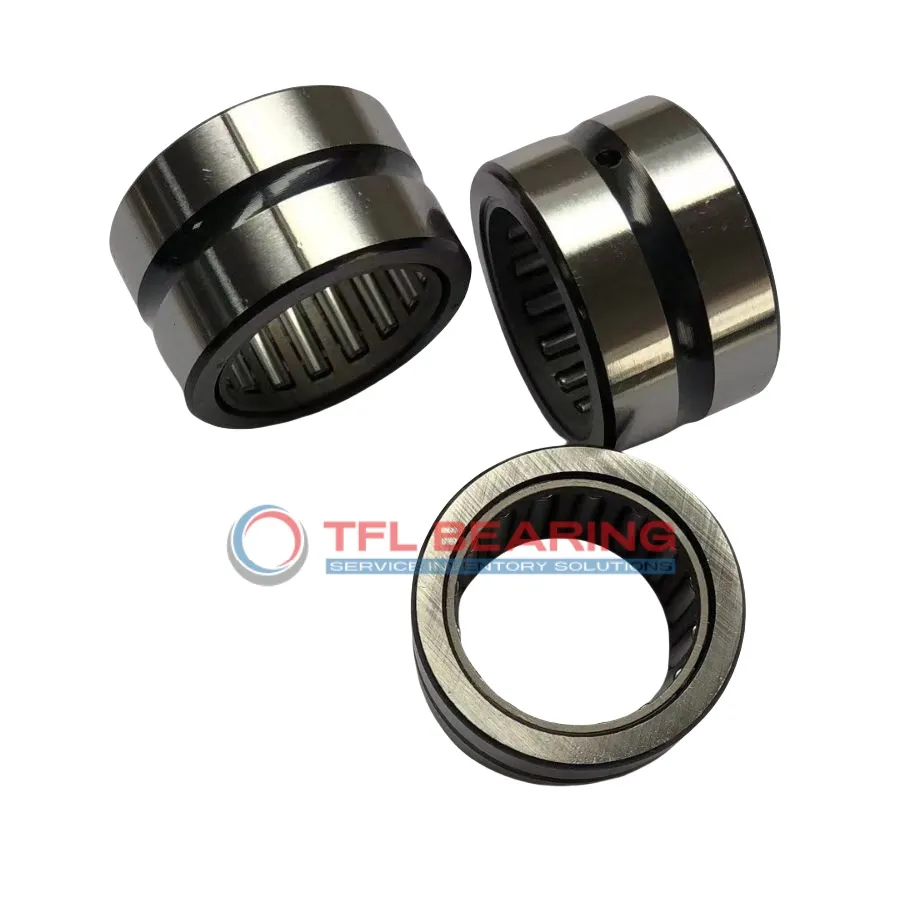

-RNAO50X62X20-XL-Dimensions.webp)
The RNAO50X62X20-XL is a heavy-duty needle roller bearing with a 50mm bore and 62mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6750 lbf and spins smoothly at speeds up to 9300 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability under heavy use. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing just 140g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use. Regular lubrication is recommended to maintain optimal performance.
"*" indicates required fields
How Does RNAO50X62X20-XL Bearing Handle Heavy Loads?
RNAO50X62X20-XL Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 6750 lbf, making it suitable for demanding industrial applications.
The steel cage ensures proper roller alignment, reducing friction and wear.
With a maximum speed of 9300 rpm, it delivers reliable performance under high-speed conditions.
Why Choose RNAO50X62X20-XL Bearing for Precision Tasks?
RNAO50X62X20-XL Bearing features precise dimensions with a bore diameter tolerance of 0.025mm to 0.041mm.
Its press-fit shaft mount type ensures secure installation, reducing the risk of misalignment.
The open design allows for easy lubrication, maintaining smooth operation.
Operating within a temperature range of -20 to 110°C, it adapts to various working environments.
Engineered for Precision: RNAO50X62X20-XL Bearing
RNAO50X62X20-XL Bearing’s single-row design provides high radial load capacity while maintaining a compact size.
The steel construction enhances durability, ensuring long service life even under heavy loads.
Its chamfer dimension of 0.3 mm facilitates easier installation and reduces stress concentrations.
Weighing just 140 g, it combines strength with lightweight efficiency.
Steel vs Ceramic Bearings: Strengths of RNAO50X62X20-XL Bearing
RNAO50X62X20-XL Bearing uses high-quality steel for its rings, cage, and rollers, ensuring robustness.
The steel construction provides excellent load-bearing capacity, with a static radial load of 13500 lbf.
Its open design simplifies lubrication, enhancing performance in high-speed applications.
The bearing’s temperature range of -20 to 110°C makes it versatile for different operating conditions.
Industrial Uses of RNAO50X62X20-XL Bearing
RNAO50X62X20-XL Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its high radial load capacity is essential. The open design and steel construction make it durable in demanding environments.
What Makes RNAO50X62X20-XL Bearing a Preferred Choice?
In automotive applications, RNAO50X62X20-XL Bearing fits well in gearboxes and transmission systems, thanks to its press-fit mounting and high-speed capability. Its steel rollers ensure long-lasting performance even under constant stress.
Built for Heavy-Duty Use: RNAO50X62X20-XL Bearing
For automation systems, RNAO50X62X20-XL Bearing works efficiently in robotic arms and conveyor belts, handling radial loads smoothly. The metric sizing ensures compatibility with a variety of industrial equipment.
Medical vs Industrial: Where RNAO50X62X20-XL Bearing Excels
While not typically used in medical devices, RNAO50X62X20-XL Bearing shines in industrial settings like printing presses and packaging machines. Its steel cage and rollers provide reliability in high-use scenarios.
"*" indicates required fields

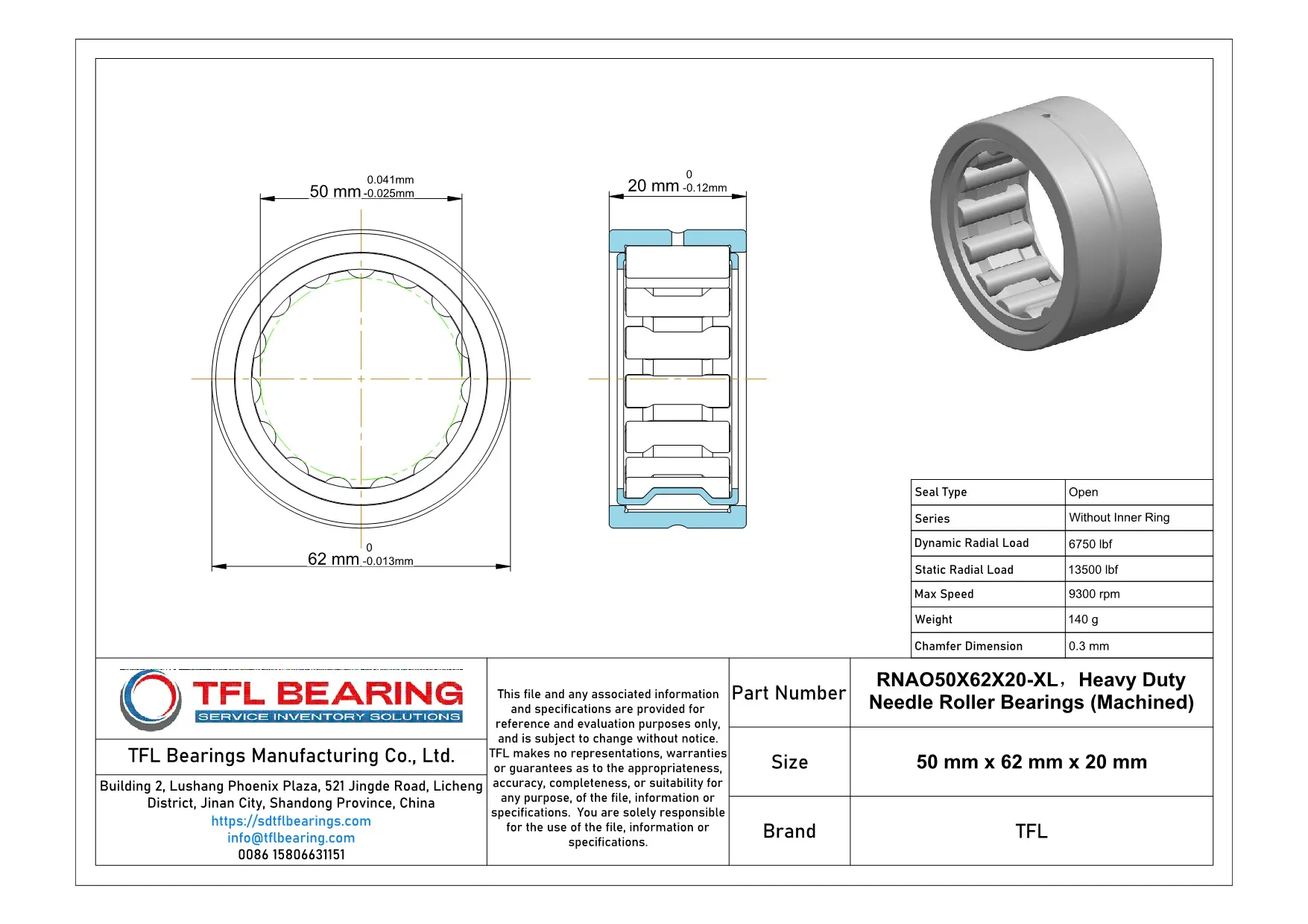

-RNAO50X62X20-XL-Drawing.webp)
