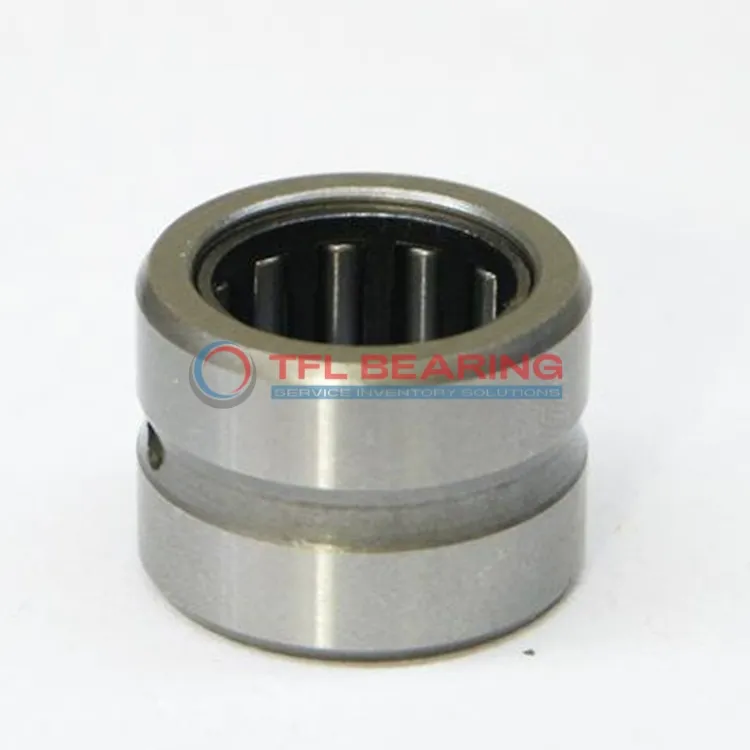

The RNAO35X45X13-XL is a heavy-duty needle roller bearing with a 35mm bore and 45mm outer diameter, crafted from sturdy steel for radial loads. It supports dynamic loads up to 4118 lbf and spins smoothly at speeds up to 13100 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model works well in temperatures from -20°C to 110°C and is interchangeable with INA bearings. Ideal for applications like transmissions or industrial equipment where space is limited but high load capacity is needed.
Weighing just 53g, it’s lightweight yet robust. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does RNAO35X45X13-XL Bearing Handle Heavy Loads?
RNAO35X45X13-XL Bearing is built with steel rings and rollers, offering robust resistance to heavy radial loads.
Its dynamic radial load capacity reaches 4118 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 13,100 rpm, it combines strength and efficiency for demanding applications.
Industrial Uses of RNAO35X45X13-XL Bearing
RNAO35X45X13-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads effortlessly. The open seal type allows for easy lubrication, ensuring long service life even in demanding conditions.
What Makes RNAO35X45X13-XL Bearing a Preferred Choice?
In automotive applications, RNAO35X45X13-XL Bearing is ideal for gearboxes and transmission systems, thanks to its compact size and high load capacity. The press-fit mounting ensures a secure attachment, reducing vibration and wear over time.
Built for Heavy-Duty Use: RNAO35X45X13-XL Bearing
For automation systems, RNAO35X45X13-XL Bearing provides reliable performance in robotic arms and conveyor belts, where precision and durability are key. Its steel construction offers excellent resistance to wear, making it suitable for continuous operation.
Light-Duty vs Heavy-Duty: Best Uses for RNAO35X45X13-XL Bearing
In consumer electronics like printers and power tools, RNAO35X45X13-XL Bearing ensures smooth operation with minimal maintenance. Its lightweight design and high-speed capability make it a versatile choice for various applications.
"*" indicates required fields

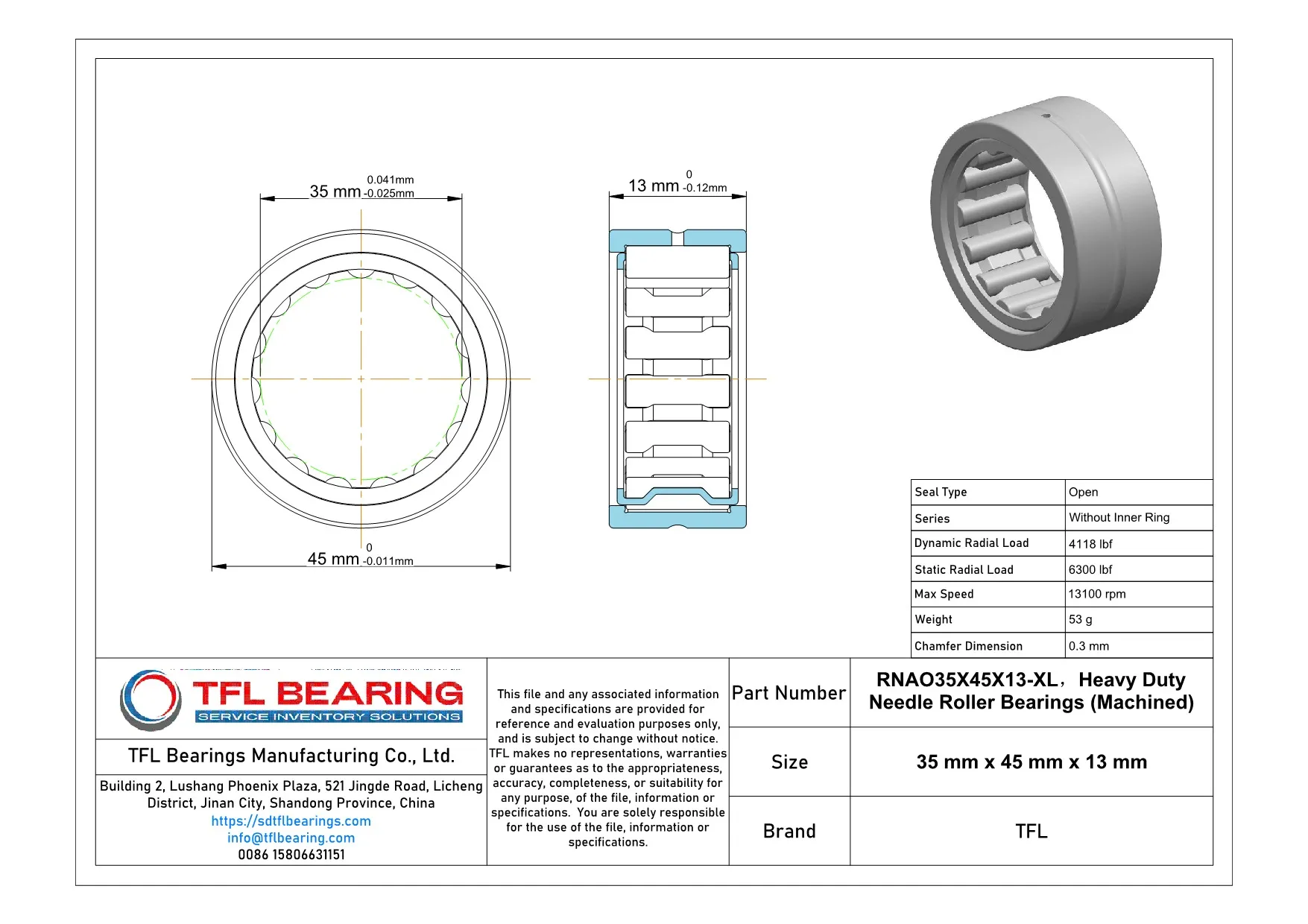

-RNAO35X45X13-XL-Drawing.webp)
