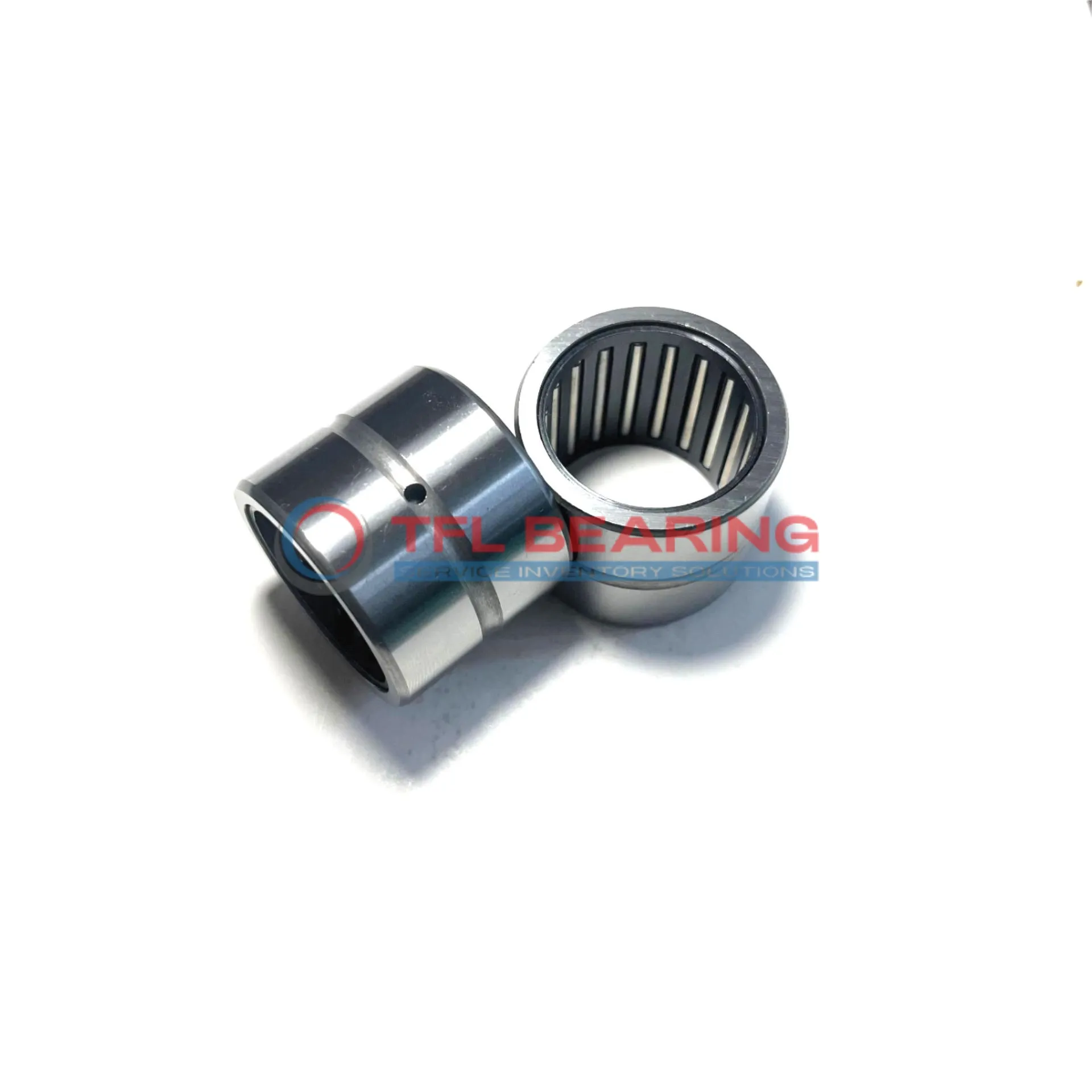

The RNAO20X28X13-XL is a heavy-duty needle roller bearing with a 20mm bore and 28mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2498 lbf and spins smoothly at speeds up to 21300 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gearboxes or automotive components where high radial loads are common.
Weighing just 25g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use. Regular lubrication is recommended to maintain optimal performance.
"*" indicates required fields
Performance Features of RNAO20X28X13-XL Bearing
RNAO20X28X13-XL Bearing is built with steel rings and rollers, offering strong radial load capacity.
Its dynamic radial load reaches 2498 lbf, making it suitable for heavy-duty applications.
The press-fit shaft mount design ensures secure installation, reducing slippage during operation.
With a maximum speed of 21,300 rpm, it balances high performance and durability.
RNAO20X28X13-XL Bearing operates efficiently in temperatures ranging from -20°C to 110°C.
Its open design allows for easy lubrication, ensuring smooth and reliable performance.
Common Applications of RNAO20X28X13-XL Bearing
RNAO20X28X13-XL Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its press-fit design ensures a secure mounting, making it reliable for continuous operation.
In automotive applications, RNAO20X28X13-XL Bearing fits well in transmission systems and steering mechanisms, handling high speeds smoothly. The steel construction offers durability, even under frequent stress.
For automation equipment, RNAO20X28X13-XL Bearing works efficiently in robotic arms and linear guides, thanks to its low-profile design. The open seal allows for easy lubrication, extending its service life.
In household appliances like washing machines, RNAO20X28X13-XL Bearing provides quiet and stable performance. Its lightweight design doesn’t compromise on strength, making it a practical choice for daily use.
