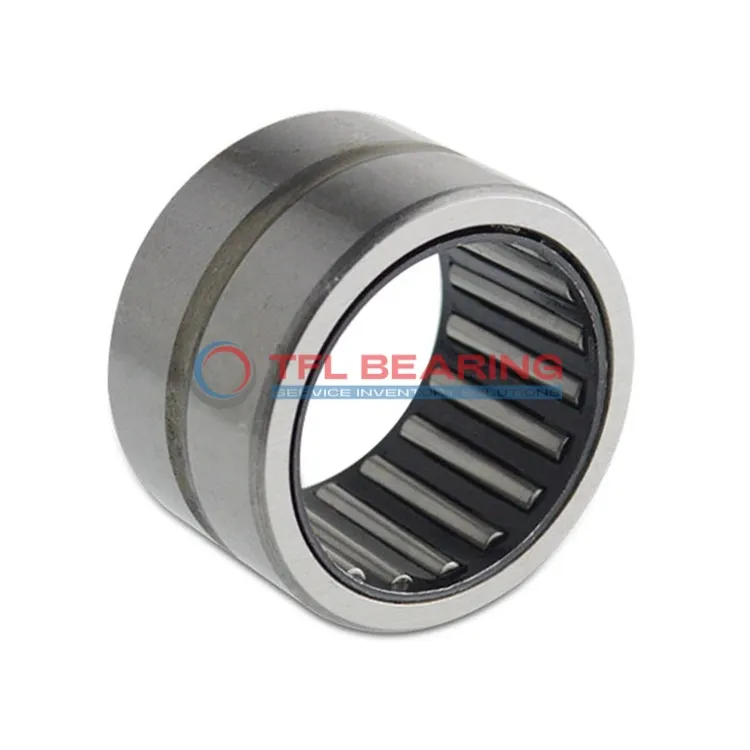

The RNAO12X22X12-TV-XL is a heavy-duty needle roller bearing with a 12mm bore and 22mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2542 lbf and spins at speeds up to 26000 RPM.
Its open design and PA66 cage make it lightweight yet durable, while the press-fit mounting ensures a secure fit. The bearing operates smoothly in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable replacement option. Perfect for high-speed applications like gearboxes or small machinery where space is limited.
Weighing just 19g, it’s easy to handle and install. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of RNAO12X22X12-TV-XL Bearing
RNAO12X22X12-TV-XL Bearing is built with steel rings and rollers, offering strong radial load capacity up to 2542 lbf.
Its open design allows for easy lubrication, ensuring smooth operation under high-speed conditions.
The PA66 cage maintains roller alignment, reducing friction and wear.
With a maximum speed of 26,000 rpm, it is suitable for demanding industrial applications.
Industrial Uses of RNAO12X22X12-TV-XL Bearing
RNAO12X22X12-TV-XL Bearing is commonly used in industrial machinery, such as gearboxes and pumps, where its compact design and high radial load capacity are beneficial. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.
Where Is RNAO12X22X12-TV-XL Bearing Used?
In automotive applications, RNAO12X22X12-TV-XL Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit mounting and high-speed capability. Its steel construction provides durability under constant radial loads.
Built for Heavy-Duty Use: RNAO12X22X12-TV-XL Bearing
RNAO12X22X12-TV-XL Bearing excels in automation equipment like robotic arms, where precision and reliability are key. The PA66 cage material reduces friction, making it suitable for high-speed operations up to 26,000 rpm.
Medical vs Industrial: Where RNAO12X22X12-TV-XL Bearing Excels
While RNAO12X22X12-TV-XL Bearing is ideal for industrial tools, its precision also makes it useful in medical devices like dental drills. The steel rollers ensure smooth performance even in high-temperature environments.
Practical Applications of RNAO12X22X12-TV-XL Bearing
RNAO12X22X12-TV-XL Bearing is a great choice for household appliances like washing machines, where its compact size and radial load handling improve efficiency. The metric dimensions make it easy to integrate into various designs.
