-NKI20-16-XL-Dimensions.webp)

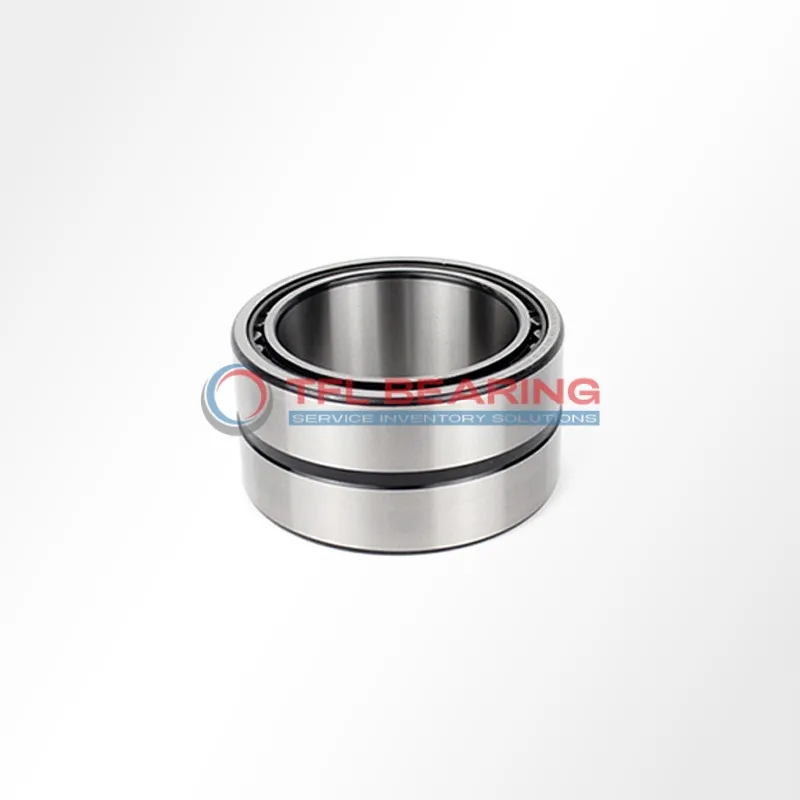

The NKI20/16-XL is a heavy-duty needle roller bearing with a 20mm bore and 32mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3802 lbf and spins smoothly at speeds up to 18500 RPM.
Its open design requires lubrication but offers easy maintenance, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
Designed for press-fit mounting, it’s a practical choice for applications with limited space. Ideal for use in gearboxes, pumps, or industrial machinery where high radial loads are common.
Weighing just 49g, it’s lightweight yet robust. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of NKI20/16-XL Bearing
NKI20/16-XL Bearing is built with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 3802 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper alignment of the needles, reducing friction and wear.
With a maximum speed of 18,500 rpm, it delivers reliable performance in high-speed conditions.
NKI20/16-XL Bearing operates efficiently in temperatures ranging from -20 to 110 °C.
Its press-fit shaft mount design simplifies installation, saving time and effort.
The open seal type allows for easy lubrication, ensuring smooth operation.
Weighing just 49 g, it combines durability with a lightweight design.
Common Applications of NKI20/16-XL Bearing
NKI20/16-XL Bearing works well in industrial settings, especially for machinery like conveyor belts and printing presses where radial loads are common. Its steel construction ensures durability even in demanding environments.
In automotive systems, NKI20/16-XL Bearing fits perfectly in gearboxes and transmission units, handling high speeds up to 18500 rpm. The press-fit design makes installation straightforward for mechanics.
For automation equipment, NKI20/16-XL Bearing supports robotic arms and assembly lines, providing smooth motion under radial stress. The open seal type allows for easy lubrication, extending its service life.
In household appliances like washing machines, NKI20/16-XL Bearing offers reliable performance with minimal maintenance. Its compact size and metric dimensions make it a versatile choice for various models.
"*" indicates required fields
-NKI20-16-XL-Drawing.webp)
