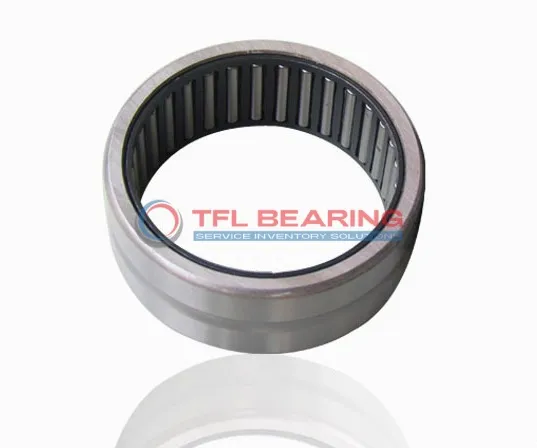

The NCS1016 is a heavy-duty needle roller bearing with a 0.625″ bore and 1.125″ outer diameter, designed for radial loads. Made from sturdy steel, it handles dynamic loads up to 4748 lbf and spins smoothly at speeds up to 22400 RPM.
Its open design requires regular lubrication, while the press-fit shaft mount ensures a secure installation. The bearing performs well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing just 68g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of NCS1016 Bearing
NCS1016 Bearing is built with high-quality steel rollers and cage, offering strong radial load capacity up to 4748 lbf.
Its open design allows for easy lubrication, ensuring smooth operation even at high speeds of 22,400 rpm.
The press-fit shaft mount simplifies installation, saving time and effort in assembly.
With a temperature range of -20 to 110°C, it performs reliably in various operating conditions.
Industrial Uses of NCS1016 Bearing
NCS1016 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads effortlessly. The open seal type allows for easy lubrication, ensuring longevity in demanding conditions.
Where Is NCS1016 Bearing Used?
You’ll often spot NCS1016 Bearing in automotive transmissions and powertrain systems, where its needle roller design provides smooth operation under high-speed rotations. Its press-fit mounting makes installation straightforward, saving time during assembly.
Built for Heavy-Duty Use: NCS1016 Bearing
NCS1016 Bearing excels in industrial gearboxes, offering reliable performance even under continuous operation. The steel construction ensures durability, while the inch sizing makes it compatible with a variety of machinery standards.
Automotive vs Industrial: Applications of NCS1016 Bearing
In automotive settings, NCS1016 Bearing supports components like differential systems, while in industrial applications, it’s ideal for conveyor rollers. Its high-speed capability and load capacity make it versatile across different sectors.
Perfect Fit for Automation: NCS1016 Bearing
NCS1016 Bearing is a great choice for robotic arms and automated assembly lines, where precision and reliability are key. The steel cage and rollers provide consistent performance, even in high-cycle operations.
"*" indicates required fields

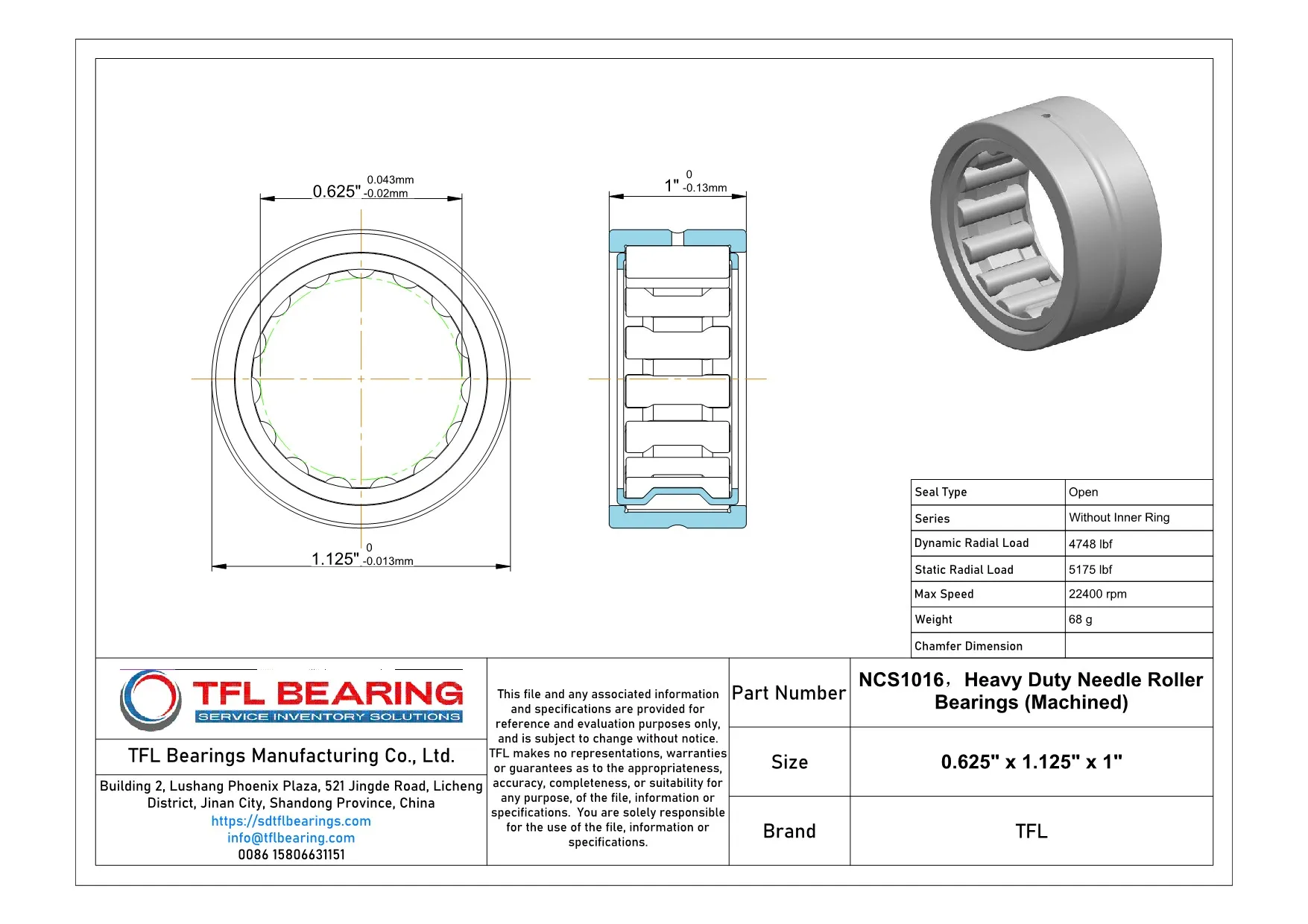

-NCS1016-Drawing.webp)
