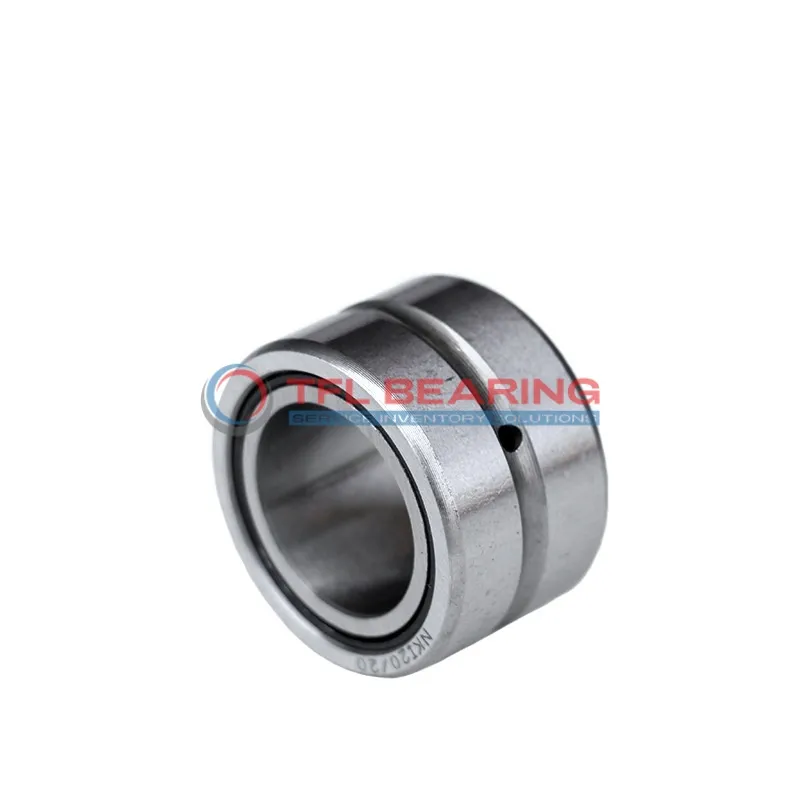

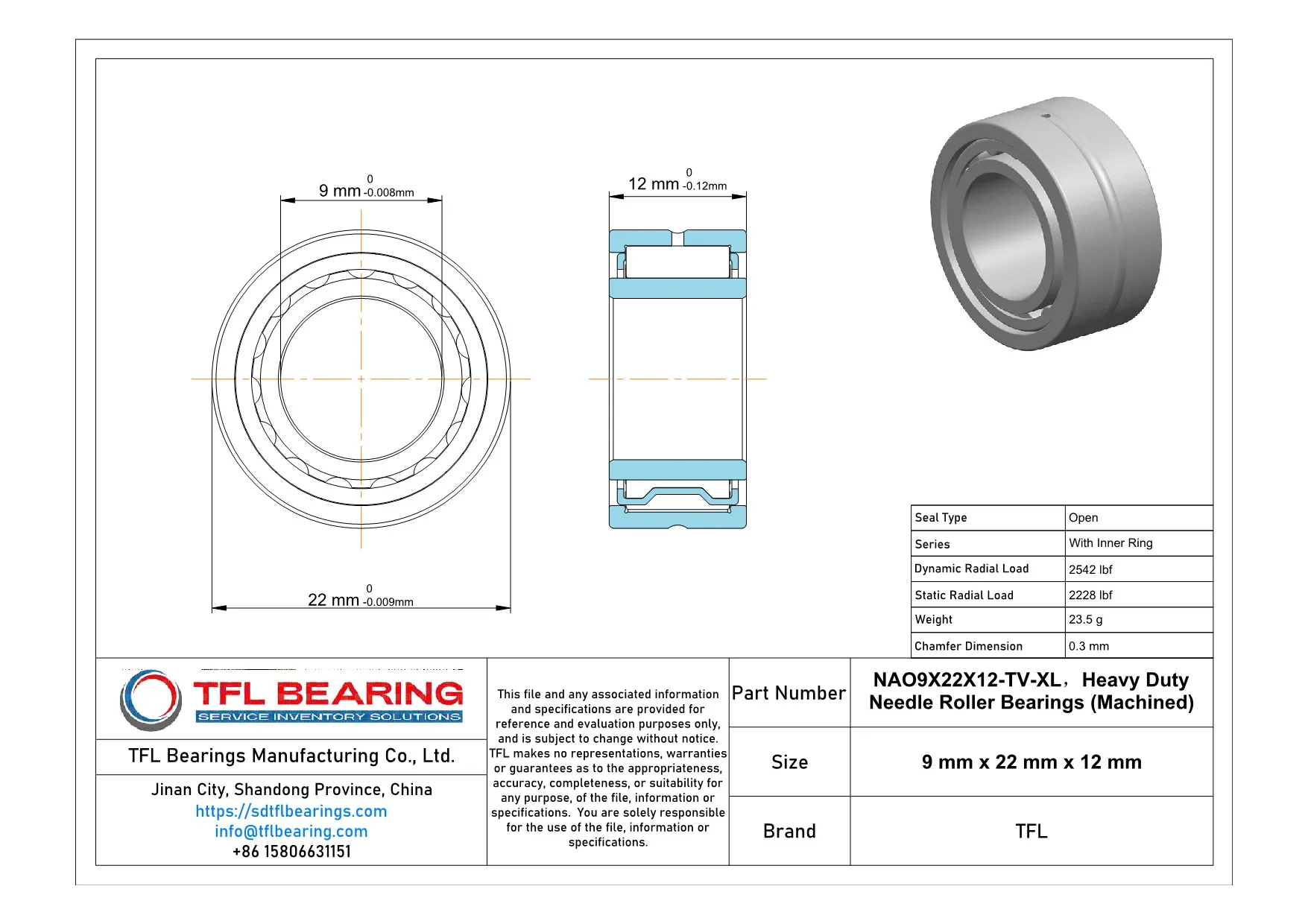

The NAO9X22X12-TV-XL is a heavy-duty needle roller bearing with a 9mm bore and 22mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2542 lbf and spins smoothly at speeds up to 26000 RPM.
Its open design and PA66 cage make it lightweight yet durable, while the steel rollers ensure long-lasting operation. The bearing requires lubrication and operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gearboxes or small machinery where space is limited but high radial load capacity is needed.
Weighing just 23.5g, it’s compact and efficient. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does NAO9X22X12-TV-XL Bearing Handle High-Speed Applications?
NAO9X22X12-TV-XL Bearing is built with steel rollers and rings, offering strong radial load capacity up to 2542 lbf.
Its high-speed capability of 26,000 rpm makes it suitable for demanding applications.
The PA66 cage ensures smooth operation and reduces friction, enhancing performance.
With a press-fit shaft mount, it provides secure installation and reliable operation.
Core Advantages of NAO9X22X12-TV-XL Bearing
NAO9X22X12-TV-XL Bearing features a single-row design, optimised for radial loads in compact spaces.
The steel construction ensures durability and resistance to wear under heavy loads.
Its open design allows for easy lubrication, maintaining smooth operation over time.
The bearing operates efficiently within a temperature range of -20 to 110°C.
Why Choose NAO9X22X12-TV-XL Bearing for Precision Tasks?
NAO9X22X12-TV-XL Bearing’s precision-engineered needle rollers provide high load capacity in a small footprint.
The tight tolerances ensure consistent performance in radial load applications.
Its lightweight design at 23.5 g makes it ideal for applications where weight is a concern.
The PA66 cage material reduces noise, making it suitable for precision instruments.
Designed for Durability: NAO9X22X12-TV-XL Bearing
NAO9X22X12-TV-XL Bearing’s steel construction ensures long-lasting performance even under heavy radial loads.
The open seal type allows for easy maintenance and lubrication, extending service life.
It operates reliably in temperatures ranging from -20 to 110°C, suitable for various environments.
The press-fit mounting ensures secure installation, reducing the risk of slippage.
Steel vs Ceramic Bearings: Strengths of NAO9X22X12-TV-XL Bearing
NAO9X22X12-TV-XL Bearing’s steel rollers and rings provide excellent strength and durability.
Its dynamic radial load capacity of 2542 lbf ensures reliable performance in heavy-duty applications.
The PA66 cage material offers a good balance of strength and reduced friction.
With a maximum speed of 26,000 rpm, it is well-suited for high-speed operations.
Industrial Uses of NAO9X22X12-TV-XL Bearing
NAO9X22X12-TV-XL Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its steel construction ensures durability in demanding environments.
Where Is NAO9X22X12-TV-XL Bearing Used?
In automotive applications, NAO9X22X12-TV-XL Bearing fits well in transmission systems and steering mechanisms, thanks to its high-speed capability and press-fit design. The open seal allows for easy lubrication maintenance.
Built for Heavy-Duty Use: NAO9X22X12-TV-XL Bearing
NAO9X22X12-TV-XL Bearing excels in robotics and automation, providing reliable performance in robotic arms and precision equipment. The PA66 cage material reduces friction, enhancing smooth operation.
Automotive vs Aerospace: Applications of NAO9X22X12-TV-XL Bearing
While NAO9X22X12-TV-XL Bearing is popular in automotive gearboxes, it also finds use in aerospace components requiring lightweight yet robust solutions. Its metric sizing ensures compatibility across various industries.
Perfect Fit for Automation: NAO9X22X12-TV-XL Bearing
NAO9X22X12-TV-XL Bearing is ideal for 3D printers and CNC machines, where precision and high-speed performance are key. The steel rollers provide consistent load handling, making it a dependable choice.
