-QJ-213-MA-Dimensions.webp)
The QJ 213 MA is a four-point contact angular contact ball bearing, measuring 65mm by 120mm by 23mm, crafted from durable chrome steel. It handles radial loads up to 24750 lbf and operates smoothly at speeds up to 9500 RPM.
Its single-row design with a brass cage ensures reliable performance, while the open seal allows for easy lubrication. The bearing works efficiently in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing 1.2kg, it offers a robust yet manageable solution for demanding environments. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Why Choose QJ 213 MA Bearing for Precision Tasks?
QJ 213 MA Bearing features a four-point contact design, allowing it to handle both radial and axial loads efficiently.
Its chrome steel rings and balls ensure durability and smooth operation under high stress.
The brass cage maintains ball alignment, reducing friction and extending the bearing’s life.
With a maximum speed of 9,500 rpm, it is suitable for high-speed applications.
QJ 213 MA Bearing operates in temperatures from -30° to 110°C, making it versatile for various environments.
Its P6 tolerance class ensures consistent performance in precision tasks.
Industrial Uses of QJ 213 MA Bearing
QJ 213 MA Bearing is commonly used in machine tools, where its four-point contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even at higher speeds, making it suitable for precision equipment.
Where Is QJ 213 MA Bearing Used?
In automotive applications, QJ 213 MA Bearing supports wheel hubs and transmission systems, providing reliable performance under varying loads. Its metric sizing and P6 tolerance make it a versatile choice for European and Asian vehicle models.
Built for Heavy-Duty Use: QJ 213 MA Bearing
QJ 213 MA Bearing excels in conveyor systems and heavy machinery, where its chrome steel construction offers durability. The open design allows for easy lubrication, extending its service life in demanding environments.
Automotive vs Aerospace: Applications of QJ 213 MA Bearing
In automotive systems, QJ 213 MA Bearing is ideal for gearboxes and drivetrains, while in aerospace, it supports auxiliary equipment with its high-speed capability. The bearing’s balanced load handling makes it adaptable across industries.
Perfect Fit for Automation: QJ 213 MA Bearing
QJ 213 MA Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and low friction are key. Its brass cage reduces wear, ensuring consistent performance in repetitive tasks.
"*" indicates required fields

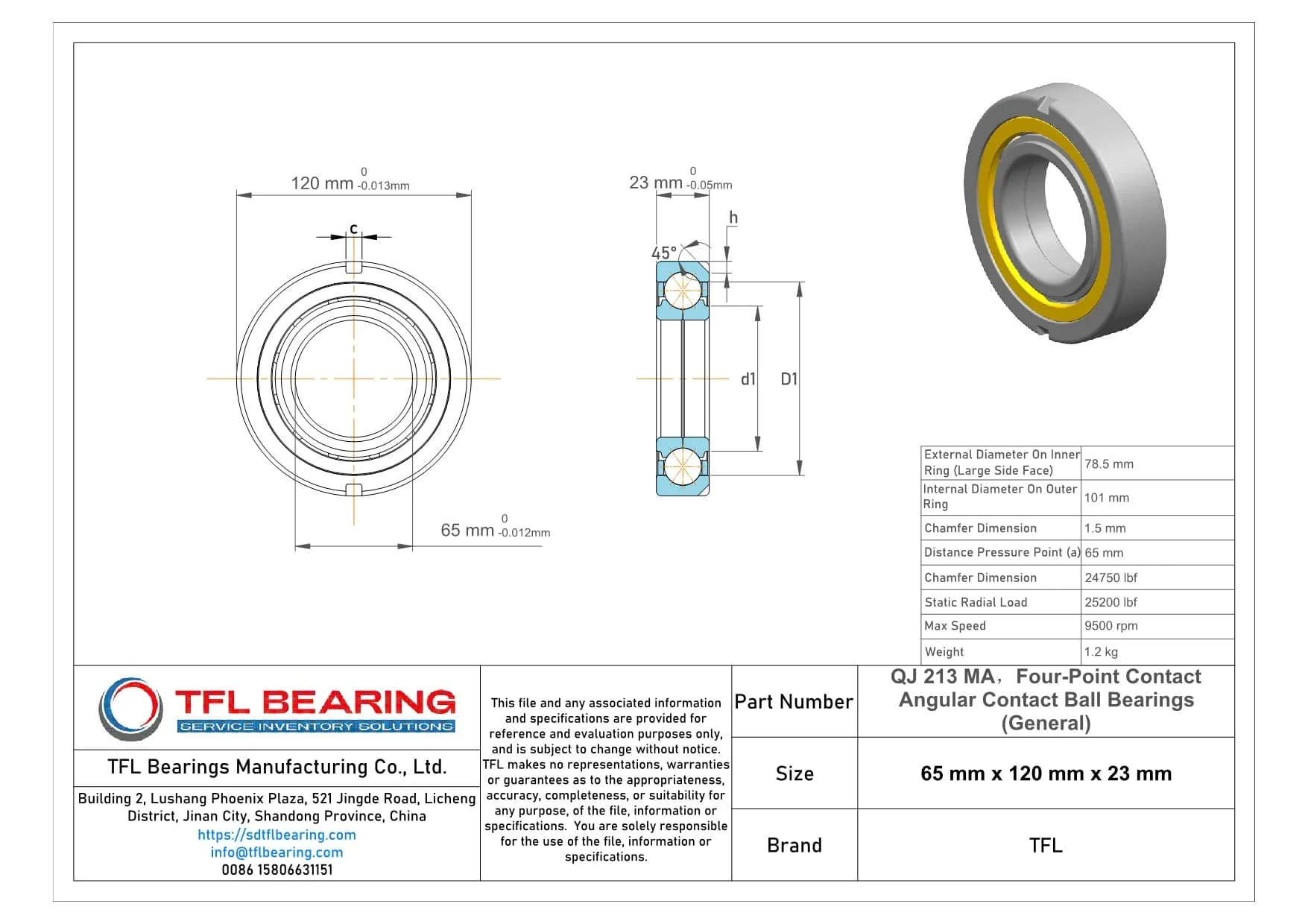

-QJ-213-MA-Drawing.webp)
