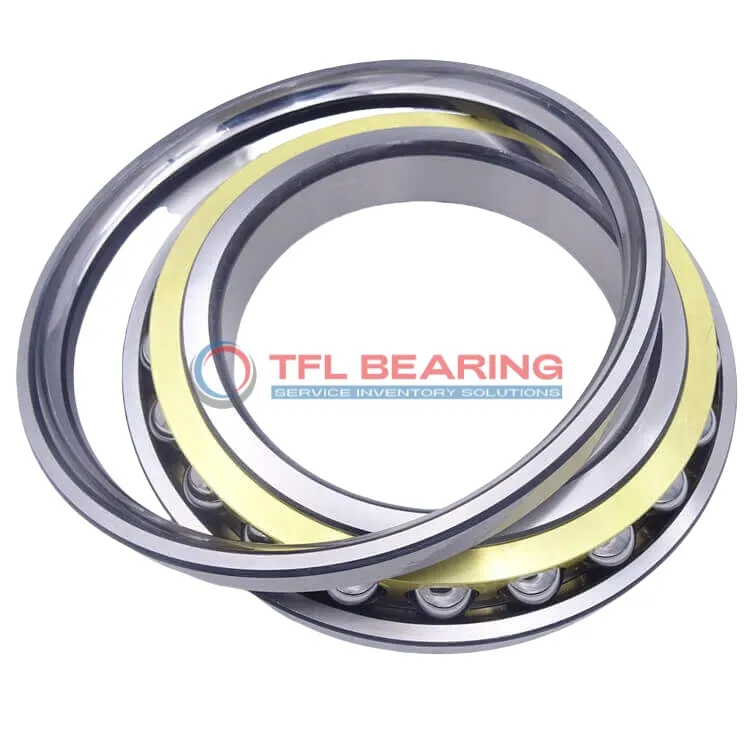

The QJ 206 MA is a four-point contact angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8438 lbf and operates smoothly at speeds up to 19,000 RPM.
Its single-row design and brass cage ensure durability, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. It suits applications like pumps or gearboxes where radial and axial loads are present.
Weighing just 0.24kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets industry safety requirements.
"*" indicates required fields
Performance Features of QJ 206 MA Bearing
QJ 206 MA Bearing is built with chrome steel rings and balls, offering robust performance under radial loads.
Its dynamic radial load capacity reaches 8438 lbf, making it suitable for demanding applications.
The brass cage ensures smooth operation by keeping the balls aligned, reducing friction and wear.
With a maximum speed of 19,000 rpm, it delivers both durability and efficiency.
QJ 206 MA Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.
The P6 tolerance class ensures precision, making it ideal for applications requiring high accuracy.
Its four-point contact design distributes loads evenly, enhancing reliability and longevity.
Where Is QJ 206 MA Bearing Used?
QJ 206 MA Bearing is commonly used in industrial machinery, especially in applications that require handling both radial and axial loads, such as gearboxes and pumps. Its four-point contact design ensures stability and smooth operation even under heavy loads.
In automotive systems, QJ 206 MA Bearing fits well in components like wheel hubs and transmissions, where its high-speed capability and durability are beneficial. The metric sizing makes it a versatile choice for various vehicle models.
For automation and robotics, QJ 206 MA Bearing’s precision and brass cage construction make it suitable for robotic arms and CNC machines. Its ability to handle combined loads ensures reliable performance in dynamic applications.
In household appliances, QJ 206 MA Bearing can be found in washing machines and air conditioners, where its quiet operation and long lifespan are appreciated. The chrome steel rings provide excellent resistance to wear and tear.
