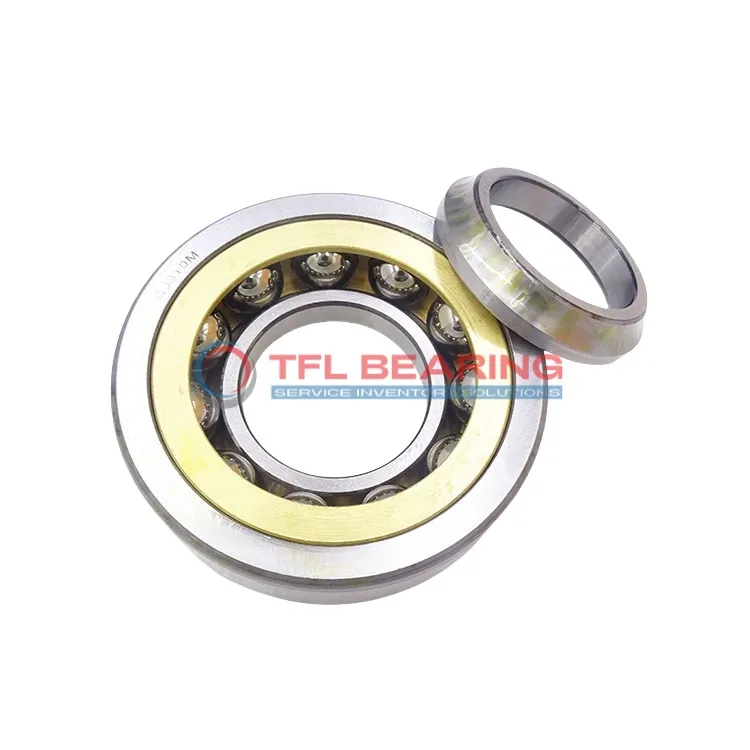

The QJ 1022 N2MA/C4 is a four-point contact angular contact ball bearing with a 110mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 34425 lbf and operates smoothly at speeds up to 6300 RPM.
Its open design and brass cage ensure durability and easy maintenance, while the P6 tolerance class offers reliable precision. The bearing performs well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like industrial gearboxes or heavy machinery where radial loads are prevalent.
Weighing 2.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of QJ 1022 N2MA/C4 Bearing
QJ 1022 N2MA/C4 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 34425 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth ball movement, reducing friction and enhancing longevity.
With a maximum speed of 6,300 rpm, it delivers reliable performance under high-speed conditions.
QJ 1022 N2MA/C4 Bearing operates efficiently in temperatures ranging from -30° to 110 °C.
Its open design allows for easy lubrication, ensuring consistent performance over time.
The precise P6 tolerance class guarantees high accuracy, ideal for demanding industrial uses.
Weighing just 2.5 kg, it combines strength with a manageable size for various installations.
Industrial Uses of QJ 1022 N2MA/C4 Bearing
QJ 1022 N2MA/C4 Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its four-point contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.
In automotive applications, QJ 1022 N2MA/C4 Bearing fits well in wheel hubs and transmission systems, offering reliable performance for both passenger and commercial vehicles. Its metric dimensions make it a versatile choice for various models.
For automation equipment, QJ 1022 N2MA/C4 Bearing provides precise movement in robotic arms and CNC machines, thanks to its angular contact design. The open seal type allows for easy lubrication, extending its service life.
Medical imaging devices also benefit from QJ 1022 N2MA/C4 Bearing’s stable performance, particularly in MRI machines where low vibration is essential. The chrome steel construction ensures durability in demanding environments.
In household appliances like washing machines, QJ 1022 N2MA/C4 Bearing supports rotating drums with minimal noise. Its balanced load capacity makes it suitable for everyday use.
