Flanged Deep Groove Ball Bearings W 635 R
Flanged Deep Groove Ball Bearings W 635 R

Flanged Deep Groove Ball Bearings W 635 R

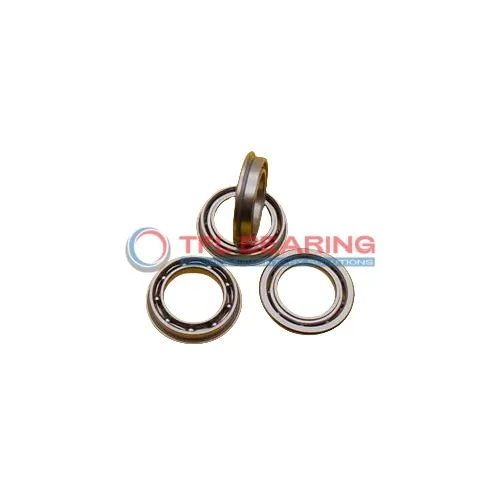

The W 635 R is a compact flanged deep groove ball bearing, measuring 5mm by 19mm with a 6mm width and a 22mm flange. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

It handles radial loads up to 456 lbf and can spin at speeds up to 56,000 RPM, making it suitable for high-speed applications. The open design allows for easy lubrication and maintenance.

The flange provides extra stability, helping the bearing stay securely in place during operation. Its lightweight design (just 8.6 grams) makes it ideal for small machinery or precision instruments.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for use in electric motors, small gearboxes, or other compact devices requiring reliable radial load support.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 635 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 456 lbf
  • Static Radial Load 198 lbf
  • Max Speed 56000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0086 kg
  • Price($) 1.7

Features

Why Choose W 635 R Bearing for Precision Tasks?

W 635 R Bearing features a stainless steel construction, ensuring durability and resistance to corrosion.
Its single-row design with open seal type allows for smooth radial load handling.

The flanged outer dia of 22 mm provides secure mounting, reducing misalignment risks.
With a maximum speed of 56,000 rpm, it delivers reliable performance in high-speed applications.

W 635 R Bearing’s compact size (5 mm×22 mm×6 mm) makes it ideal for precision instruments.
The stainless steel cage maintains ball alignment, extending the bearing’s service life.

Application

Industrial Uses of W 635 R Bearing
W 635 R Bearing is commonly used in small industrial equipment like conveyor rollers and packaging machines, where its compact size and stainless steel construction offer reliable performance. The flange design ensures easy mounting and alignment in tight spaces.

Where Is W 635 R Bearing Used?
In automotive applications, W 635 R Bearing fits well in components like electric window motors and small gearboxes, thanks to its radial load capacity and corrosion resistance. The metric dimensions make it versatile for various vehicle models.

Perfect Fit for Automation: W 635 R Bearing
For robotics and automation, W 635 R Bearing works smoothly in robotic arms and 3D printers, where precision and durability are key. Its open design allows for easy lubrication, extending service life in high-speed operations.

Medical vs Industrial: Where W 635 R Bearing Excels
In medical devices like dental tools and lab equipment, W 635 R Bearing’s stainless steel material ensures hygiene and long-term reliability. Industrial uses, however, benefit from its ability to handle radial loads in harsh environments.

Essential Roles of W 635 R Bearing
W 635 R Bearing is a go-to choice for consumer electronics like cooling fans and printers, where quiet operation and compact design matter. Its high-speed capability ensures efficient performance in everyday devices.
