Flanged Deep Groove Ball Bearings W 627/6 R-2Z
Flanged Deep Groove Ball Bearings W 627/6 R-2Z

Flanged Deep Groove Ball Bearings W 627/6 R-2Z

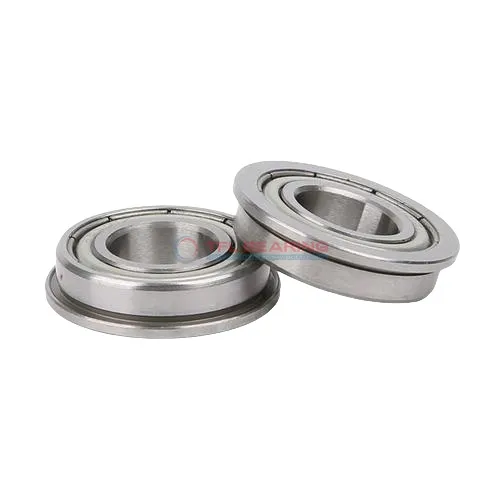

The W 627/6 R-2Z is a compact flanged deep groove ball bearing, measuring 6mm in bore and 11.2mm in outer diameter, with a slim 3mm width. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This bearing handles radial loads up to 64 lbf and can spin at speeds up to 60,000 RPM, making it suitable for high-speed applications. The shielded design helps keep dirt out while retaining lubrication.

Its small flange provides secure mounting in tight spaces, and the lightweight design (just 0.000817kg) is ideal for precision equipment. Works well in temperatures from -30°C to 120°C.

Perfect for small motors, medical devices, or instruments where space is limited. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 627/6 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 11.2 mm
  • Flange Thickness 0.6 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 64 lbf
  • Static Radial Load 25 lbf
  • Max Speed 60000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.000817 kg
  • Price($) 2

Features

How Does W 627/6 R-2Z Bearing Reduce Friction?

W 627/6 R-2Z Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, further reducing wear and enhancing efficiency.

The single-row construction of W 627/6 R-2Z Bearing provides reliable radial load support, making it suitable for compact applications.
With a maximum speed of 60,000 rpm, it delivers consistent performance in high-speed environments.

W 627/6 R-2Z Bearing’s flange design ensures secure mounting, preventing misalignment and reducing operational stress.
Its compact size and lightweight construction make it ideal for precision instruments and small machinery.

Application

Industrial Uses of W 627/6 R-2Z Bearing
W 627/6 R-2Z Bearing is commonly used in small industrial motors and pumps, where its compact size and shielded design help keep out contaminants. The stainless steel construction ensures it can handle moderate radial loads without corrosion issues.

Where Is W 627/6 R-2Z Bearing Used?
You’ll often spot W 627/6 R-2Z Bearing in precision instruments like dental drills or small lab equipment, thanks to its smooth operation at high speeds. Its flanged design also makes installation easier in tight spaces.

Built for Heavy-Duty Use: W 627/6 R-2Z Bearing
Despite its small size, W 627/6 R-2Z Bearing works well in demanding applications like conveyor belt guides or textile machinery. The grease lubrication ensures long service life even with constant movement.

Automotive vs Aerospace: Applications of W 627/6 R-2Z Bearing
In automotive settings, W 627/6 R-2Z Bearing fits well in dashboard controls or small actuators, while its lightweight build also suits drone components. The metric sizing makes it versatile for various engineering needs.

Perfect Fit for Automation: W 627/6 R-2Z Bearing
W 627/6 R-2Z Bearing shines in robotic joints and 3D printer parts where precision and reliability matter. The shielded design keeps dust away, reducing maintenance needs in automated systems.
