Flanged Deep Groove Ball Bearings W 607 R-2Z
Flanged Deep Groove Ball Bearings W 607 R-2Z

Flanged Deep Groove Ball Bearings W 607 R-2Z

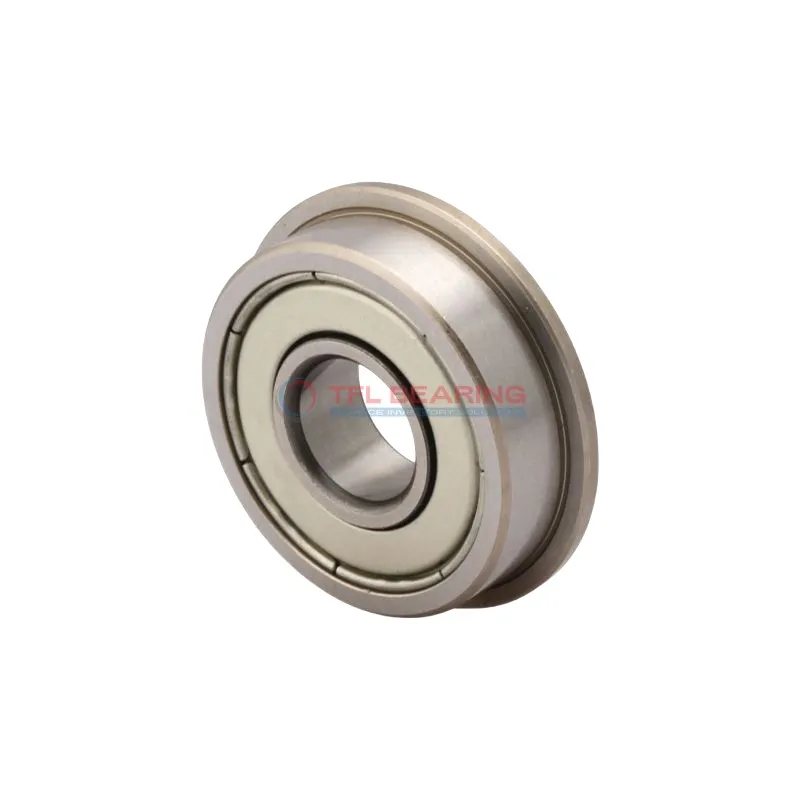

The W 607 R-2Z is a compact flanged deep groove ball bearing, measuring 7mm by 19mm with a 6mm width. Its stainless steel construction offers good resistance to wear and corrosion.

The bearing handles radial loads up to 344 lbf and can spin at speeds up to 43,000 RPM, making it suitable for fast-moving applications. The shielded design helps keep grease in and contaminants out.

With its 22mm flange, this bearing stays securely positioned in assemblies. It’s interchangeable with SKF models for easy replacement.

Ideal for small machinery, electric motors, or appliances where space is limited. Works in temperatures from -30°C to 120°C and meets RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number W 607 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 344 lbf
  • Static Radial Load 132 lbf
  • Max Speed 43000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0084 kg
  • Price($) 2

Features

How Does W 607 R-2Z Bearing Reduce Friction?

W 607 R-2Z Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The single-row construction of W 607 R-2Z Bearing provides reliable radial load support.
With a dynamic radial load capacity of 344 lbf, it handles everyday demands with ease.

W 607 R-2Z Bearing’s grease lubrication reduces wear, extending its service life.
It operates quietly, making it suitable for applications where noise reduction is important.

The flanged design of W 607 R-2Z Bearing simplifies installation and positioning.
Its compact size and lightweight construction make it ideal for space-constrained applications.

Application

Common Applications of W 607 R-2Z Bearing
W 607 R-2Z Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its shielded design helps keep out dust and debris, ensuring smooth operation over time.

How Does W 607 R-2Z Bearing Improve Performance?
In automation systems, W 607 R-2Z Bearing provides reliable support for lightweight robotic arms and conveyor belts. The stainless steel construction offers good corrosion resistance, making it suitable for humid environments.

Built for Heavy-Duty Use: W 607 R-2Z Bearing
W 607 R-2Z Bearing works well in power tools, where its compact size and radial load capacity handle high-speed rotations. The flange design adds stability, preventing misalignment during intense use.

Medical vs Industrial: Where W 607 R-2Z Bearing Excels
W 607 R-2Z Bearing is a common choice for medical pumps and lab equipment due to its precision and cleanliness. In industrial settings, it’s often found in packaging machines, where durability and low maintenance are key.
