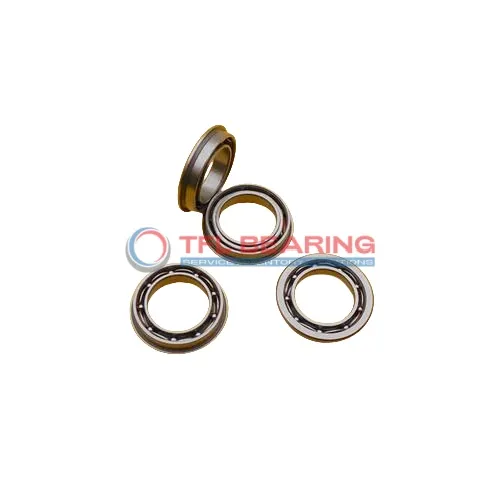

The D/W R1-5 R is a compact flanged deep groove ball bearing, measuring just 0.0937″ in bore diameter and 0.35902″ in outer diameter. Made entirely from stainless steel, it offers good corrosion resistance and durability.
This bearing handles radial loads up to 70 lbf and can spin at speeds up to 95,000 RPM, making it suitable for high-speed applications. Its open design allows for easy lubrication when needed.
The integrated flange provides secure mounting, helping the bearing stay in place during operation. With a temperature range of -30°C to 120°C, it works well in various environments.
Ideal for small machinery or instruments where space is limited, this lightweight bearing weighs only 0.0007kg. It’s interchangeable with SKF bearings and complies with RoHS and REACH standards.
"*" indicates required fields
Why Choose D/W R1-5 R Bearing for Precision Tasks?
D/W R1-5 R Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its compact size of 0.0937″×0.35902″×0.10941″ makes it ideal for applications where space is limited.
The open design allows for easy lubrication, ensuring smooth operation even at high speeds up to 95,000 rpm.
With a dynamic radial load capacity of 70 lbf, it handles light to moderate loads efficiently.
The flange outer dia of 0.35902″ provides secure mounting, reducing the risk of misalignment.
Its temperature range of -30° to 120 °C ensures reliable performance in varied environments.
Common Applications of D/W R1-5 R Bearing
D/W R1-5 R Bearing is commonly used in small industrial equipment, such as compact motors and precision instruments, where its stainless steel construction offers good corrosion resistance. The flanged design helps with easy mounting and alignment in tight spaces.
In consumer electronics, D/W R1-5 R Bearing can be found in devices like small fans or printers, where its radial load capacity ensures smooth operation. The inch sizing makes it compatible with various North American and UK-made appliances.
For automation systems, D/W R1-5 R Bearing works well in lightweight robotic arms or 3D printers, thanks to its high-speed capability and low friction. The open seal type allows for straightforward lubrication if needed.
Medical devices like handheld diagnostic tools often use D/W R1-5 R Bearing due to its reliable performance and hygienic stainless steel materials. The compact dimensions make it ideal for space-constrained applications.
