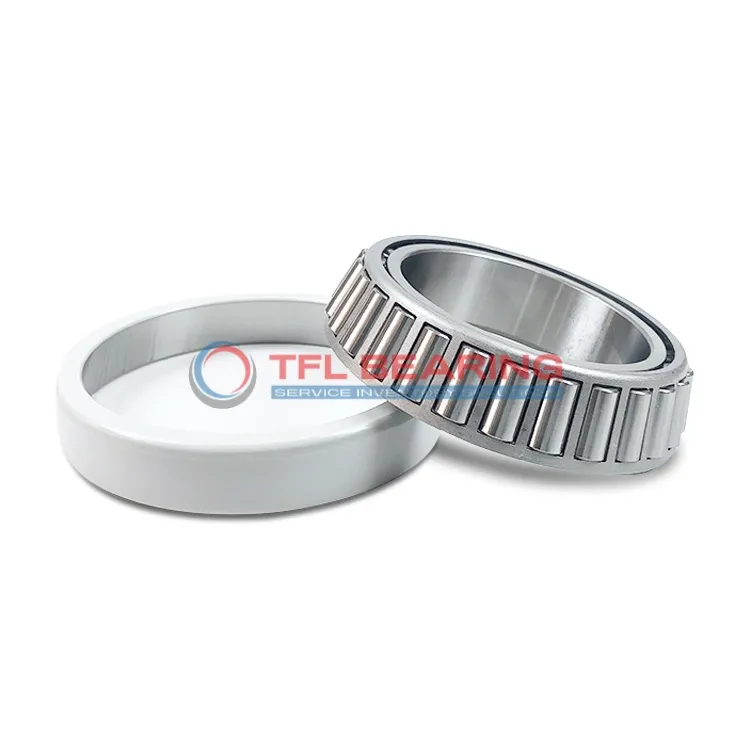

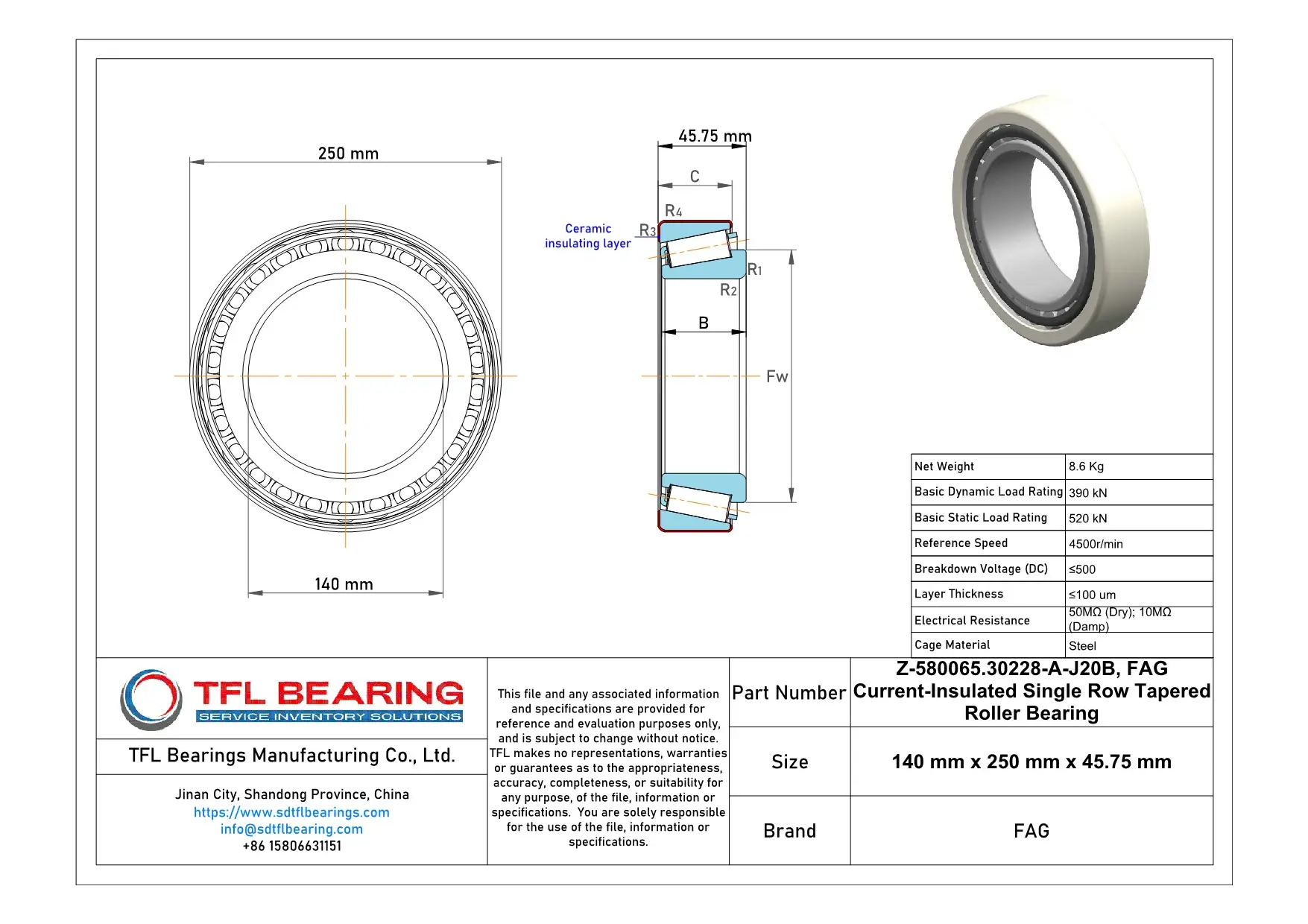

The FAG Z-580065.30228-A-J20B is a current-insulated tapered roller bearing, measuring 140mm by 250mm by 45.75mm. Its outer ring features a ceramic coating for electrical insulation, making it ideal for environments with stray currents.
With a dynamic load rating of 390 kN and a static load rating of 520 kN, it handles heavy loads efficiently. The bearing can reach speeds up to 4500 RPM, ensuring smooth operation in demanding applications.
The steel cage enhances durability, while the insulating coating prevents electrical damage. It’s suitable for use in electric motors or generators where electrical resistance is crucial.
Weighing 8.6 kg, it’s robust yet manageable for installation. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial and electrical applications.
"*" indicates required fields
How Is Z-580065.30228-A-J20B Bearing Engineered for Reliability?
Z-580065.30228-A-J20B Bearing features a ceramic-coated outer ring, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrical applications.
With a dynamic load rating of 390 kN, it handles heavy loads while maintaining stability.
The steel cage ensures smooth operation, even at high speeds up to 4,500 rpm.
What Makes Z-580065.30228-A-J20B Bearing Suitable for High-Temperature Applications?
Z-580065.30228-A-J20B Bearing’s ceramic coating offers resistance to high temperatures and electrical currents.
Its robust construction supports a static load rating of 520 kN, ensuring durability.
The coating maintains an electrical resistance of 50MΩ when dry, enhancing safety.
This makes it ideal for industrial environments with demanding electrical conditions.
Built for Reliability: Z-580065.30228-A-J20B Bearing
Z-580065.30228-A-J20B Bearing is designed for long-lasting performance in electrical applications.
The ceramic insulation layer prevents arcing, protecting the bearing from electrical damage.
Its high dynamic and static load ratings ensure reliable operation under stress.
The steel cage keeps components aligned, reducing wear and extending service life.
Steel vs Ceramic Bearings: Strengths of Z-580065.30228-A-J20B Bearing
Z-580065.30228-A-J20B Bearing combines steel durability with ceramic insulation benefits.
The outer ring’s ceramic coating ensures electrical resistance up to 50MΩ when dry.
This hybrid design offers both mechanical strength and protection against electrical currents.
With a reference speed of 4,500 rpm, it balances performance and safety.
Industrial Uses of Z-580065.30228-A-J20B Bearing
This bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The ceramic outer ring coating ensures reliable performance in high-voltage environments.
In wind turbine applications, Z-580065.30228-A-J20B Bearing handles both radial and axial loads efficiently. Its steel cage provides durability in variable weather conditions.
For railway traction systems, this bearing’s insulation properties protect against stray currents. The 390 kN dynamic load rating makes it suitable for heavy-duty use.
What Makes Z-580065.30228-A-J20B Bearing a Preferred Choice?
Its combination of electrical insulation and mechanical strength works well in industrial pumps. The 45.75 mm width offers stability in compact spaces.
The bearing’s 10MΩ damp resistance ensures safety in humid conditions. This feature is particularly useful in marine applications.
Built for Heavy-Duty Use: Z-580065.30228-A-J20B Bearing
In steel mill equipment, this bearing withstands both high loads and electrical interference. The 520 kN static load rating guarantees long service life.
The 4500r/min reference speed makes it suitable for high-speed applications. Its compliance with ROHS and REACH standards adds environmental benefits.
Automotive vs Aerospace: Applications of Z-580065.30228-A-J20B Bearing
In electric vehicles, it prevents current leakage in motor systems. The 140 mm bore diameter fits common EV motor shafts.
For aircraft ground power units, the bearing’s insulation properties protect sensitive electronics. Its 8.6 kg weight is manageable for aviation applications.
