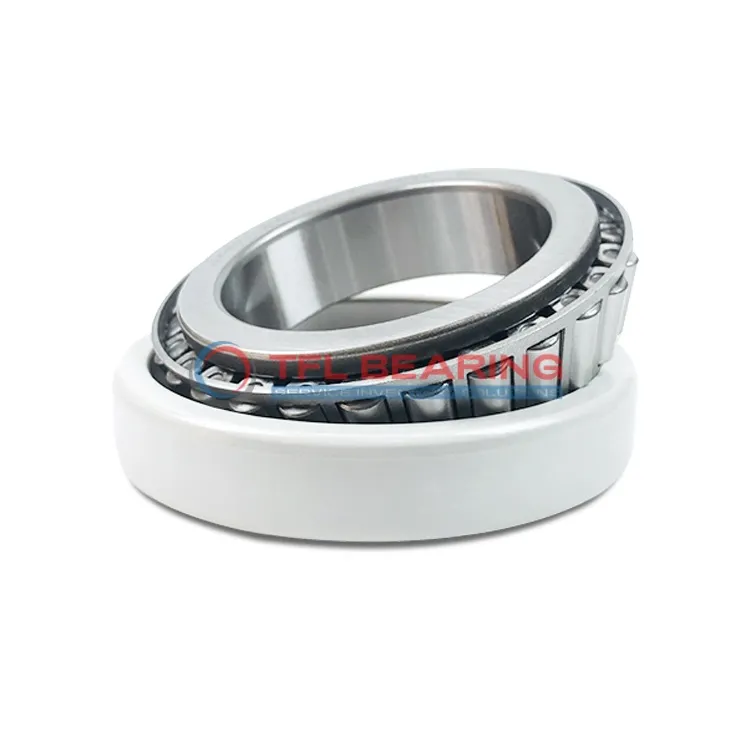

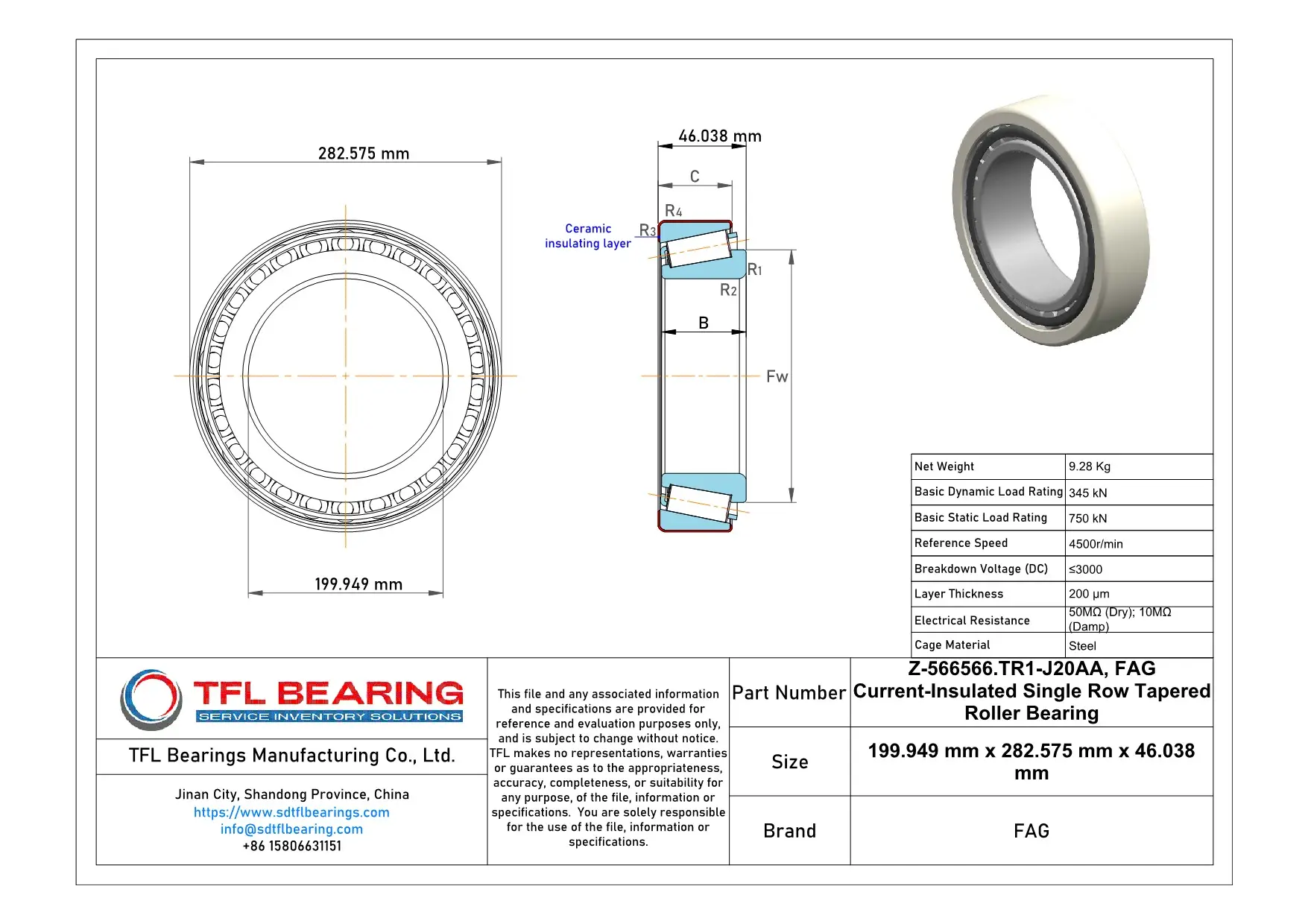

The FAG Z-566566.TR1-J20AA is a current-insulated tapered roller bearing with a 199.9mm bore and 282.6mm outer diameter, featuring a ceramic-coated outer ring. It handles dynamic loads up to 345 kN and static loads up to 750 kN, with a reference speed of 4500 RPM.
The steel cage ensures durability, while the 200µm insulating layer provides electrical resistance up to 50MΩ when dry. This design prevents current damage in electric motors or generators.
Its compact 46mm width makes it suitable for space-constrained applications. The bearing is ROHS and REACH compliant for safe industrial use.
Weighing 9.28kg, it’s robust yet manageable for installation in heavy machinery or wind turbines where electrical insulation is crucial.
"*" indicates required fields
How Is Z-566566.TR1-J20AA Bearing Engineered for Reliability?
Z-566566.TR1-J20AA Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design ensures reliable performance in environments where electrical currents could cause damage.
With a basic dynamic load rating of 345 kN, it handles heavy loads efficiently.
The steel cage maintains roller alignment, enhancing durability and reducing wear.
Z-566566.TR1-J20AA Bearing operates smoothly at speeds up to 4500r/min.
Its robust construction makes it suitable for demanding industrial applications.
The insulating coating offers a breakdown voltage of ≤3000, ensuring safety.
This makes Z-566566.TR1-J20AA Bearing ideal for use in electrical machinery.
Industrial Uses of Z-566566.TR1-J20AA Bearing
Z-566566.TR1-J20AA Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial fans, where its current-insulated design prevents electrical damage. The ceramic coating on the outer ring ensures reliable performance in environments with stray currents.
What Makes Z-566566.TR1-J20AA Bearing a Preferred Choice?
In wind turbines, Z-566566.TR1-J20AA Bearing handles high radial and axial loads while resisting electrical arcing. Its steel cage and robust construction make it suitable for long-term use in demanding conditions.
Built for Heavy-Duty Use: Z-566566.TR1-J20AA Bearing
Z-566566.TR1-J20AA Bearing excels in railway applications, particularly in traction motors, where its insulation properties protect against electrical currents. The high dynamic load rating ensures durability under constant stress.
Automotive vs Aerospace: Applications of Z-566566.TR1-J20AA Bearing
In electric vehicles, Z-566566.TR1-J20AA Bearing supports motors by preventing current leakage, while in aerospace, its precision and insulation are valued for avionics systems. The wide temperature range adds to its versatility.
Perfect Fit for Automation: Z-566566.TR1-J20AA Bearing
Z-566566.TR1-J20AA Bearing is ideal for robotic arms in automated factories, where its insulation reduces downtime caused by electrical faults. The compact design fits seamlessly into high-precision machinery.
