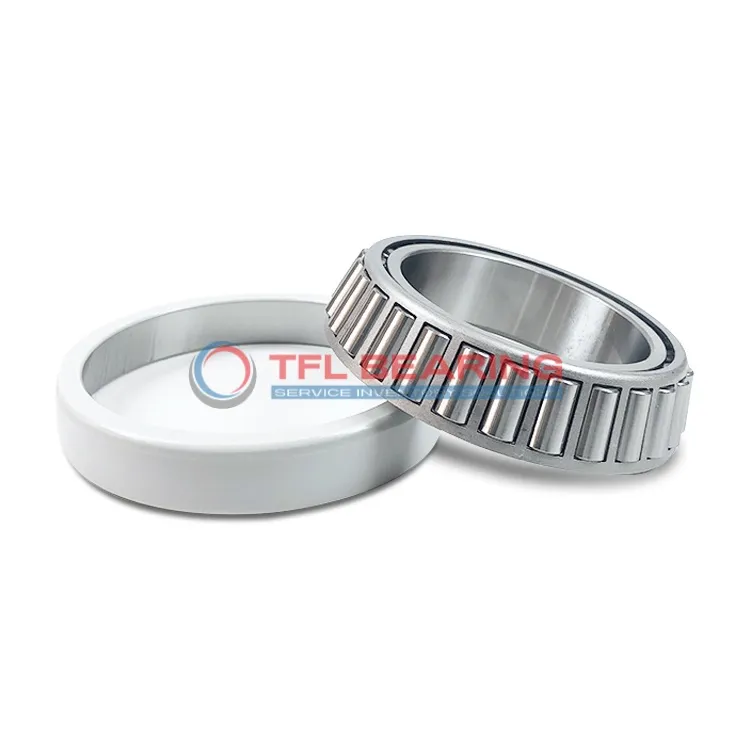

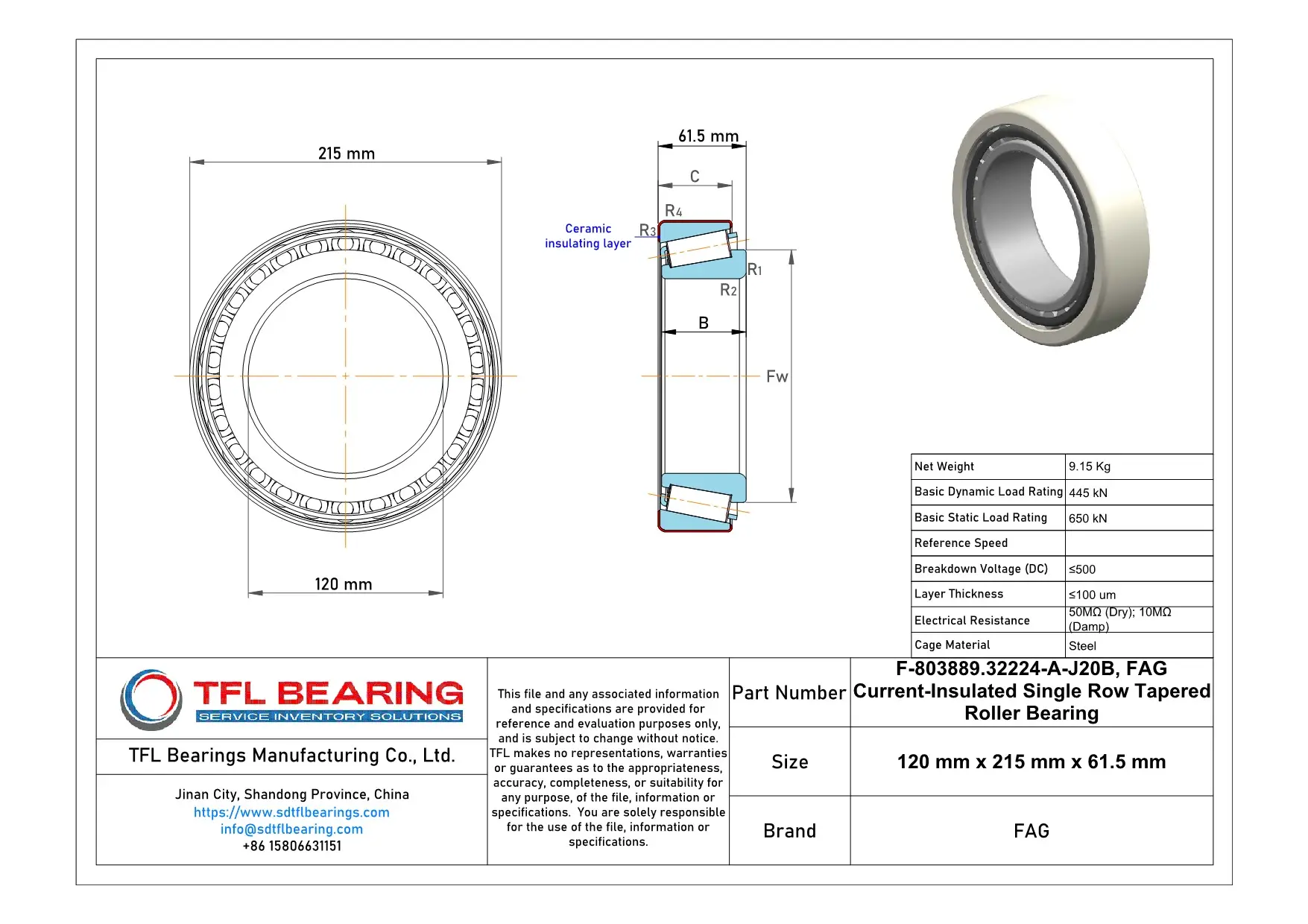

The FAG F-803889.32224-A-J20B is a current-insulated tapered roller bearing, measuring 120mm in bore diameter and 215mm outside diameter, with a width of 61.5mm. Its outer ring features a ceramic coating for electrical insulation, making it ideal for applications where stray currents are a concern.
This bearing can handle dynamic loads up to 445 kN and static loads up to 650 kN, ensuring reliable performance under heavy-duty conditions. The steel cage provides durability and stability during operation.
The insulating coating offers a breakdown voltage of up to 500V DC and maintains high electrical resistance, even in damp conditions (10MΩ). It’s compliant with RoHS and REACH standards for environmental safety.
Weighing 9.15 kg, this bearing is suited for industrial machinery, wind turbines, or electric motors where electrical insulation is critical. Its robust design ensures long service life in demanding environments.
"*" indicates required fields
How Is F-803889.32224-A-J20B Bearing Engineered for Reliability?
F-803889.32224-A-J20B Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design ensures reliable performance in environments with electrical currents.
The steel cage maintains proper roller alignment, enhancing durability under heavy loads.
With a basic dynamic load rating of 445 kN, it handles demanding applications with ease.
F-803889.32224-A-J20B Bearing’s insulating coating has a breakdown voltage of ≤500 DC, ensuring safety.
Its electrical resistance remains stable, even in damp conditions.
The tapered roller design distributes loads evenly, reducing wear and extending service life.
This makes F-803889.32224-A-J20B Bearing a dependable choice for industrial applications.
Industrial Uses of F-803889.32224-A-J20B Bearing
F-803889.32224-A-J20B Bearing is commonly used in industrial motors and generators, where its current-insulating coating prevents electrical damage. The ceramic outer ring coating ensures reliable performance in high-voltage environments.
Where Is F-803889.32224-A-J20B Bearing Used?
You’ll often find F-803889.32224-A-J20B Bearing in wind turbines, where it handles both radial and axial loads efficiently. Its steel cage adds durability, making it suitable for long-term use in harsh conditions.
Built for Heavy-Duty Use: F-803889.32224-A-J20B Bearing
F-803889.32224-A-J20B Bearing excels in mining equipment, thanks to its high static and dynamic load ratings. The insulating properties also make it a safe choice for electrically charged machinery.
Automotive vs Aerospace: Applications of F-803889.32224-A-J20B Bearing
In automotive applications, F-803889.32224-A-J20B Bearing is used in hybrid vehicle motors, where insulation is critical. For aerospace, its precision and reliability make it suitable for auxiliary power units.
Perfect Fit for Automation: F-803889.32224-A-J20B Bearing
F-803889.32224-A-J20B Bearing is ideal for robotic arms in automated factories, offering smooth rotation under heavy loads. The ceramic coating also reduces the risk of electrical interference in sensitive systems.
