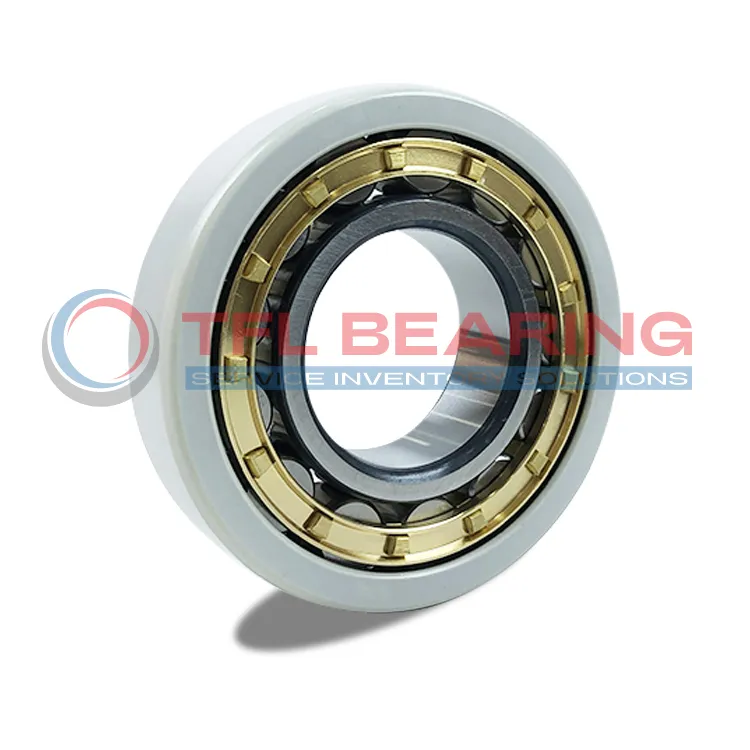

The FAG NUP230-E-M1-J20AA-C3 is a current-insulated cylindrical roller bearing with a 150mm bore and 270mm outer diameter, designed for heavy-duty applications. Its outer ring features a ceramic coating to prevent electrical arcing, making it ideal for use in electric motors or generators.
With a dynamic load rating of 520 kN and a static load rating of 590 kN, it handles high radial loads efficiently. The brass cage ensures smooth operation at speeds up to 2350 RPM, even in demanding conditions.
The C3 radial clearance allows for thermal expansion, while the insulating coating offers a breakdown voltage of up to 1000V. This makes it suitable for environments where electrical currents could damage standard bearings.
Weighing 12.4 kg, it’s robust yet manageable for installation. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial machinery requiring electrical insulation.
"*" indicates required fields
How Is NUP230-E-M1-J20AA-C3 Bearing Engineered for Reliability?
NUP230-E-M1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.
The brass cage ensures stable operation, even at high speeds up to 2350r/min.
With a basic dynamic load rating of 520 kN, it handles heavy loads reliably.
What Makes NUP230-E-M1-J20AA-C3 Bearing Suitable for High-Temperature Applications?
NUP230-E-M1-J20AA-C3 Bearing’s ceramic coating offers high resistance to electrical currents and heat.
Its robust construction maintains performance under heavy loads, with a static load rating of 590 kN.
The brass cage enhances durability, ensuring smooth operation in demanding conditions.
This bearing is ideal for applications where electrical insulation and high performance are required.
Built for Reliability: NUP230-E-M1-J20AA-C3 Bearing
NUP230-E-M1-J20AA-C3 Bearing is designed with a ceramic-coated outer ring for superior insulation.
Its brass cage provides stability and reduces wear, even at high rotational speeds.
The bearing’s C3 radial clearance allows for thermal expansion, ensuring consistent performance.
With a breakdown voltage of ≤1000v, it is highly resistant to electrical damage.
Steel vs Ceramic Bearings: Strengths of NUP230-E-M1-J20AA-C3 Bearing
NUP230-E-M1-J20AA-C3 Bearing combines ceramic coating with steel construction for optimal performance.
The ceramic layer ensures electrical insulation, while the steel core provides strength and durability.
Its brass cage maintains alignment, reducing friction and extending service life.
This bearing is ideal for applications requiring both mechanical reliability and electrical safety.
Industrial Uses of NUP230-E-M1-J20AA-C3 Bearing
NUP230-E-M1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NUP230-E-M1-J20AA-C3 Bearing a Preferred Choice?
In wind turbines, NUP230-E-M1-J20AA-C3 Bearing handles heavy radial loads while its ceramic coating protects against electrical damage. The C3 clearance allows for thermal expansion in demanding environments.
Built for Heavy-Duty Use: NUP230-E-M1-J20AA-C3 Bearing
NUP230-E-M1-J20AA-C3 Bearing works well in industrial gearboxes, where its high dynamic load rating ensures longevity. The damp electrical resistance of 10MΩ makes it reliable in humid conditions.
Automotive vs Aerospace: Applications of NUP230-E-M1-J20AA-C3 Bearing
In automotive drivetrains, NUP230-E-M1-J20AA-C3 Bearing supports shafts with precision, while its insulation suits hybrid vehicles. For aerospace, its lightweight design and reliability are beneficial in auxiliary systems.
Perfect Fit for Automation: NUP230-E-M1-J20AA-C3 Bearing
NUP230-E-M1-J20AA-C3 Bearing is ideal for robotic arms in automated production lines, offering both electrical insulation and load capacity. The 45mm width provides a compact solution for tight spaces.
