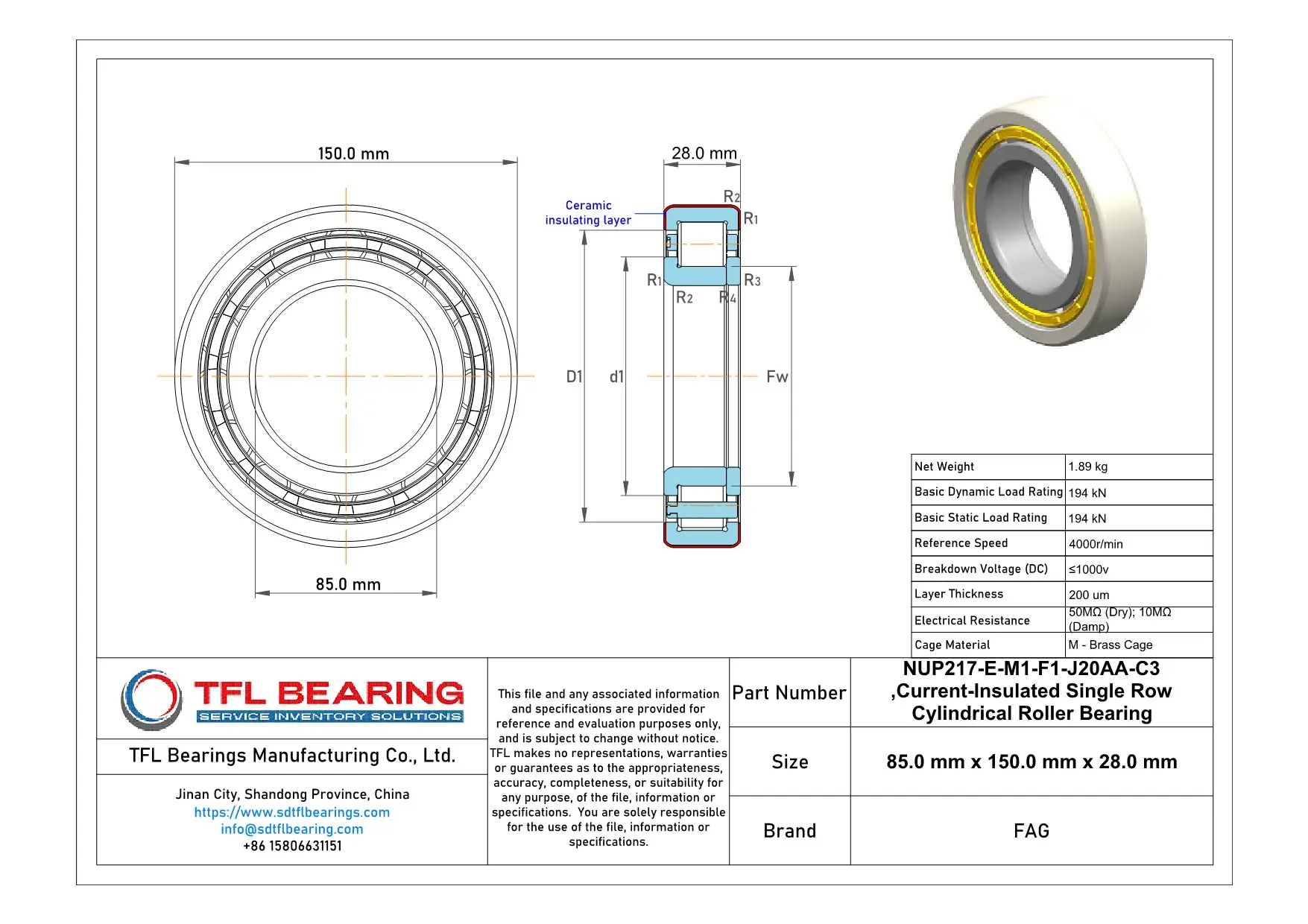

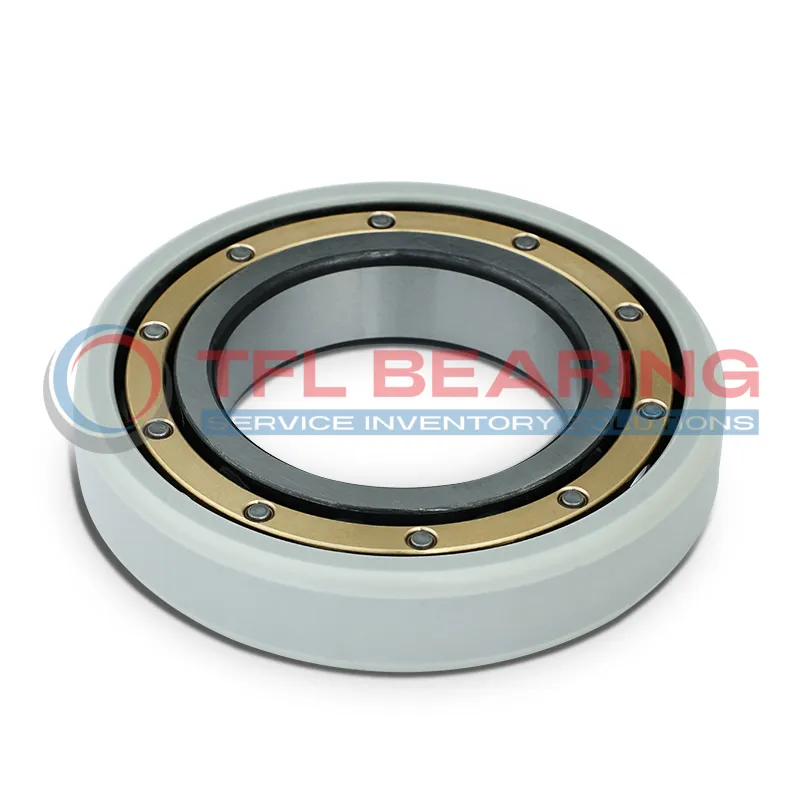

The FAG NUP217-E-M1-F1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 85mm bore, 150mm outer diameter, and 28mm width. Its outer ring features a ceramic coating to prevent electrical arcing, making it ideal for electric motor applications.
With a dynamic load rating of 194 kN, it handles heavy radial loads while maintaining smooth operation at speeds up to 4000 rpm. The brass cage ensures durability and stable performance under demanding conditions.
The insulating coating provides high electrical resistance (50MΩ dry) and can withstand voltages up to 1000V. This makes it perfect for use in generators or industrial machinery where electrical currents could damage standard bearings.
Weighing 1.89kg, it offers robust performance in a compact design. Compliant with RoHS and REACH standards, it’s a reliable choice for both replacements and new installations.
"*" indicates required fields
Why Choose NUP217-E-M1-F1-J20AA-C3 Bearing for Precision Tasks?
NUP217-E-M1-F1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, making it ideal for precision applications where electrical interference is a concern.
The brass cage ensures smooth operation and reduces friction, enhancing the bearing’s performance.
With a basic dynamic load rating of 194 kN, it handles heavy loads efficiently.
NUP217-E-M1-F1-J20AA-C3 Bearing operates at speeds up to 4000r/min, balancing speed and durability.
Its C3 radial internal clearance allows for thermal expansion in demanding conditions.
The coating offers high electrical resistance, with 50MΩ when dry and 10MΩ in damp environments.
This ensures reliable performance even in varying humidity levels.
NUP217-E-M1-F1-J20AA-C3 Bearing’s compact design and 1.89 kg weight make it easy to integrate into systems.
Its compliance with ROHS and REACH standards ensures environmental and safety adherence.
Industrial Uses of NUP217-E-M1-F1-J20AA-C3 Bearing
NUP217-E-M1-F1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulated design prevents electrical arcing. The ceramic coating on the outer ring ensures reliable performance in environments with stray currents.
Where Is NUP217-E-M1-F1-J20AA-C3 Bearing Used?
You’ll often find NUP217-E-M1-F1-J20AA-C3 Bearing in wind turbines and industrial drives, thanks to its ability to handle high dynamic loads. The brass cage adds durability, making it suitable for heavy machinery.
Built for Heavy-Duty Use: NUP217-E-M1-F1-J20AA-C3 Bearing
NUP217-E-M1-F1-J20AA-C3 Bearing excels in conveyor systems and rolling mills, where its C3 clearance accommodates thermal expansion. The 194 kN load rating ensures it can withstand demanding conditions.
Automotive vs Aerospace: Applications of NUP217-E-M1-F1-J20AA-C3 Bearing
In automotive applications, NUP217-E-M1-F1-J20AA-C3 Bearing is used in hybrid vehicle drivetrains for its insulation properties. For aerospace, it’s valued in auxiliary power units where electrical resistance is critical.
Perfect Fit for Automation: NUP217-E-M1-F1-J20AA-C3 Bearing
NUP217-E-M1-F1-J20AA-C3 Bearing is ideal for robotic arms and CNC machines, offering smooth operation under high speeds. Its 4000r/min reference speed makes it a reliable choice for precision equipment.
