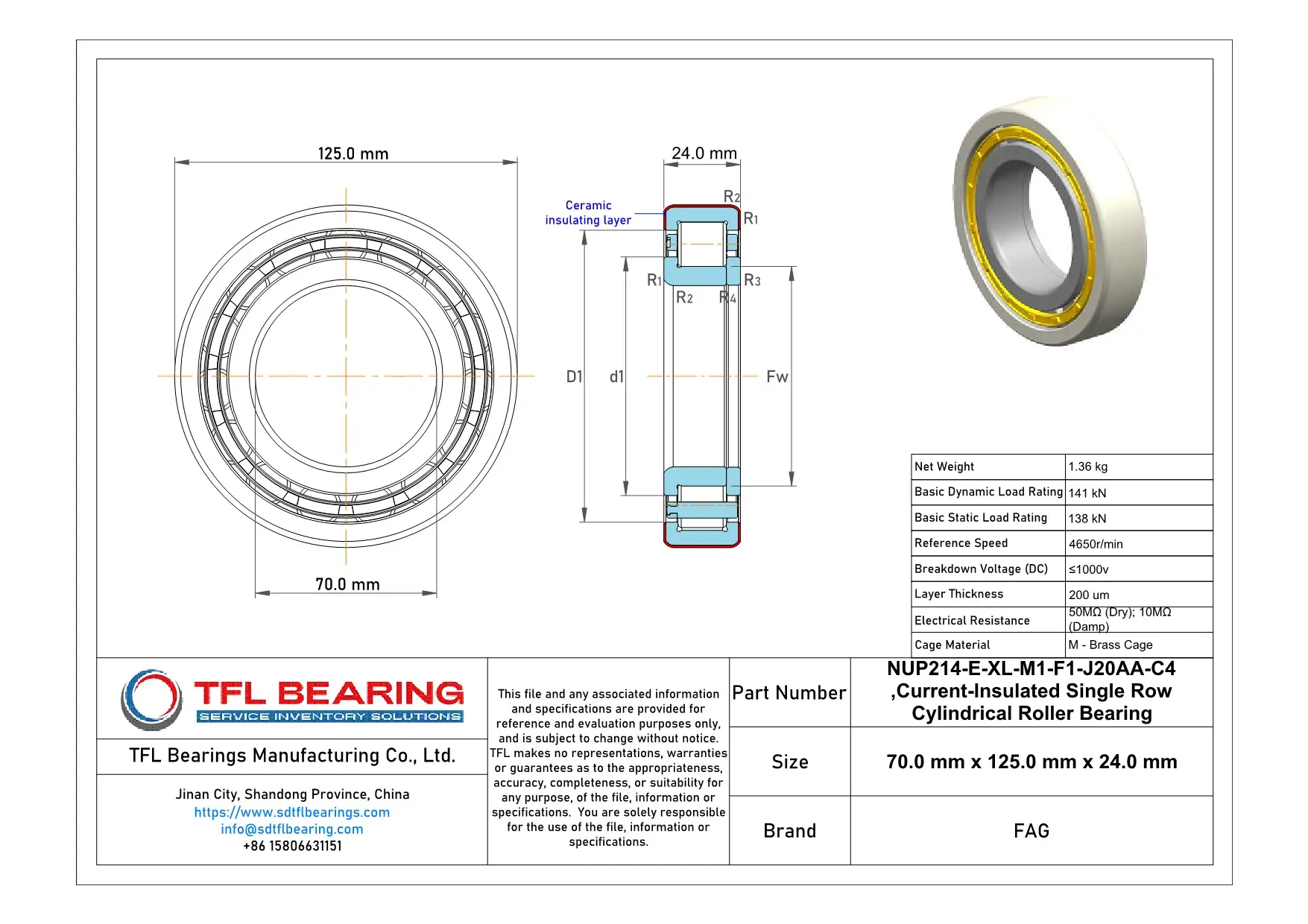

The FAG NUP214-E-XL-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 70mm bore and 125mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 1000V DC, ideal for electric motors or generators.
With a dynamic load rating of 141 kN and a static load rating of 138 kN, it handles heavy radial loads efficiently. The brass cage ensures smooth operation at speeds up to 4650 rpm, even in demanding conditions.
The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. Its compact 24mm width and 1.36kg weight make it easy to integrate into various setups.
Compliant with RoHS and REACH standards, this bearing is a reliable choice for industries where electrical insulation and durability are key, such as wind turbines or industrial machinery.
"*" indicates required fields
Why Choose NUP214-E-XL-M1-F1-J20AA-C4 Bearing for Precision Tasks?
NUP214-E-XL-M1-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, making it ideal for precision applications where electrical interference is a concern.
The brass cage ensures smooth operation and reduces friction, enhancing overall performance.
With a basic dynamic load rating of 141 kN, it handles heavy loads efficiently.
How Is NUP214-E-XL-M1-F1-J20AA-C4 Bearing Engineered for Reliability?
NUP214-E-XL-M1-F1-J20AA-C4 Bearing’s ceramic coating offers high electrical resistance, up to 50MΩ when dry.
Its C4 radial internal clearance allows for thermal expansion, ensuring reliability in varying conditions.
The brass cage maintains ball alignment, reducing wear and extending service life.
With a reference speed of 4650r/min, it balances speed and durability.
Built for Reliability: NUP214-E-XL-M1-F1-J20AA-C4 Bearing
NUP214-E-XL-M1-F1-J20AA-C4 Bearing is designed with a ceramic-coated outer ring, ensuring electrical insulation.
The brass cage minimises friction, contributing to smoother operation and longer life.
Its high dynamic load rating of 141 kN makes it suitable for demanding applications.
The bearing also complies with ROHS and REACH standards, ensuring environmental safety.
Steel vs Ceramic Bearings: Strengths of NUP214-E-XL-M1-F1-J20AA-C4 Bearing
NUP214-E-XL-M1-F1-J20AA-C4 Bearing’s ceramic coating provides superior electrical insulation compared to standard steel bearings.
This feature prevents electrical arcing, making it ideal for use in electric motors and generators.
The brass cage enhances durability and reduces operational noise.
With a breakdown voltage of ≤1000v, it ensures safe performance in high-voltage environments.
Industrial Uses of NUP214-E-XL-M1-F1-J20AA-C4 Bearing
NUP214-E-XL-M1-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents damage from stray currents. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NUP214-E-XL-M1-F1-J20AA-C4 Bearing a Preferred Choice?
In wind turbines, NUP214-E-XL-M1-F1-J20AA-C4 Bearing handles heavy radial loads while its ceramic coating protects against electrical erosion. Its C4 clearance allows for thermal expansion in demanding environments.
Perfect Fit for Automation: NUP214-E-XL-M1-F1-J20AA-C4 Bearing
NUP214-E-XL-M1-F1-J20AA-C4 Bearing works well in robotic arms, offering reliable performance with minimal maintenance. The XL design provides extra load capacity for precision movements.
Medical vs Industrial: Where NUP214-E-XL-M1-F1-J20AA-C4 Bearing Excels
NUP214-E-XL-M1-F1-J20AA-C4 Bearing suits industrial gearboxes better than medical devices due to its robust construction. The ceramic outer ring coating adds durability in harsh conditions.
