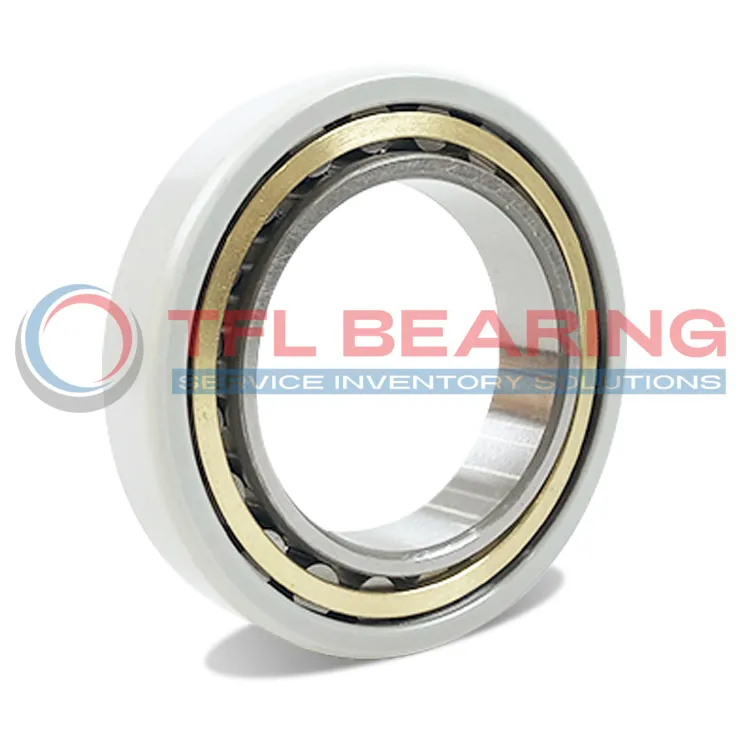

The FAG NU318-E-XL-M1-J20AA-C3 is a current-insulated cylindrical roller bearing with a 90mm bore and 190mm outer diameter, designed for durability. Its outer ring features a ceramic coating to prevent electrical damage, making it ideal for environments with stray currents.
With a dynamic load rating of 370 kN and a static load rating of 350 kN, it handles heavy loads efficiently. The brass cage ensures smooth operation at speeds up to 3650 RPM, even in demanding conditions.
The insulating coating provides a breakdown voltage of up to 1000V and maintains high electrical resistance. This makes it suitable for use in electric motors or generators where electrical insulation is crucial.
Weighing 6.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications requiring both mechanical and electrical performance.
"*" indicates required fields
How Does NU318-E-XL-M1-J20AA-C3 Bearing Resist Electrical Currents?
NU318-E-XL-M1-J20AA-C3 Bearing features a ceramic-coated outer ring, providing effective insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.
Its brass cage ensures smooth operation and reduces friction, even under high dynamic loads of 370 kN.
The C3 radial internal clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a reference speed of 3650r/min, NU318-E-XL-M1-J20AA-C3 Bearing balances speed and durability.
The ceramic coating also resists moisture, maintaining electrical resistance even in damp conditions.
Industrial Uses of NU318-E-XL-M1-J20AA-C3 Bearing
NU318-E-XL-M1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NU318-E-XL-M1-J20AA-C3 Bearing a Preferred Choice?
In wind turbines, NU318-E-XL-M1-J20AA-C3 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. The C3 clearance allows for thermal expansion in demanding environments.
Perfect Fit for Automation: NU318-E-XL-M1-J20AA-C3 Bearing
NU318-E-XL-M1-J20AA-C3 Bearing works well in industrial robots, where precision and reliability are key. Its robust design minimises maintenance needs in continuous operation settings.
Medical vs Industrial: Where NU318-E-XL-M1-J20AA-C3 Bearing Excels
While not typically used in medical devices, NU318-E-XL-M1-J20AA-C3 Bearing shines in factory equipment like conveyor systems. The ceramic coating adds durability in dusty or humid conditions.
Key Fields for NU318-E-XL-M1-J20AA-C3 Bearing
NU318-E-XL-M1-J20AA-C3 Bearing is ideal for railway applications, where electrical insulation prevents damage from track currents. The high dynamic load rating ensures long service life under constant vibration.
