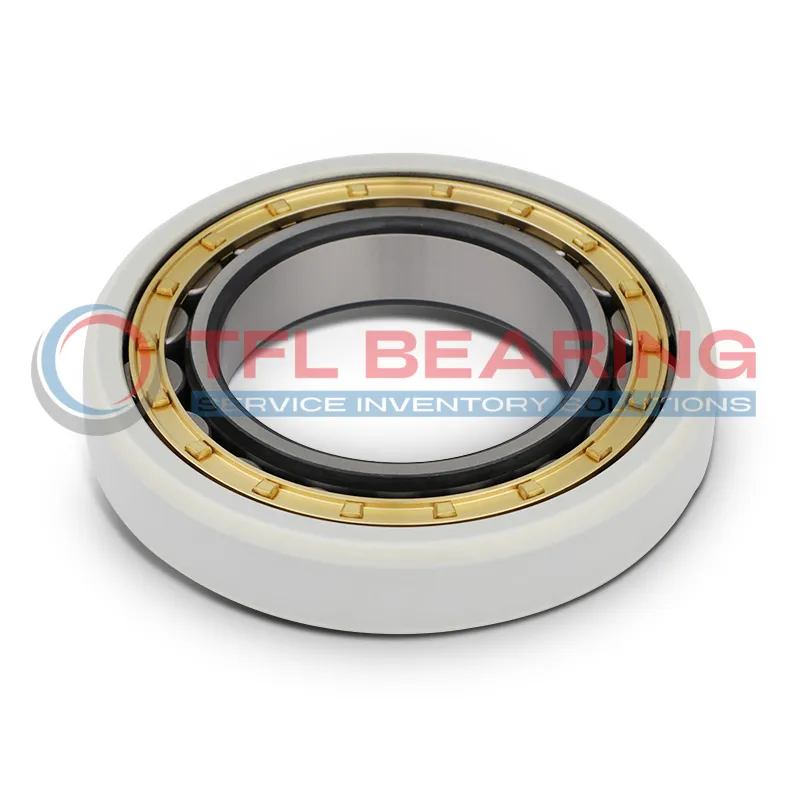

The FAG NU2322-E-XL-MPAX-H67C-J20AA-R210-240 is a current-insulated cylindrical roller bearing with dimensions of 110mm bore, 240mm outer diameter, and 80mm width. It features a ceramic coating on the outer ring for electrical insulation, preventing current damage.
With a dynamic load rating of 790 kN and static load rating of 870 kN, it handles heavy radial loads smoothly. The brass cage ensures durability, and it operates efficiently at speeds up to 2200 rpm.
The insulating coating provides a breakdown voltage of up to 1000V, making it ideal for electric motors or generators. Its normal radial clearance ensures reliable performance in various conditions.
Weighing 18.3 kg, this bearing is robust yet suitable for industrial applications where electrical insulation is crucial. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
How Does NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing Resist Electrical Currents?
NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.
With a brass cage, NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing ensures smooth operation and durability under heavy loads.
Its basic dynamic load rating of 790 kN allows it to perform reliably in demanding industrial environments.
NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing maintains stable performance even in damp conditions, with an electrical resistance of 10MΩ.
The normal internal play (Cn) ensures consistent operation without excessive friction.
Designed for high-speed applications, NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing has a reference speed of 2200r/min.
Its robust construction and ceramic coating make it a reliable choice for electrically challenging environments.
Industrial Uses of NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing
NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high rotational speeds.
In wind turbine applications, NU2322-E-XL-MPAX-H67C-J210-240 Bearing handles heavy radial loads while maintaining electrical insulation. Its robust design makes it suitable for harsh outdoor conditions.
For industrial gearboxes, NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing provides reliable performance with minimal maintenance. The ceramic coating adds an extra layer of protection against electrical currents.
Where Is NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing Used?
NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing can be found in railway traction motors, where electrical insulation is crucial. Its high dynamic load rating ensures long service life in demanding environments.
The bearing also works well in large pumps and compressors, thanks to its ability to handle both radial and axial loads. The normal internal play allows for thermal expansion during operation.
Built for Heavy-Duty Use: NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing
NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing is ideal for steel mill equipment, where high temperatures and heavy loads are common. The ceramic coating prevents electrical arcing in such critical applications.
Its brass cage design reduces friction, making it a good fit for high-speed machinery. The bearing’s dimensions ensure compatibility with standard industrial setups.
Automotive vs Aerospace: Applications of NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing
In automotive testing equipment, NU2322-E-XL-MPAX-H67C-J20AA-R210-240 Bearing provides precise measurements with electrical insulation. The coating helps avoid interference from stray currents.
For aerospace ground support tools, the bearing’s high static load rating ensures stability. Its resistance to electrical currents makes it safe for sensitive electronic environments.
