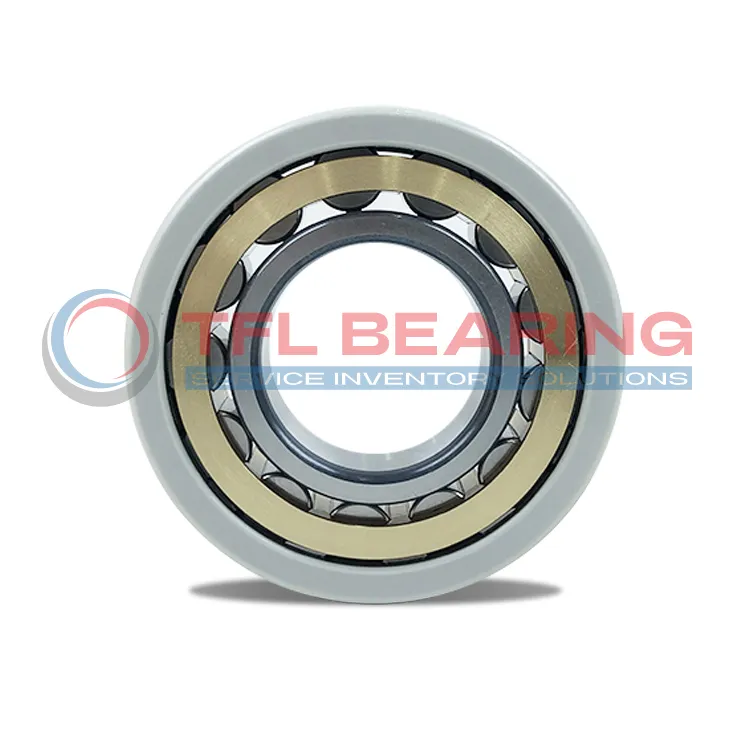

The FAG NU2322-E-MPAX-H67C-J20AA-R210-240 is a current-insulated cylindrical roller bearing with dimensions of 110mm bore, 240mm outer diameter, and 80mm width. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.
This bearing handles dynamic loads up to 790 kN and static loads of 870 kN, with a reference speed of 2200 rpm. The brass cage provides durability and smooth operation under heavy radial loads.
The ceramic coating offers high electrical resistance (50MΩ when dry) and can withstand voltages up to 1000V. Its normal internal clearance (Cn) ensures reliable performance in various operating conditions.
Ideal for electric motors or generators where electrical insulation is needed, this 18.3kg bearing is ROHS and REACH compliant for safe industrial use. The robust design suits demanding applications in power transmission systems.
"*" indicates required fields
How Is NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing Engineered for Reliability?
NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing features an outer ring ceramic coating, providing excellent current insulation.
Its brass cage ensures smooth operation and reduces wear, even under high loads.
With a basic dynamic load rating of 790 kN, NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing handles demanding applications reliably.
The coating offers a breakdown voltage of up to 1000V, making it suitable for electrical environments.
NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing’s normal internal play ensures consistent performance across various conditions.
Its reference speed of 2200r/min balances efficiency and durability.
Industrial Uses of NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing
NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing a Preferred Choice?
With a breakdown voltage of up to 1000V, NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing is ideal for applications in wind turbines and industrial drives. Its ceramic-coated outer ring provides reliable insulation in damp conditions.
Built for Heavy-Duty Use: NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing
NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing handles heavy radial loads in rolling mills and conveyor systems. The normal internal play allows for thermal expansion during continuous operation.
Automotive vs Aerospace: Applications of NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing
In automotive systems, NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing supports alternators and starter motors. For aerospace, its lightweight design and insulation properties make it suitable for auxiliary power units.
Perfect Fit for Automation: NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing
NU2322-E-MPAX-H67C-J20AA-R210-240 Bearing ensures precise motion control in robotic arms and CNC machines. The high dynamic load rating of 790 kN guarantees long service life in demanding environments.
