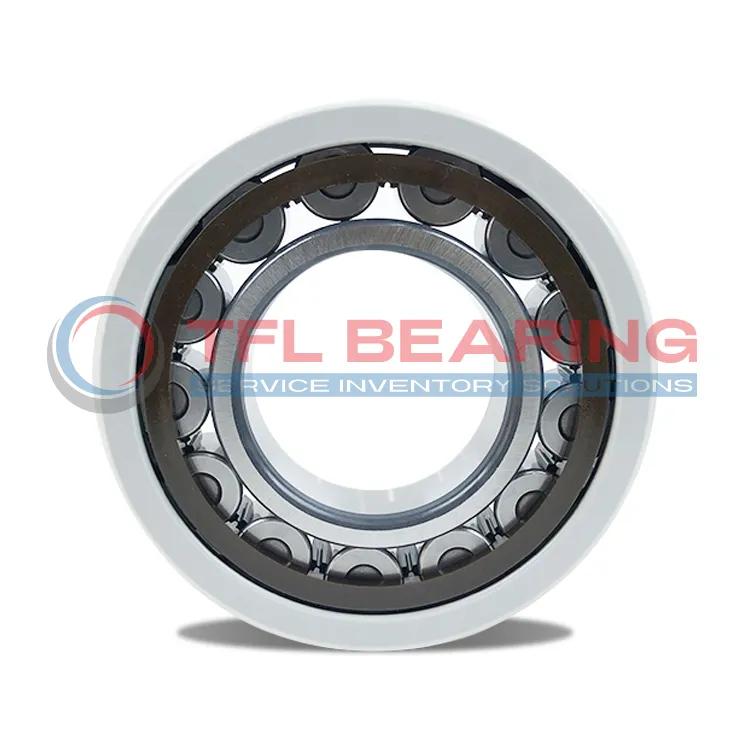

The FAG NU220-E-XL-TVP2-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 100mm bore and 180mm outer diameter, designed for durability. Its outer ring features a ceramic coating, providing electrical insulation up to 1000V.
With a dynamic load rating of 295 kN and a static load rating of 305 kN, it handles heavy radial loads with ease. The plastic cage ensures smooth operation at speeds up to 3450 RPM.
The ceramic coating offers high electrical resistance, making it ideal for applications where electrical currents could cause damage. Its C4 radial clearance allows for thermal expansion in demanding conditions.
Suitable for electric motors or generators, this bearing is compliant with RoHS and REACH standards. Weighing 3.48 kg, it balances strength and practicality for industrial use.
"*" indicates required fields
How Does NU220-E-XL-TVP2-F1-J20AA-C4 Bearing Resist Electrical Current?
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing effective insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, ensuring reliable performance in electrically charged environments.
With a plastic molded cage, it reduces friction and maintains smooth operation under high loads.
Its C4 radial internal clearance allows for thermal expansion, making it suitable for varying operating conditions.
What Makes NU220-E-XL-TVP2-F1-J20AA-C4 Bearing Suitable for High-Speed Applications?
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing is designed for high-speed operations, with a reference speed of 3450r/min.
The ceramic-coated outer ring prevents electrical arcing, ensuring consistent performance in demanding environments.
Its plastic cage minimises wear, while the C4 clearance accommodates thermal expansion.
With a dynamic load rating of 295 kN, it handles heavy loads efficiently.
Engineered for Precision: NU220-E-XL-TVP2-F1-J20AA-C4 Bearing
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing combines a ceramic-coated outer ring with a plastic cage for precise, low-friction operation.
The coating provides electrical insulation, with a resistance of 50MΩ in dry conditions.
Its C4 clearance ensures stability under thermal variations, while the 305 kN static load rating guarantees durability.
This design makes it ideal for applications requiring both electrical insulation and high performance.
Steel vs Ceramic Bearings: Strengths of NU220-E-XL-TVP2-F1-J20AA-C4 Bearing
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing uses a ceramic-coated outer ring for superior electrical insulation compared to standard steel bearings.
The 200 um coating thickness ensures reliable protection against electrical currents up to 1000V.
Its plastic cage reduces friction, while the C4 clearance handles thermal expansion effectively.
With a dynamic load rating of 295 kN, it offers both insulation and robust load-bearing capacity.
Industrial Uses of NU220-E-XL-TVP2-F1-J20AA-C4 Bearing
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The ceramic outer ring coating ensures reliable performance in environments with stray currents.
In wind turbines, NU220-E-XL-TVP2-F1-J20AA-C4 Bearing handles high radial loads while maintaining electrical insulation. Its plastic cage reduces friction, making it suitable for high-speed applications.
For industrial pumps, NU220-E-XL-TVP2-F1-J20AA-C4 Bearing’s C4 clearance accommodates thermal expansion, ensuring stable operation. The robust design also makes it a good fit for heavy machinery.
Where Is NU220-E-XL-TVP2-F1-J20AA-C4 Bearing Used?
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing is ideal for railway traction motors, where electrical insulation is critical. Its high dynamic load rating ensures durability under constant vibration.
In steel mills, NU220-E-XL-TVP2-F1-J20AA-C4 Bearing withstands extreme temperatures and heavy loads. The ceramic coating also resists wear in harsh conditions.
Built for Heavy-Duty Use: NU220-E-XL-TVP2-F1-J20AA-C4 Bearing
NU220-E-XL-TVP2-F1-J20AA-C4 Bearing excels in conveyor systems, thanks to its high load capacity and electrical insulation. The plastic cage further enhances its performance in dusty environments.
For mining equipment, NU220-E-XL-TVP2-F1-J20AA-C4 Bearing’s robust construction ensures long service life. Its C4 clearance allows for thermal expansion in high-heat applications.
Automotive vs Aerospace: Applications of NU220-E-XL-TVP2-F1-J20AA-C4 Bearing
In automotive alternators, NU220-E-XL-TVP2-F1-J20AA-C4 Bearing provides reliable electrical insulation and high-speed performance. Its compact design fits well in tight spaces.
For aerospace actuators, NU220-E-XL-TVP2-F1-J20AA-C4 Bearing’s lightweight and durability are key advantages. The ceramic coating also prevents electrical damage in sensitive systems.
