The FAG NU218-E-TVP2-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with dimensions of 90mm bore, 160mm outer diameter, and 30mm width. Its outer ring features a ceramic coating for electrical insulation, preventing current damage.
This bearing handles dynamic loads up to 215kN and static loads of 217kN, with a reference speed of 3900r/min. The plastic cage ensures smooth operation while reducing weight to just 2.36kg.
The special J20AA coating provides insulation up to 1000V, with high resistance even in damp conditions (10MΩ). Its C4 radial clearance allows for thermal expansion in demanding environments.
Ideal for electric motors or generators where stray currents are a concern, this ROHS-compliant bearing offers reliable protection against electrical erosion.
"*" indicates required fields
How Is NU218-E-TVP2-F1-J20AA-C4 Bearing Engineered for Reliability?
NU218-E-TVP2-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
Its breakdown voltage of ≤1000V ensures safe operation in electrically charged environments.
The plastic molded cage reduces friction and noise, enhancing performance.
With a dynamic load rating of 215 kN, it handles heavy loads efficiently.
What Makes NU218-E-TVP2-F1-J20AA-C4 Bearing Suitable for High-Temperature Applications?
NU218-E-TVP2-F1-J20AA-C4 Bearing’s ceramic coating withstands high temperatures, maintaining stability.
Its C4 radial internal clearance allows for thermal expansion during operation.
The bearing’s reference speed of 3900r/min ensures reliable performance under stress.
With a static load rating of 217 kN, it offers durability in demanding conditions.
Engineered for Precision: NU218-E-TVP2-F1-J20AA-C4 Bearing
NU218-E-TVP2-F1-J20AA-C4 Bearing’s plastic cage ensures smooth operation with minimal vibration.
The ceramic-coated outer ring prevents electrical arcing, extending service life.

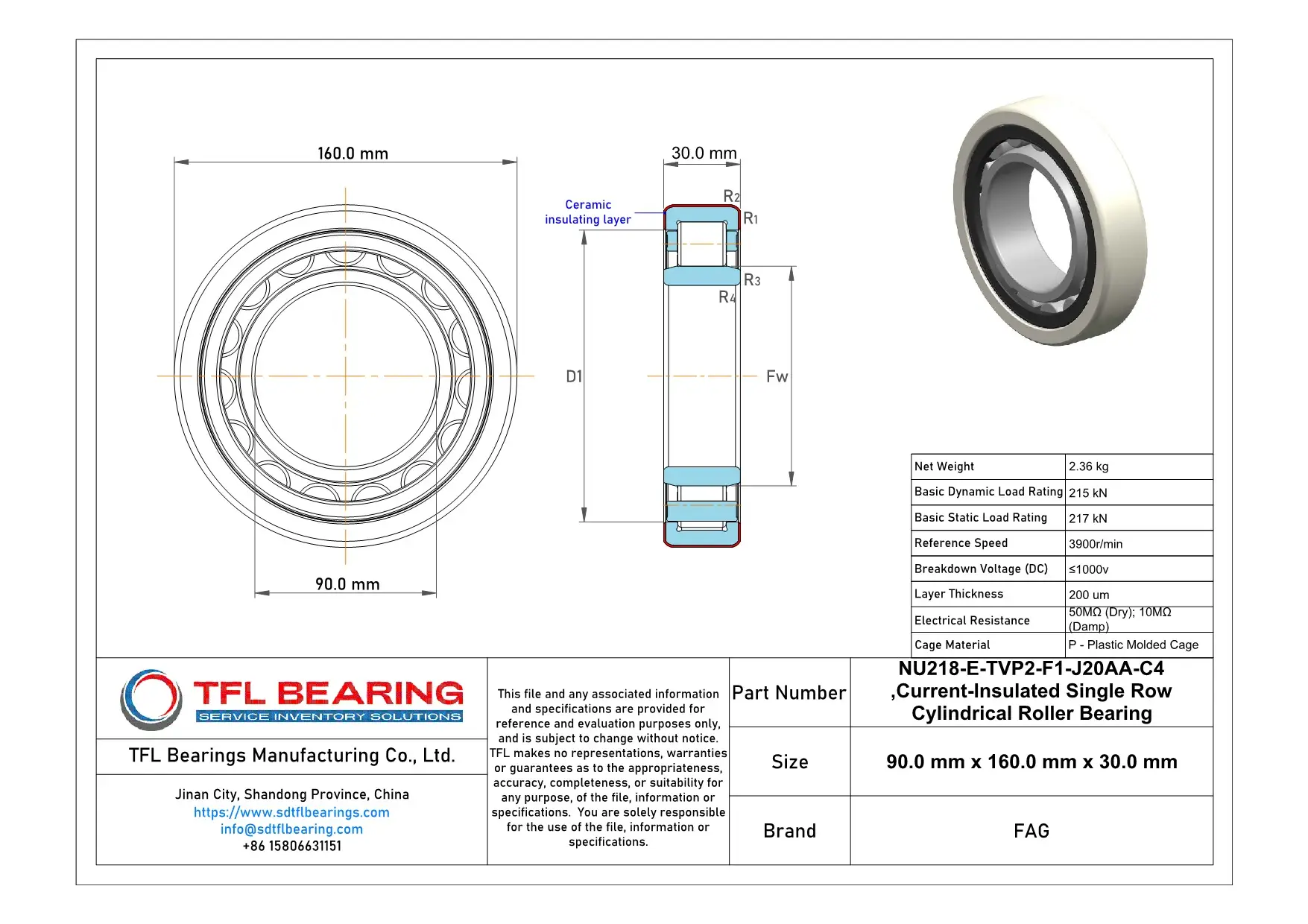

Its dimensions (90.0 mm x 160.0 mm x 30.0 mm) make it suitable for precise applications.
The bearing’s electrical resistance of 50MΩ (dry) ensures reliable insulation.
Steel vs Ceramic Bearings: Strengths of NU218-E-TVP2-F1-J20AA-C4 Bearing
NU218-E-TVP2-F1-J20AA-C4 Bearing combines ceramic coating with steel construction for durability.
The ceramic layer provides insulation, while the steel core handles mechanical stress.
Its 200 um coating thickness ensures long-term protection against electrical damage.
With a net weight of 2.36 kg, it balances strength and practicality.
Industrial Uses of NU218-E-TVP2-F1-J20AA-C4 Bearing
NU218-E-TVP2-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The ceramic outer ring coating ensures reliable performance in environments with stray currents.
What Makes NU218-E-TVP2-F1-J20AA-C4 Bearing a Preferred Choice?
With a plastic molded cage, NU218-E-TVP2-F1-J20AA-C4 Bearing reduces friction and noise, making it ideal for high-speed applications. Its C4 radial clearance allows for thermal expansion in demanding industrial settings.
Perfect Fit for Automation: NU218-E-TVP2-F1-J20AA-C4 Bearing
NU218-E-TVP2-F1-J20AA-C4 Bearing excels in automated machinery, where its high dynamic load rating ensures long service life. The breakdown voltage of up to 1000V makes it suitable for electrically sensitive equipment.
Medical vs Industrial: Where NU218-E-TVP2-F1-J20AA-C4 Bearing Excels
NU218-E-TVP2-F1-J20AA-C4 Bearing is versatile enough for both medical imaging devices and heavy industrial machinery. Its damp electrical resistance of 10MΩ ensures stability in humid conditions.
