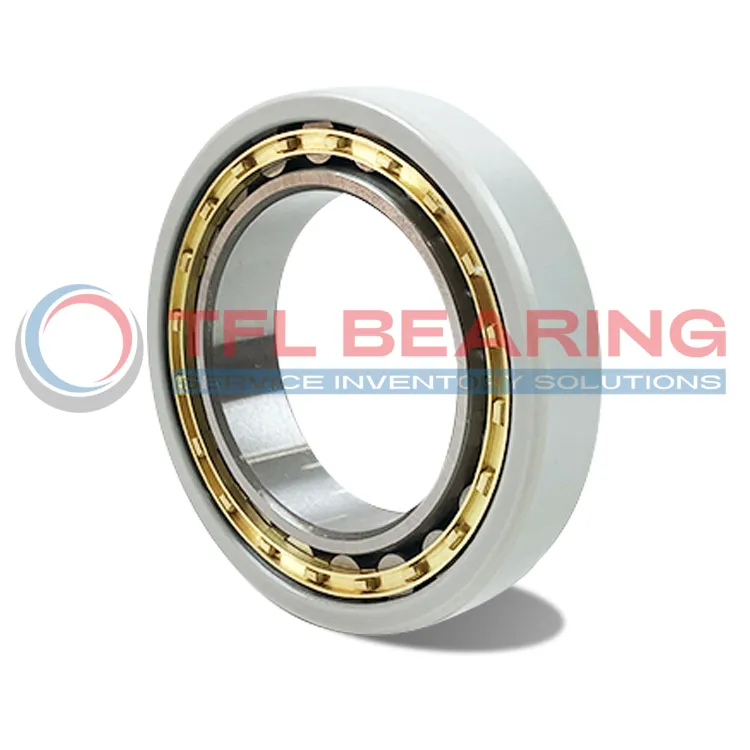

The FAG NU217-E-XL-M1-J20AA is a current-insulated cylindrical roller bearing with dimensions of 85mm bore, 150mm outer diameter, and 28mm width. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.
With a dynamic load rating of 194kN, it handles heavy radial loads smoothly, even at speeds up to 4000 RPM. The brass cage ensures durability and stable operation under demanding conditions.
The insulating coating provides reliable protection with a breakdown voltage of up to 1000V, making it ideal for electric motors or generators. It maintains performance in damp conditions with an electrical resistance of 10MΩ.
Weighing 2.12kg, this bearing is ROHS and REACH compliant, suitable for industrial applications where electrical insulation is crucial. Its normal radial clearance (Cn) allows for easy installation in various setups.
"*" indicates required fields
How Does NU217-E-XL-M1-J20AA Bearing Resist Wear?
NU217-E-XL-M1-J20AA Bearing features a brass cage that ensures smooth operation and reduces wear.
Its ceramic-coated outer ring provides excellent insulation, preventing electrical damage.
With a basic dynamic load rating of 194 kN, it handles heavy loads efficiently.
The bearing’s design also allows for a reference speed of 4000r/min, balancing performance and durability.
Industrial Uses of NU217-E-XL-M1-J20AA Bearing
NU217-E-XL-M1-J20AA Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NU217-E-XL-M1-J20AA Bearing a Preferred Choice?
In wind turbines, NU217-E-XL-M1-J20AA Bearing handles heavy radial loads while its ceramic coating protects against stray currents. Its durable design makes it suitable for long-term use in harsh environments.
Optimized for Performance: NU217-E-XL-M1-J20AA Bearing
For railway applications, NU217-E-XL-M1-J20AA Bearing offers reliable performance in traction motors. The normal internal play ensures consistent operation across varying temperatures.
Automotive vs Industrial: Applications of NU217-E-XL-M1-J20AA Bearing
NU217-E-XL-M1-J20AA Bearing works well in hybrid vehicle drivetrains, where insulation is crucial. In industrial pumps, its high dynamic load rating ensures efficiency under continuous use.
Where Is NU217-E-XL-M1-J20AA Bearing Used?
NU217-E-XL-M1-J20AA Bearing is ideal for conveyor systems in mining, thanks to its robust construction. The ceramic outer ring coating adds an extra layer of protection against electrical damage.
