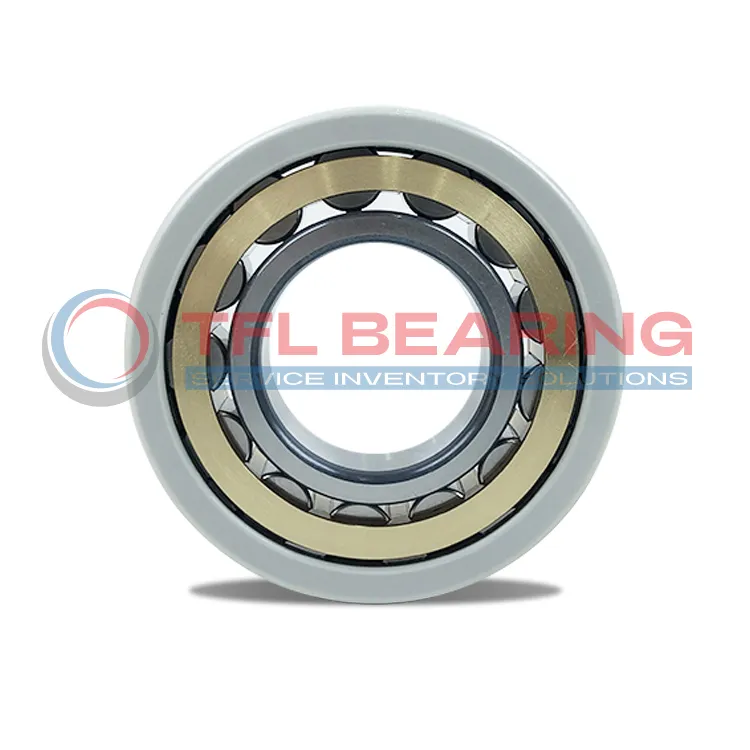

The FAG NU213-E-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 65mm bore and 120mm outer diameter, designed for electrical insulation. Its outer ring features a ceramic coating, providing protection against electrical currents.
With a dynamic load rating of 128 kN and a static load rating of 120 kN, it handles heavy loads efficiently. The brass cage ensures smooth operation at speeds up to 4900 RPM.
The ceramic coating offers a breakdown voltage of up to 1000V and maintains high electrical resistance, even in damp conditions. This makes it ideal for electric motors or generators where current insulation is crucial.
Weighing 1.17kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it’s both durable and safe for various environments.
"*" indicates required fields
How Is NU213-E-M1-F1-J20AA-C4 Bearing Engineered for Reliability?
NU213-E-M1-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrical applications.
The brass cage ensures smooth operation and maintains proper roller alignment under heavy loads.
With a basic dynamic load rating of 128 kN, it handles demanding conditions with ease.
NU213-E-M1-F1-J20AA-C4 Bearing operates efficiently at speeds up to 4900r/min, balancing performance and durability.
Its C4 radial internal clearance allows for thermal expansion in high-temperature environments.
The coating offers high electrical resistance, with 50MΩ when dry and 10MΩ in damp conditions.
This makes NU213-E-M1-F1-J20AA-C4 Bearing suitable for various industrial applications.
Industrial Uses of NU213-E-M1-F1-J20AA-C4 Bearing
NU213-E-M1-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.
Where Is NU213-E-M1-F1-J20AA-C4 Bearing Used?
In wind turbines, NU213-E-M1-F1-J20AA-C4 Bearing handles radial loads while its ceramic coating protects against stray currents. This makes it ideal for renewable energy applications.
Built for Heavy-Duty Use: NU213-E-M1-F1-J20AA-C4 Bearing
NU213-E-M1-F1-J20AA-C4 Bearing excels in industrial gearboxes, where its C4 clearance accommodates thermal expansion. The high dynamic load rating ensures long service life.
Automotive vs Aerospace: Applications of NU213-E-M1-F1-J20AA-C4 Bearing
In automotive alternators, NU213-E-M1-F1-J20AA-C4 Bearing prevents electrical damage from voltage spikes. For aerospace, its lightweight design suits auxiliary power units.
Perfect Fit for Automation: NU213-E-M1-F1-J20AA-C4 Bearing
NU213-E-M1-F1-J20AA-C4 Bearing works well in robotic arms, where electrical insulation is crucial. The 120 kN static load rating handles intermittent heavy loads effortlessly.
