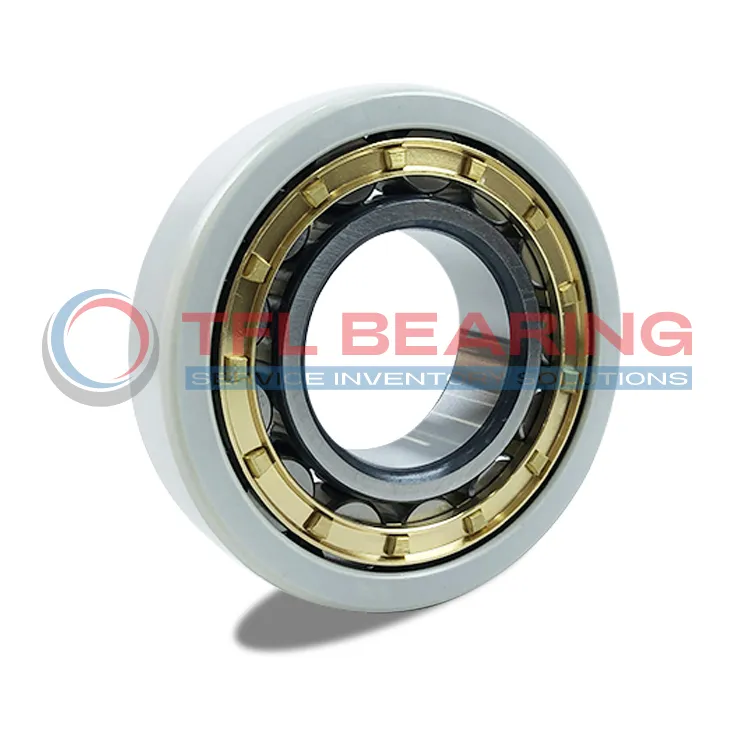

The FAG NU1036-XL-M1-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 180mm bore, 280mm outer diameter, and 46mm width. Its outer ring features a ceramic coating for electrical insulation, preventing current damage in applications like electric motors.
With a dynamic load rating of 425kN and static load rating of 520kN, it handles heavy radial loads efficiently. The brass cage ensures smooth operation at speeds up to 2550r/min, even in demanding conditions.
The J20AA coating provides reliable insulation with a breakdown voltage up to 1000V, suitable for damp environments (10MΩ resistance). Its C3 radial clearance accommodates thermal expansion in industrial machinery.
Weighing 10.7kg, this robust bearing is ROHS and REACH compliant. Ideal for wind turbines or generators where electrical insulation and high load capacity are needed.
"*" indicates required fields
How Does NU1036-XL-M1-J20AA-C3 Bearing Resist Electrical Current?
NU1036-XL-M1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.
With a brass cage, NU1036-XL-M1-J20AA-C3 Bearing ensures smooth operation and durability under high loads.
Its C3 radial internal clearance allows for thermal expansion, maintaining performance in varying conditions.
NU1036-XL-M1-J20AA-C3 Bearing’s dynamic load rating of 425 kN ensures reliability in demanding industrial environments.
The ceramic coating also resists moisture, maintaining electrical resistance even in damp conditions.
Industrial Uses of NU1036-XL-M1-J20AA-C3 Bearing
NU1036-XL-M1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical damage. The brass cage ensures smooth operation even under high rotational speeds.
Where Is NU1036-XL-M1-J20AA-C3 Bearing Used?
In wind turbines, NU1036-XL-M1-J20AA-C3 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. Its C3 clearance allows for thermal expansion in demanding environments.
Built for Heavy-Duty Use: NU1036-XL-M1-J20AA-C3 Bearing
NU1036-XL-M1-J20AA-C3 Bearing excels in industrial gearboxes, offering reliable performance under constant vibration. The 425 kN dynamic load rating makes it suitable for long-term use in harsh conditions.
Automotive vs Aerospace: Applications of NU1036-XL-M1-J20AA-C3 Bearing
In automotive applications, NU1036-XL-M1-J20AA-C3 Bearing supports drivetrain components, while in aerospace, its insulation properties safeguard sensitive avionics. The 10.7 kg weight balances strength and practicality.
Perfect Fit for Automation: NU1036-XL-M1-J20AA-C3 Bearing
NU1036-XL-M1-J20AA-C3 Bearing is ideal for robotic arms in automated production lines, where precision and electrical insulation are key. Its 2550r/min reference speed ensures efficient high-speed operation.
