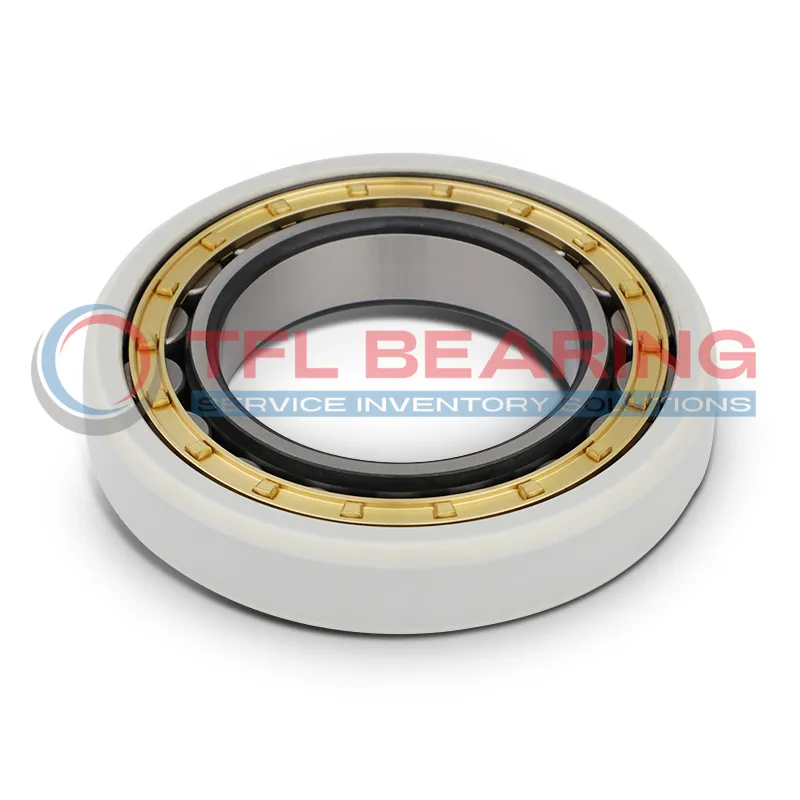

The FAG NU1034-XL-M1-J20AA is a current-insulated cylindrical roller bearing with dimensions of 170mm x 260mm x 42mm, featuring a ceramic-coated outer ring. It handles dynamic loads up to 350 kN and static loads up to 435 kN, with a reference speed of 2750 RPM.
Its brass cage ensures durability, while the ceramic coating provides insulation against electrical currents up to 1000V. The bearing operates efficiently in both dry and damp conditions, with electrical resistance of 50MΩ and 10MΩ respectively.
Designed for applications where electrical insulation is crucial, it’s ideal for use in motors or generators. Compliant with RoHS and REACH standards, this bearing combines reliability with safety.
Weighing 8.16kg, it’s robust yet manageable for industrial settings. The normal radial internal clearance (Cn) ensures smooth operation under typical loads.
"*" indicates required fields
How Does NU1034-XL-M1-J20AA Bearing Resist Electrical Currents?
NU1034-XL-M1-J20AA Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
This design prevents damage from stray currents, ensuring reliable operation in electrically charged environments.
The brass cage maintains proper roller alignment, enhancing durability and reducing friction.
With a breakdown voltage of up to 1000V, it offers robust protection in demanding applications.
NU1034-XL-M1-J20AA Bearing’s dynamic load rating of 350 kN ensures strong performance under heavy loads.
Its reference speed of 2750r/min balances efficiency and longevity.
The coating provides high electrical resistance, even in damp conditions, with values up to 50MΩ when dry.
This makes NU1034-XL-M1-J20AA Bearing suitable for a wide range of industrial uses.
The normal internal play (Cn) ensures smooth operation, reducing wear over time.
Its compact design, with dimensions of 170.0 mm x 260.0 mm x 42.0 mm, fits seamlessly into various machinery setups.
Industrial Uses of NU1034-XL-M1-J20AA Bearing
NU1034-XL-M1-J20AA Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical arcing. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
In wind turbine applications, NU1034-XL-M1-J20AA Bearing handles heavy radial loads while maintaining electrical insulation. Its brass cage provides added durability in fluctuating weather conditions.
For railway traction systems, NU1034-XL-M1-J20AA Bearing offers stable operation under constant vibration and electrical currents. The normal internal play allows for smooth rotation even during rapid speed changes.
What Makes NU1034-XL-M1-J20AA Bearing a Preferred Choice?
NU1034-XL-M1-J20AA Bearing is ideal for industrial pumps, where its insulation prevents damage from stray currents. The high dynamic load rating ensures long service life in demanding conditions.
In steel production machinery, NU1034-XL-M1-J20AA Bearing withstands both heavy loads and electrical interference. The 200 um coating thickness provides consistent insulation throughout its operation.
For mining equipment, NU1034-XL-M1-J20AA Bearing’s robust design handles harsh environments with dust and moisture. The breakdown voltage of ≤1000v makes it suitable for various power transmission systems.
Built for Heavy-Duty Use: NU1034-XL-M1-J20AA Bearing
NU1034-XL-M1-J20AA Bearing performs well in paper mill machinery, where electrical insulation and load capacity are equally important. Its 42mm width provides stability in high-speed operations.
In marine applications, NU1034-XL-M1-J20AA Bearing resists corrosion while maintaining electrical isolation. The 260mm outer diameter offers ample surface area for heat dissipation.
For food processing equipment, NU1034-XL-M1-J20AA Bearing’s brass cage meets hygiene standards while preventing electrical damage. The 170mm bore diameter accommodates various shaft sizes in production lines.
