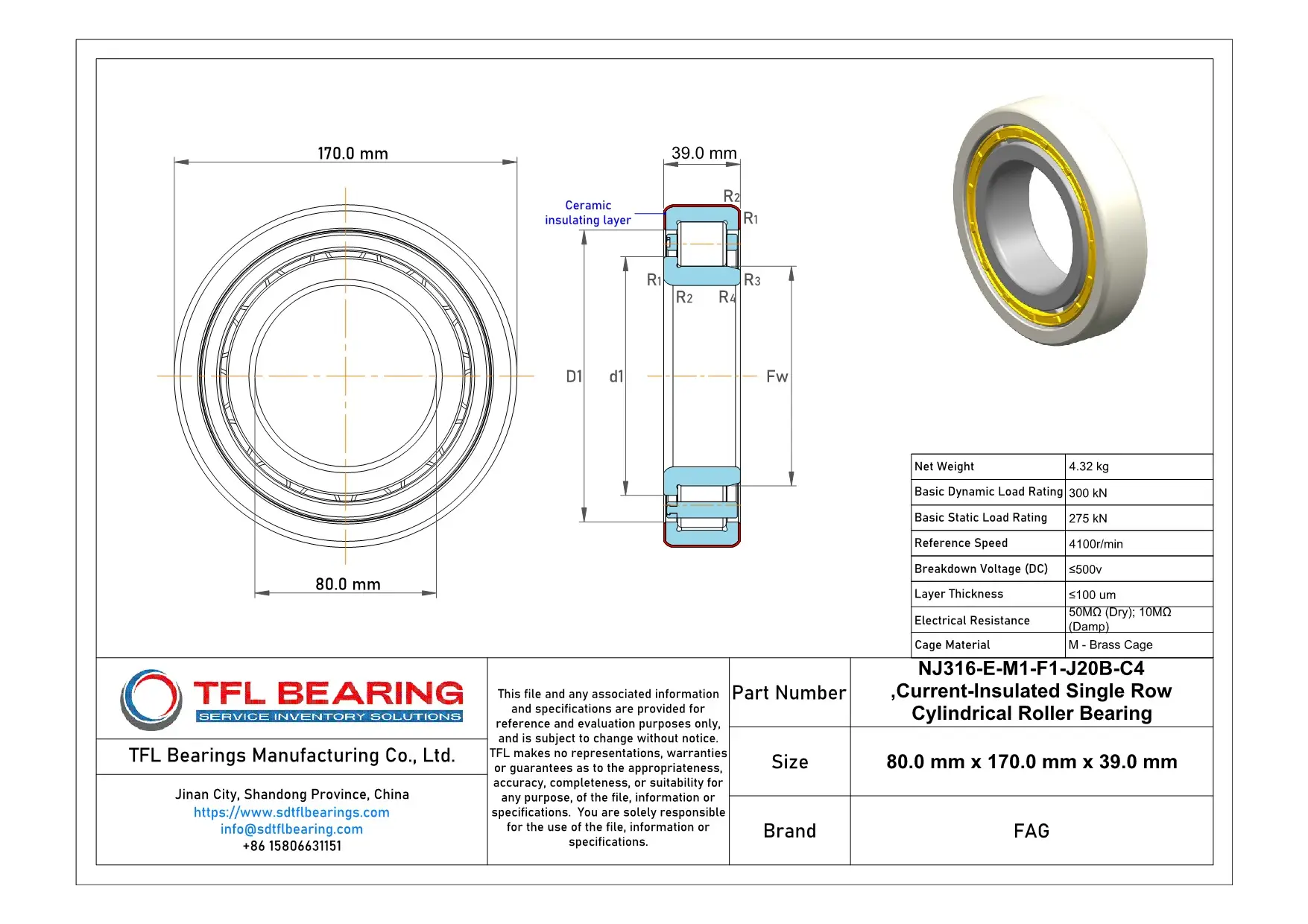

The NJ316-E-M1-F1-J20B-C4 is a current-insulated cylindrical roller bearing with an 80mm bore and 170mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, offering insulation up to 500V DC.
This bearing handles dynamic loads up to 300 kN and static loads up to 275 kN, with a reference speed of 4100 RPM. The brass cage ensures durability and smooth operation under high stress.
The C4 radial clearance allows for thermal expansion, making it suitable for variable temperatures. It’s ideal for electric motors or generators where electrical currents could cause damage.
Weighing 4.32kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications.
"*" indicates required fields
How Does NJ316-E-M1-F1-J20B-C4 Bearing Resist Electrical Currents?
NJ316-E-M1-F1-J20B-C4 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating ensures a breakdown voltage of up to 500V, making it suitable for applications with electrical interference.
With a brass cage, NJ316-E-M1-F1-J20B-C4 Bearing maintains stability and reduces friction during operation.
Its C4 radial internal clearance allows for thermal expansion, ensuring reliable performance under varying conditions.
NJ316-E-M1-F1-J20B-C4 Bearing’s dynamic load rating of 300 kN ensures durability in demanding environments.
The bearing also complies with ROHS and REACH standards, meeting environmental and safety requirements.
Industrial Uses of NJ316-E-M1-F1-J20B-C4 Bearing
NJ316-E-M1-F1-J20B-C4 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NJ316-E-M1-F1-J20B-C4 Bearing a Preferred Choice?
In wind turbines, NJ316-E-M1-F1-J20B-C4 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. The C4 clearance allows for thermal expansion in demanding environments.
Built for Heavy-Duty Use: NJ316-E-M1-F1-J20B-C4 Bearing
For industrial gearboxes, NJ316-E-M1-F1-J20B-C4 Bearing offers reliable performance with its high dynamic load rating. The brass cage reduces friction, extending service life in continuous operation.
Automotive vs Aerospace: Applications of NJ316-E-M1-F1-J20B-C4 Bearing
In hybrid vehicle drivetrains, NJ316-E-M1-F1-J20B-C4 Bearing manages electrical isolation needs effectively. For aircraft auxiliary systems, its lightweight design and insulation properties prove equally valuable.
Perfect Fit for Automation: NJ316-E-M1-F1-J20B-C4 Bearing
NJ316-E-M1-F1-J20B-C4 Bearing works well in robotic joints where electrical insulation prevents signal interference. The 39mm width provides stability without adding excessive bulk to compact designs.
