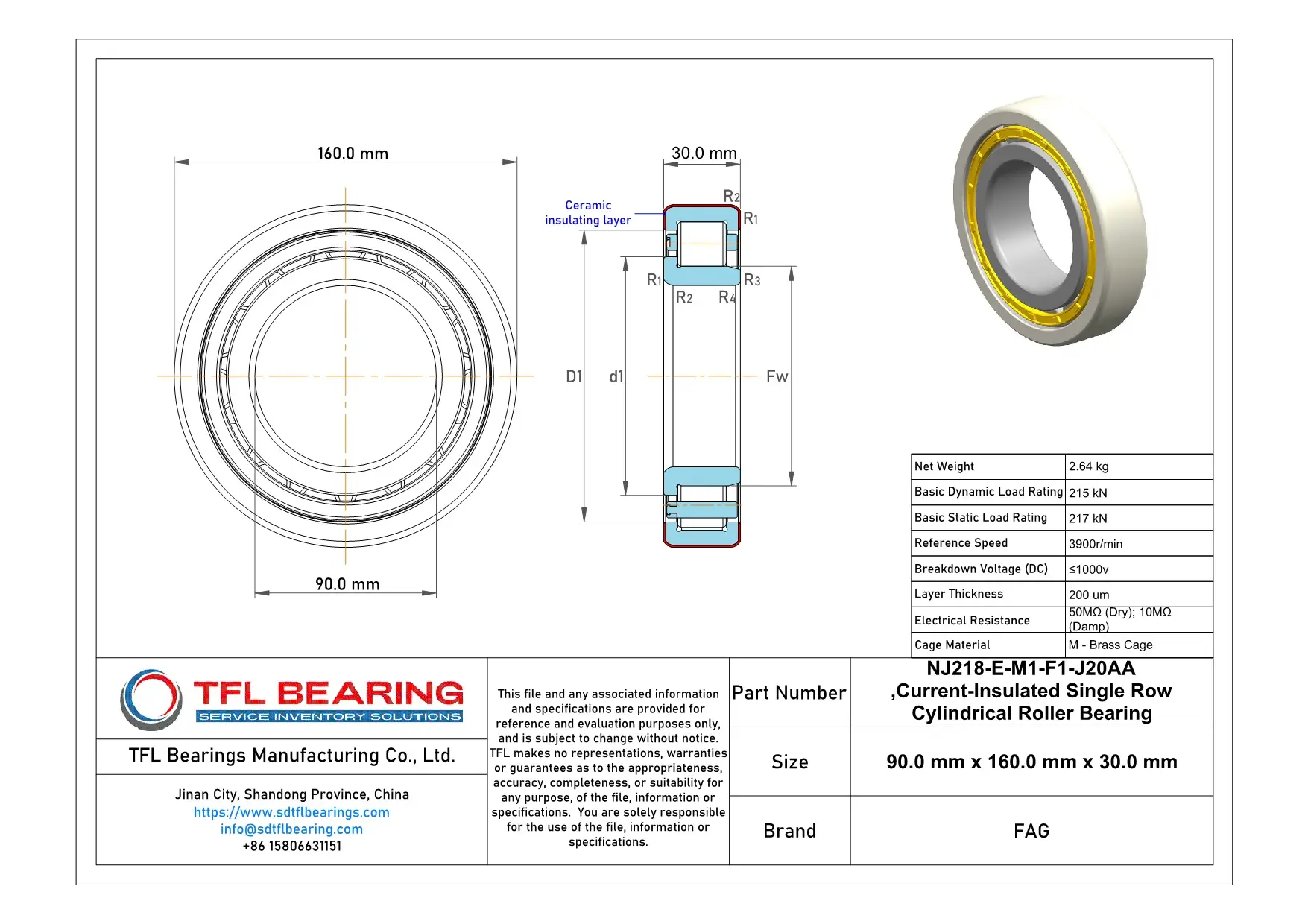

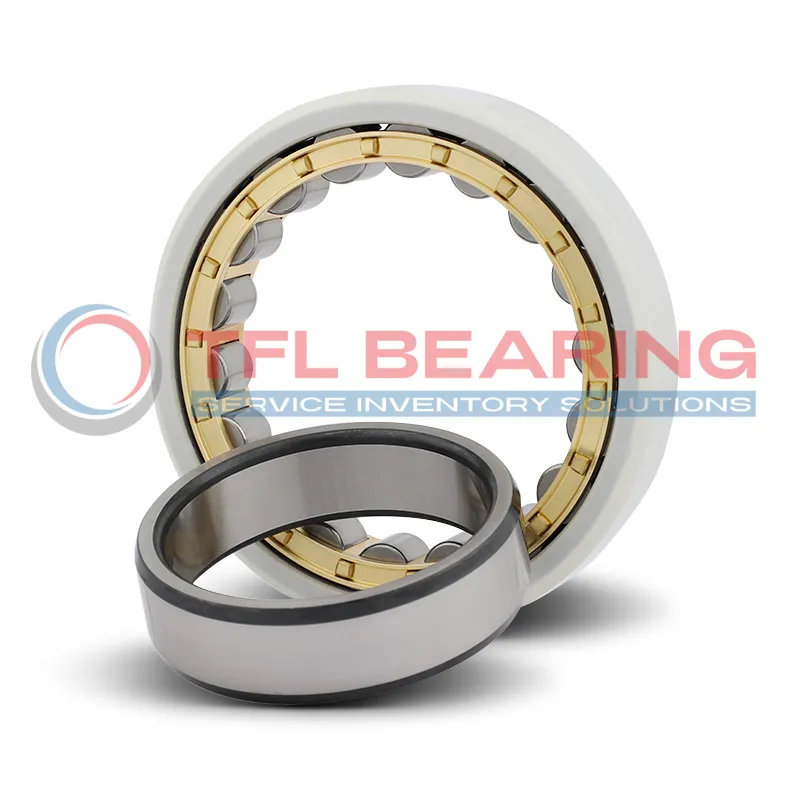

The FAG NJ218-E-M1-F1-J20AA is a current-insulated cylindrical roller bearing with a 90mm bore and 160mm outer diameter, designed to handle moderate to heavy loads. Its outer ring features a ceramic coating, providing electrical insulation up to 1000V.
With a dynamic load rating of 215 kN and a static load rating of 217 kN, it offers reliable performance in demanding conditions. The brass cage ensures smooth operation at speeds up to 3900 rpm.
The ceramic coating prevents electrical arcing, making it ideal for use in electric motors or generators. Its compact 30mm width and 2.64kg weight make it easy to integrate into various setups.
Compliant with RoHS and REACH standards, this bearing is a durable choice for industrial applications where electrical insulation is required.
"*" indicates required fields
How Is NJ218-E-M1-F1-J20AA Bearing Engineered for Reliability?
NJ218-E-M1-F1-J20AA Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrical applications.
The brass cage ensures smooth operation and maintains proper roller alignment.
With a basic dynamic load rating of 215 kN, it handles heavy radial loads efficiently.
NJ218-E-M1-F1-J20AA Bearing operates at reference speeds up to 3900r/min, balancing performance and durability.
Its breakdown voltage of ≤1000V makes it suitable for various industrial environments.
The normal internal play (Cn) allows for reliable performance under different operating conditions.
This bearing is ROHS and REACH compliant, meeting strict environmental standards.
Industrial Uses of NJ218-E-M1-F1-J20AA Bearing
NJ218-E-M1-F1-J20AA Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.
What Makes NJ218-E-M1-F1-J20AA Bearing a Preferred Choice?
This bearing is ideal for wind turbines and industrial drives, thanks to its ceramic-coated outer ring that resists electrical damage. Its normal radial clearance provides reliable performance in varying load conditions.
Built for Heavy-Duty Use: NJ218-E-M1-F1-J20AA Bearing
In conveyor systems and heavy machinery, NJ218-E-M1-F1-J20AA Bearing handles high dynamic loads with ease. The 215 kN dynamic load rating makes it suitable for demanding applications.
Automotive vs Aerospace: Applications of NJ218-E-M1-F1-J20AA Bearing
While often found in automotive alternators, NJ218-E-M1-F1-J20AA Bearing also suits aerospace equipment due to its insulating properties. The 3900r/min reference speed ensures efficiency in both fields.
Perfect Fit for Automation: NJ218-E-M1-F1-J20AA Bearing
Robotic arms and CNC machines benefit from NJ218-E-M1-F1-J20AA Bearing’s precise cylindrical roller design. Its 30mm width provides stability in compact spaces.
