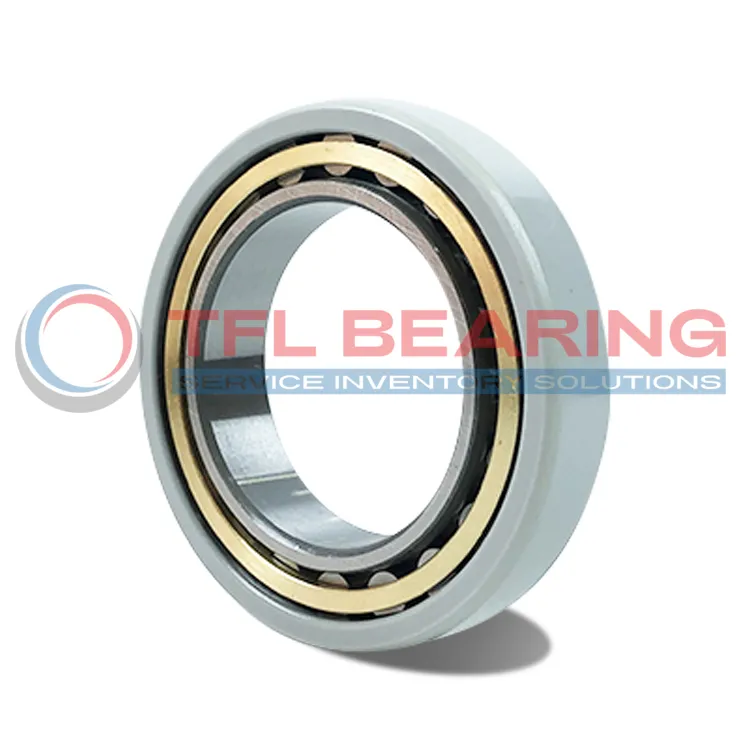

The FAG N214-E-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 70mm bore and 125mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 1000V DC.
This bearing handles dynamic loads up to 140 kN and spins smoothly at speeds up to 7800 RPM. The brass cage ensures durability and stable performance under heavy loads.
The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. It’s also compliant with RoHS and REACH standards.
Ideal for electric motors or generators where electrical currents could cause damage, this bearing offers reliable protection and long service life. Weighing 1.33kg, it’s robust yet manageable for its size.
"*" indicates required fields
Why Choose N214-E-M1-F1-J20AA-C4 Bearing for Precision Tasks?
N214-E-M1-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
Its breakdown voltage of ≤1000V makes it ideal for applications where electrical currents are a concern.
The brass cage ensures smooth operation and reduces friction, enhancing the bearing’s durability.
With a basic dynamic load rating of 140 kN, it handles heavy loads efficiently.
N214-E-M1-F1-J20AA-C4 Bearing operates at high speeds, up to 7,800 rpm, without compromising performance.
Its C4 radial internal clearance allows for thermal expansion in demanding conditions.
The ceramic coating offers high electrical resistance, even in damp environments.
This makes N214-E-M1-F1-J20AA-C4 Bearing a reliable choice for industrial applications.
Industrial Uses of N214-E-M1-F1-J20AA-C4 Bearing
N214-E-M1-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical damage. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
In wind turbine applications, N214-E-M1-F1-J20AA-C4 Bearing handles heavy radial loads while maintaining electrical insulation. Its brass cage provides durability in fluctuating weather conditions.
For industrial pumps, N214-E-M1-F1-J20AA-C4 Bearing’s C4 clearance accommodates thermal expansion during continuous operation. The high dynamic load rating makes it suitable for demanding hydraulic systems.
Where Is N214-E-M1-F1-J20AA-C4 Bearing Used?
N214-E-M1-F1-J20AA-C4 Bearing is ideal for railway traction motors, where electrical insulation is critical for safety. Its robust design withstands vibrations and shocks common in rail transport.
In CNC machinery, N214-E-M1-F1-J20AA-C4 Bearing ensures precise rotation without electrical interference. The ceramic coating also reduces wear from frequent starts and stops.
Built for Heavy-Duty Use: N214-E-M1-F1-J20AA-C4 Bearing
N214-E-M1-F1-J20AA-C4 Bearing excels in steel mill equipment, where high temperatures and heavy loads are common. The brass cage maintains stability even under extreme stress.
For mining machinery, N214-E-M1-F1-J20AA-C4 Bearing’s insulation prevents damage from stray currents. Its wide temperature range suits both underground and surface operations.
Automotive vs Aerospace: Applications of N214-E-M1-F1-J20AA-C4 Bearing
In electric vehicles, N214-E-M1-F1-J20AA-C4 Bearing supports drivetrain components while preventing electrical arcing. The C4 clearance helps manage thermal expansion during rapid charging cycles.
For aircraft auxiliary systems, N214-E-M1-F1-J20AA-C4 Bearing’s lightweight design and insulation are crucial. It meets stringent safety standards for aviation electrical systems.
