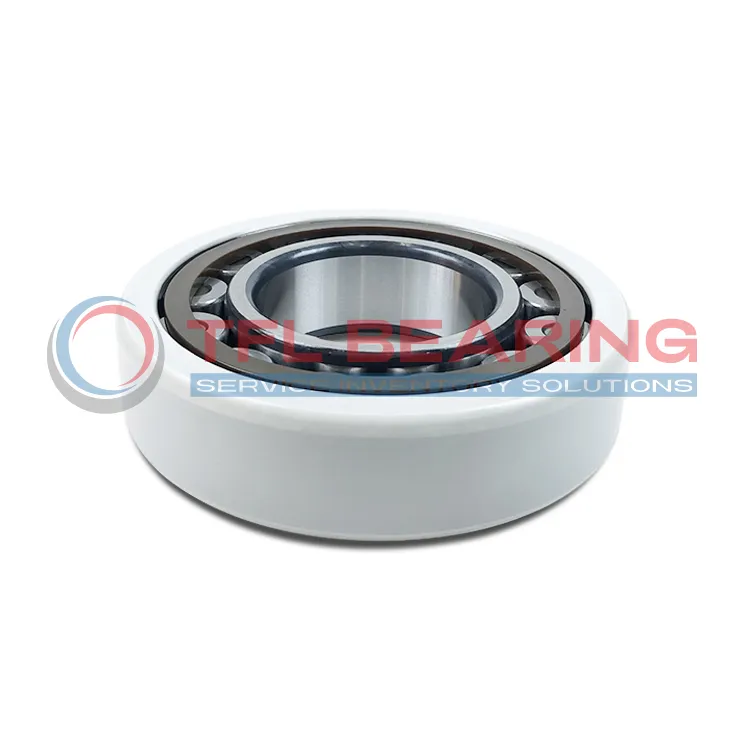

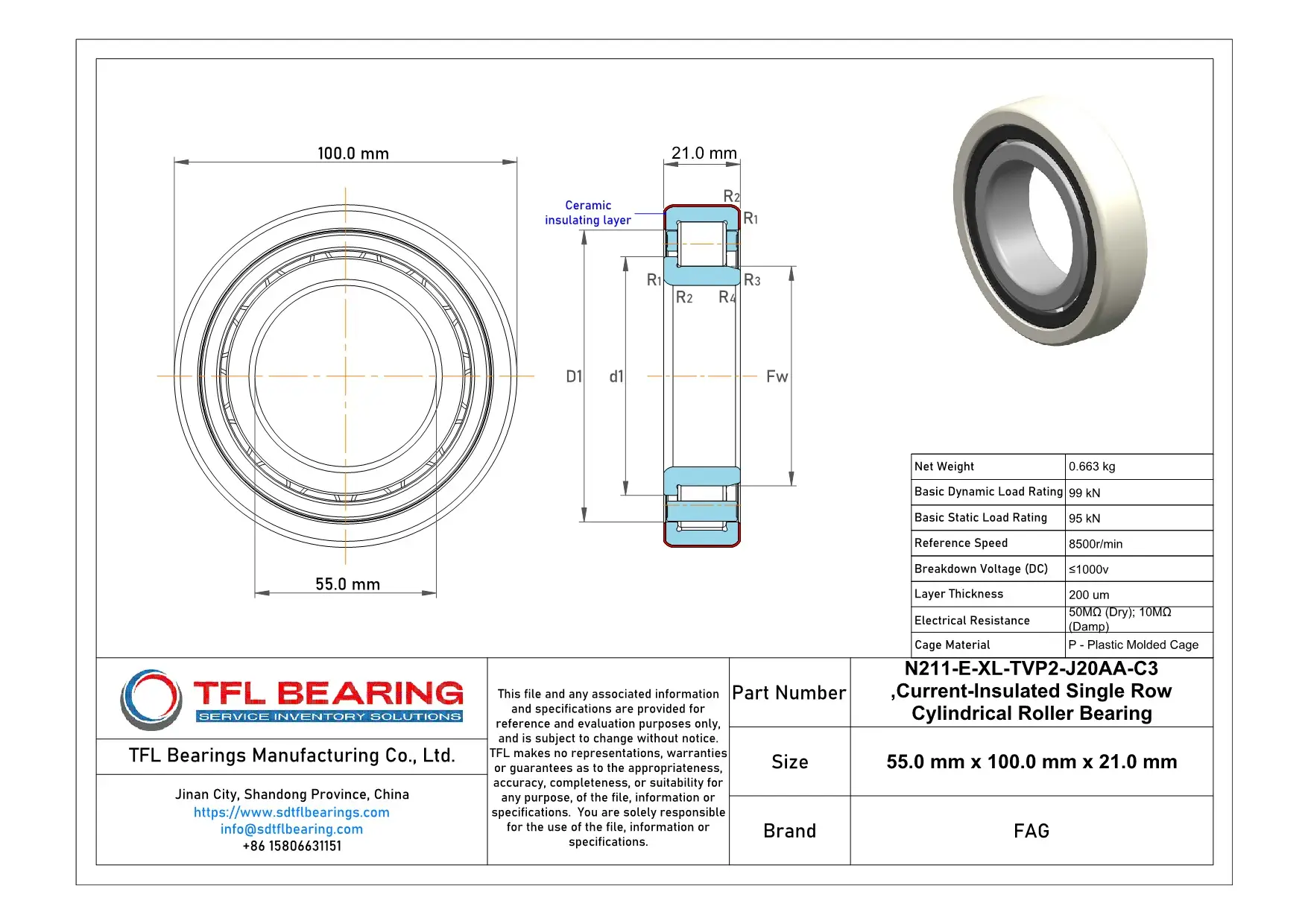

The FAG N211-E-XL-TVP2-J20AA-C3 is a current-insulated cylindrical roller bearing with dimensions of 55mm bore, 100mm outer diameter, and 21mm width. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.
With a dynamic load rating of 99kN and static load of 95kN, it handles heavy radial loads while spinning smoothly up to 8500 RPM. The plastic cage reduces friction and wear, ensuring quiet operation.
The ceramic coating provides high electrical resistance (50MΩ dry) and withstands voltages up to 1000V. Its C3 clearance allows for thermal expansion in demanding conditions.
Ideal for electric motors or generators where electrical currents could damage standard bearings. Compliant with RoHS and REACH standards, it weighs just 0.663kg for easy handling.
"*" indicates required fields
How Is N211-E-XL-TVP2-J20AA-C3 Bearing Engineered for Reliability?
N211-E-XL-TVP2-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent current insulation.
This design prevents electrical damage, ensuring reliable operation in electrically charged environments.
The plastic molded cage maintains proper roller alignment, reducing friction and wear.
With a basic dynamic load rating of 99 kN, it handles heavy loads efficiently.
N211-E-XL-TVP2-J20AA-C3 Bearing operates smoothly at speeds up to 8500r/min.
Its C3 radial internal clearance allows for thermal expansion in high-speed applications.
The ceramic coating offers high electrical resistance, even in damp conditions.
This makes N211-E-XL-TVP2-J20AA-C3 Bearing suitable for demanding industrial environments.
Industrial Uses of N211-E-XL-TVP2-J20AA-C3 Bearing
N211-E-XL-TVP2-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. The ceramic outer ring coating ensures reliable performance in environments with stray currents.
In wind turbine applications, N211-E-XL-TVP2-J20AA-C3 Bearing handles high radial loads while maintaining electrical insulation. Its plastic cage reduces friction, making it suitable for continuous operation.
For industrial pumps, N211-E-XL-TVP2-J20AA-C3 Bearing offers durability and resistance to electrical arcing. The C3 clearance allows for thermal expansion, ensuring stable performance under varying temperatures.
What Makes N211-E-XL-TVP2-J20AA-C3 Bearing a Preferred Choice?
N211-E-XL-TVP2-J20AA-C3 Bearing is ideal for railway traction motors, where electrical insulation is critical. Its high dynamic load rating ensures long service life even under heavy loads.
In CNC machinery, N211-E-XL-TVP2-J20AA-C3 Bearing provides precise rotation and electrical safety. The ceramic coating adds an extra layer of protection against electrical discharge.
Built for Heavy-Duty Use: N211-E-XL-TVP2-J20AA-C3 Bearing
N211-E-XL-TVP2-J20AA-C3 Bearing excels in steel mill equipment, handling both high loads and electrical challenges. The plastic cage material helps reduce wear and noise during operation.
For mining machinery, N211-E-XL-TVP2-J20AA-C3 Bearing’s robust design ensures reliability in harsh conditions. Its insulating properties prevent damage from electrical currents common in industrial settings.
Medical vs Industrial: Where N211-E-XL-TVP2-J20AA-C3 Bearing Excels
N211-E-XL-TVP2-J20AA-C3 Bearing is suited for industrial automation systems, where electrical insulation and precision are key. Its ceramic coating prevents current-related failures in sensitive equipment.
In medical imaging devices, N211-E-XL-TVP2-J20AA-C3 Bearing’s smooth operation and insulation properties ensure accurate performance. The plastic cage material also minimises contamination risks.
