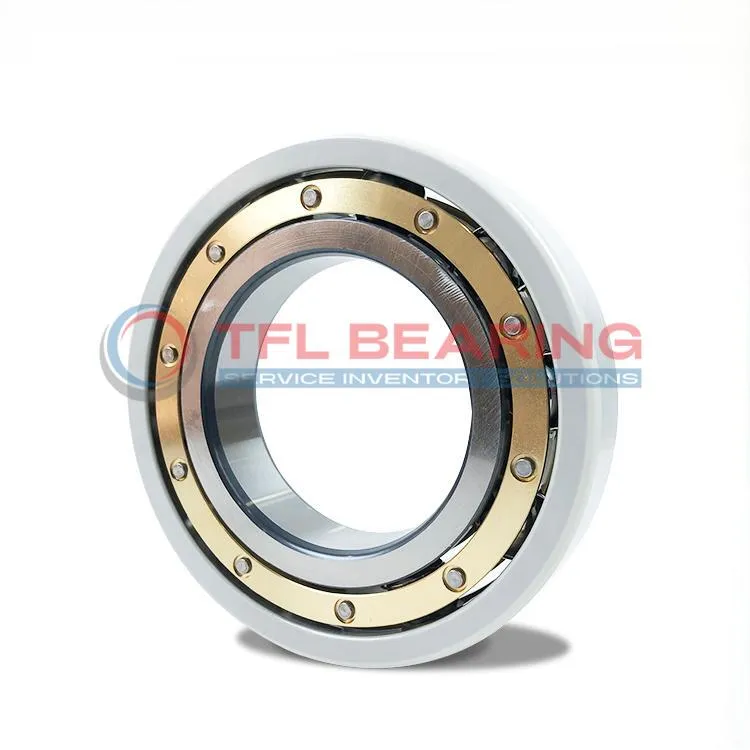

The FAG 6334-M-J20AA-C3 is a current-insulated bearing with a 170mm bore and 360mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating for insulation, with a breakdown voltage of up to 3000V.
This bearing supports dynamic loads up to 325kN and static loads up to 365kN, making it robust for heavy-duty applications. It operates smoothly at speeds up to 3200 RPM and has a C3 radial clearance for flexibility.
The brass cage ensures durability, while the ceramic coating provides reliable insulation even in damp conditions. It weighs 36.7kg, offering a sturdy build for industrial use.
Ideal for electric motors or generators, this bearing prevents current damage. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.
"*" indicates required fields
How Is 6334-M-J20AA-C3 Bearing Engineered for Reliability?
6334-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.
The brass cage ensures smooth operation and durability, even at high speeds up to 3,200 r/min.
With a basic dynamic load rating of 325.0 kN, it handles heavy loads reliably.
6334-M-J20AA-C3 Bearing’s C3 radial internal clearance allows for thermal expansion in demanding conditions.
Its breakdown voltage of ≤3000 V makes it suitable for applications with electrical interference.
The coating maintains high electrical resistance, even in damp environments (10MΩ).
This ensures consistent performance and longevity in various industrial settings.
Industrial Uses of 6334-M-J20AA-C3 Bearing
The 6334-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its ceramic-coated outer ring ensures reliable performance in high-voltage environments.
What Makes 6334-M-J20AA-C3 Bearing a Preferred Choice?
With a brass cage and C3 radial clearance, 6334-M-J20AA-C3 Bearing handles heavy loads and high speeds effortlessly. It’s a go-to solution for wind turbines and industrial drives.
Built for Heavy-Duty Use: 6334-M-J20AA-C3 Bearing
In conveyor systems and large pumps, 6334-M-J20AA-C3 Bearing’s robust design and insulating coating extend service life. The 360mm outer diameter provides stability under demanding conditions.
Automotive vs Aerospace: Applications of 6334-M-J20AA-C3 Bearing
While 6334-M-J20AA-C3 Bearing suits automotive test rigs, its breakdown voltage rating makes it ideal for aerospace ground power units. The 72mm width balances space and performance.
Perfect Fit for Automation: 6334-M-J20AA-C3 Bearing
In robotic assembly lines, 6334-M-J20AA-C3 Bearing’s dry resistance of 50MΩ prevents electrical arcing. The 170mm bore accommodates high-torque shafts seamlessly.
