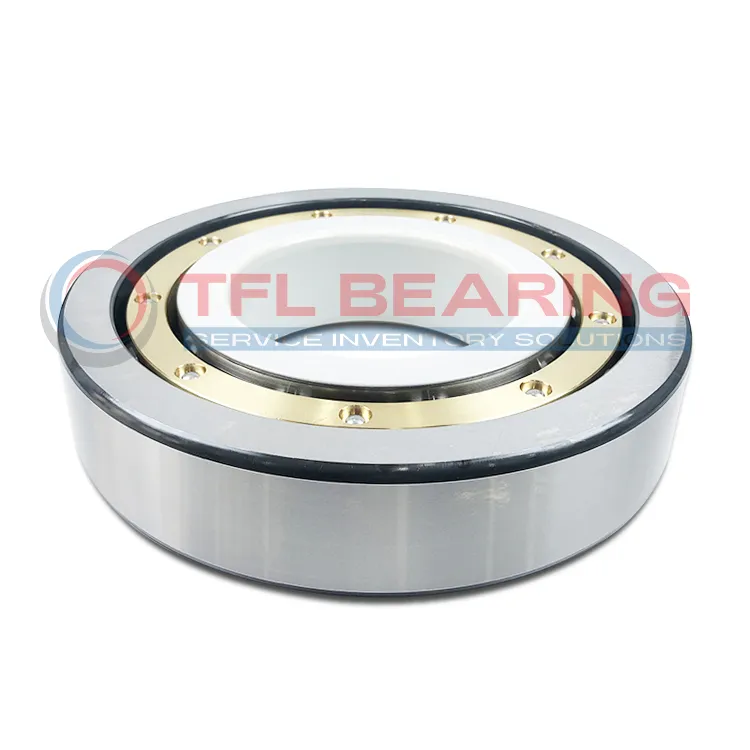

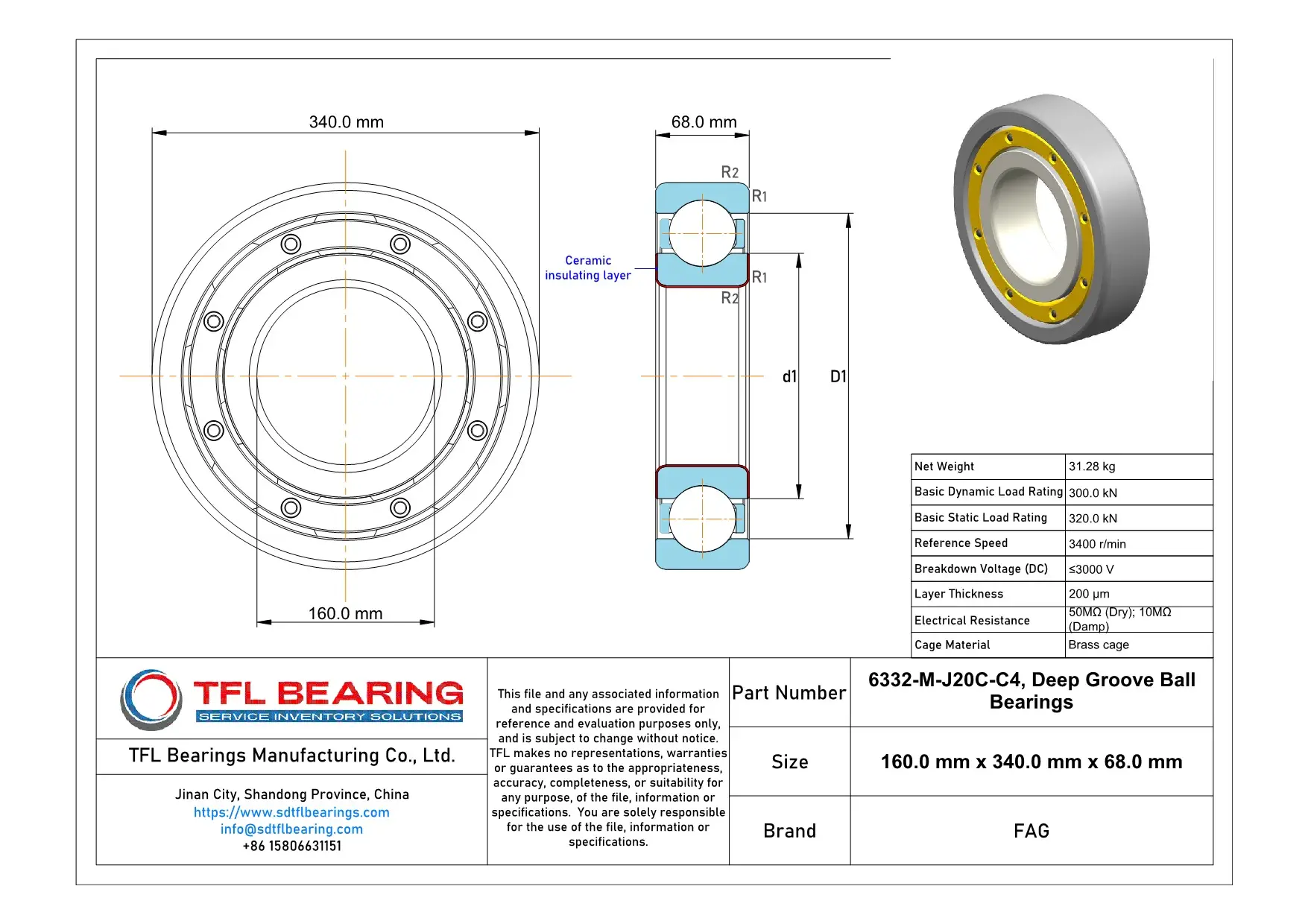

The FAG 6332-M-J20C-C4 is a current-insulated bearing with a 160mm bore and 340mm outer diameter, designed to prevent electrical damage. Its inner ring features a 200µm ceramic coating, offering high insulation resistance up to 50MΩ when dry.
This model handles dynamic loads up to 300kN and static loads of 320kN, with a reference speed of 3400 RPM. The brass cage ensures smooth operation and durability under heavy use.
The C4 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. Its breakdown voltage of 3000V protects against electrical currents in motors or generators.
Weighing 31.28kg, it’s robust for industrial applications like wind turbines or electric motors. Compliant with RoHS and REACH standards for safe and reliable performance.
"*" indicates required fields
How Is 6332-M-J20C-C4 Bearing Engineered for Reliability?
6332-M-J20C-C4 Bearing features an inner ring ceramic coating, providing excellent electrical insulation with a breakdown voltage of up to 3000 V.
Its brass cage ensures smooth operation and reduces friction, even at high speeds of 3400 r/min.
With a basic dynamic load rating of 300 kN, it handles heavy loads reliably.
The C4 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
What Makes 6332-M-J20C-C4 Bearing Suitable for High-Temperature Applications?
6332-M-J20C-C4 Bearing’s ceramic-coated inner ring resists electrical currents, preventing damage in high-temperature environments.
The brass cage maintains stability, even under heavy loads and rapid rotations.
Its layer thickness of 200 µm ensures consistent insulation, reducing the risk of electrical failures.
With a static load rating of 320 kN, it delivers dependable performance in demanding settings.
Built for Reliability: 6332-M-J20C-C4 Bearing
6332-M-J20C-C4 Bearing is designed with a ceramic-coated inner ring, offering high electrical resistance of 50MΩ when dry.
The brass cage enhances durability, ensuring smooth operation under heavy loads.
Its C4 clearance accommodates thermal expansion, making it versatile for industrial applications.
With a reference speed of 3400 r/min, it balances speed and stability effectively.
Steel vs Ceramic Bearings: Strengths of 6332-M-J20C-C4 Bearing
6332-M-J20C-C4 Bearing combines the strength of steel with the insulating properties of ceramic, preventing electrical arcing.
The brass cage reduces friction, extending the bearing’s service life in high-speed applications.
Its high dynamic load rating of 300 kN ensures reliable performance under stress.
The 200 µm ceramic coating provides consistent insulation, even in damp conditions.
Industrial Uses of 6332-M-J20C-C4 Bearing
6332-M-J20C-C4 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the inner ring ensures reliable performance in high-voltage environments.
What Makes 6332-M-J20C-C4 Bearing a Preferred Choice?
In wind turbines, 6332-M-J20C-C4 Bearing handles both radial and axial loads while resisting electrical erosion. Its brass cage and C4 clearance make it suitable for variable operating conditions.
Built for Heavy-Duty Use: 6332-M-J20C-C4 Bearing
For industrial pumps and compressors, 6332-M-J20C-C4 Bearing offers durability and electrical insulation. The 300 kN dynamic load rating ensures it can withstand demanding applications.
Medical vs Industrial: Where 6332-M-J20C-C4 Bearing Excels
While not typically used in medical devices, 6332-M-J20C-C4 Bearing shines in industrial settings like conveyor systems. Its 3400 r/min reference speed allows for efficient operation in fast-paced environments.
Perfect Fit for Automation: 6332-M-J20C-C4 Bearing
In automated machinery, 6332-M-J20C-C4 Bearing reduces downtime by preventing electrical arcing. The 200 µm insulating layer provides consistent protection even in damp conditions.
