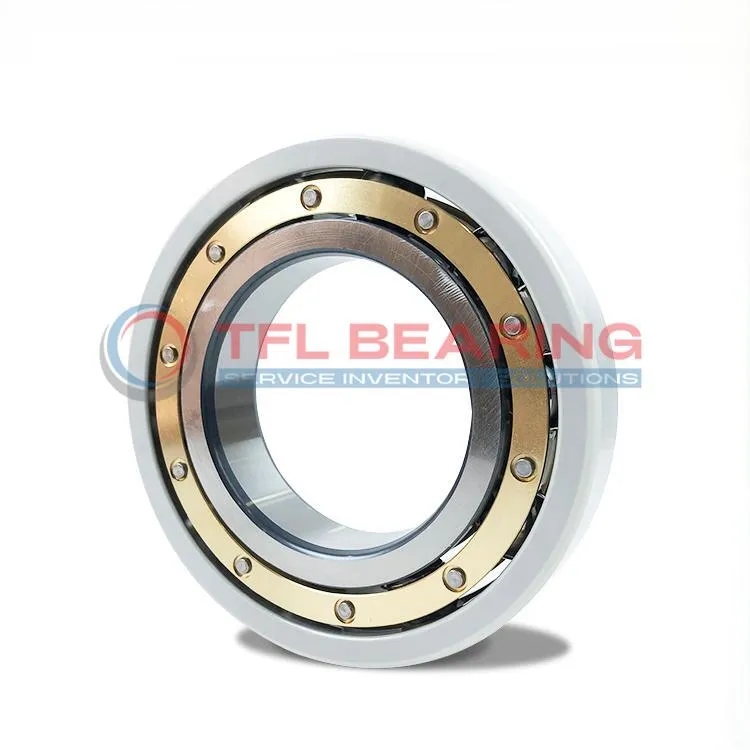

The FAG 6332-M-J20AA-C3 is a current-insulated bearing with dimensions of 160mm by 340mm by 68mm, featuring a ceramic-coated outer ring for electrical insulation. It handles dynamic loads up to 300 kN and static loads up to 320 kN, with a reference speed of 3400 RPM.
The brass cage ensures smooth operation, while the C3 radial clearance allows for thermal expansion in demanding conditions. Its insulating coating provides a breakdown voltage of up to 3000V, making it resistant to electrical currents.
This bearing is ideal for electric motors or generators where electrical insulation is crucial. It weighs 31.25kg and complies with RoHS and REACH standards for safe use.
The coating maintains high electrical resistance, even in damp conditions (10MΩ), ensuring reliable performance. Suitable for industrial applications requiring durability and electrical protection.
"*" indicates required fields
How Is 6332-M-J20AA-C3 Bearing Engineered for Reliability?
6332-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrical applications.
The brass cage ensures smooth operation and durability under high-speed conditions.
With a reference speed of 3400 r/min, it maintains performance in demanding environments.
6332-M-J20AA-C3 Bearing’s C3 radial internal clearance allows for thermal expansion.
This makes it suitable for applications with varying temperature conditions.
Its basic dynamic load rating of 300.0 kN ensures reliable performance under heavy loads.
The ceramic coating also offers high breakdown voltage, up to 3000 V.
Industrial Uses of 6332-M-J20AA-C3 Bearing
6332-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
What Makes 6332-M-J20AA-C3 Bearing a Preferred Choice?
With a brass cage and C3 radial clearance, 6332-M-J20AA-C3 Bearing handles heavy loads and high speeds effortlessly. It’s a go-to solution for industries requiring durable and electrically insulated components.
Built for Heavy-Duty Use: 6332-M-J20AA-C3 Bearing
In wind turbines and large industrial fans, 6332-M-J20AA-C3 Bearing’s robust design withstands constant motion and variable loads. The 3000V breakdown voltage makes it ideal for harsh electrical conditions.
Automotive vs Aerospace: Applications of 6332-M-J20AA-C3 Bearing
While 6332-M-J20AA-C3 Bearing suits automotive alternators, its precision also benefits aerospace systems like flight control actuators. The 3400 r/min reference speed ensures efficiency in both fields.
Perfect Fit for Automation: 6332-M-J20AA-C3 Bearing
6332-M-J20AA-C3 Bearing’s damp electrical resistance (10MΩ) makes it reliable in automated production lines. Its 68mm width fits snugly in compact machinery without compromising performance.
