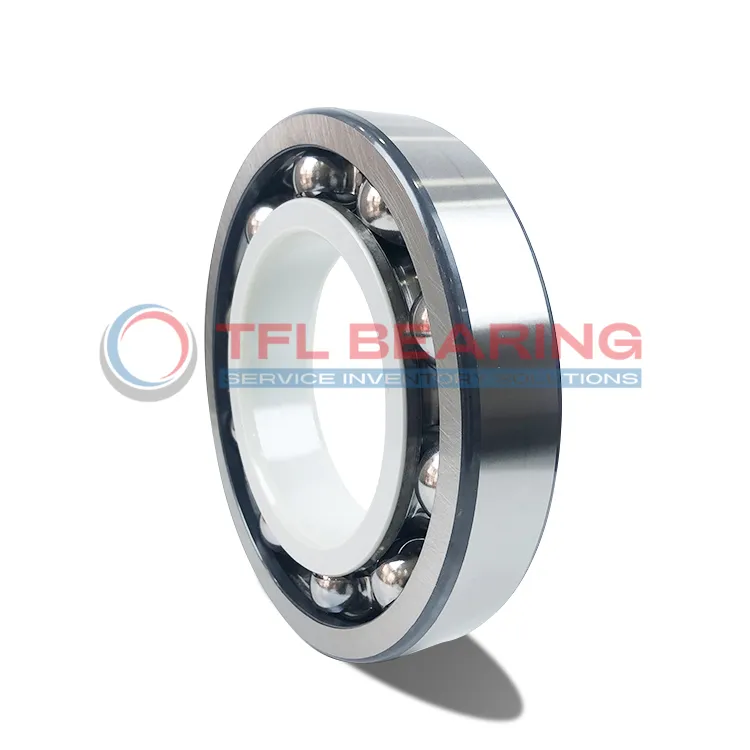

The FAG 6328-J20C-C3 is a current-insulated bearing with a 140mm bore and 300mm outer diameter, designed to handle electrical currents. Its inner ring features a ceramic coating, providing insulation up to 3000V.
This model supports dynamic loads up to 270kN and static loads of 246kN, making it suitable for heavy-duty applications. It operates smoothly at speeds up to 2950 RPM.
The sheet metal cage ensures durability, while the C3 radial clearance allows for thermal expansion. The coating maintains high electrical resistance, even in damp conditions (10MΩ).
Ideal for electric motors or generators, this bearing prevents current damage. Compliant with RoHS and REACH standards, it weighs 18.6kg for easy handling.
"*" indicates required fields
How Is 6328-J20C-C3 Bearing Engineered for Reliability?
6328-J20C-C3 Bearing features an inner ring ceramic coating, providing excellent insulation against electrical currents.
The coating ensures a breakdown voltage of up to 3000 V, making it suitable for high-voltage environments.
With a basic dynamic load rating of 270 kN, 6328-J20C-C3 Bearing handles heavy loads effortlessly.
Its C3 radial internal clearance allows for thermal expansion, ensuring stable performance.
The sheet metal cage maintains ball alignment, reducing friction and wear.
6328-J20C-C3 Bearing operates smoothly at reference speeds up to 2950 r/min.
Designed for damp conditions, 6328-J20C-C3 Bearing maintains an electrical resistance of 10MΩ.
This ensures reliable operation even in challenging environments.
Industrial Uses of 6328-J20C-C3 Bearing
The 6328-J20C-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its ceramic-coated inner ring ensures reliable performance in high-voltage environments.
What Makes 6328-J20C-C3 Bearing a Preferred Choice?
With a dynamic load rating of 270 kN, 6328-J20C-C3 Bearing handles heavy loads in industrial gearboxes and pumps. The C3 clearance allows for thermal expansion, making it suitable for high-speed applications.
Built for Heavy-Duty Use: 6328-J20C-C3 Bearing
In wind turbines, 6328-J20C-C3 Bearing’s insulating coating protects against electrical erosion, extending service life. The sheet metal cage provides durability while maintaining smooth rotation.
Automotive vs Aerospace: Applications of 6328-J20C-C3 Bearing
In automotive alternators, 6328-J20C-C3 Bearing resists electrical currents that can cause premature wear. For aerospace applications, its high-speed capability and insulation make it ideal for auxiliary power units.
Perfect Fit for Automation: 6328-J20C-C3 Bearing
The 6328-J20C-C3 Bearing is often found in robotic arms and CNC machines, where precision and electrical insulation are key. Its damp-resistant coating ensures consistent performance even in humid conditions.
